Upgraded 12V 165Ah Dual-Purpose Starting Battery — Coming in February. Stay tuned!
Marine starting plus deep cycle performance (1000 CCA and 1200 MCA), born for fuel-powered marine outboard motor.
[A Game-changing Upgrade with Newly Power Reserve Mode, Refines Your Marine Experience!]
Designed for Starting Outboard Motors and Fits Most Brands

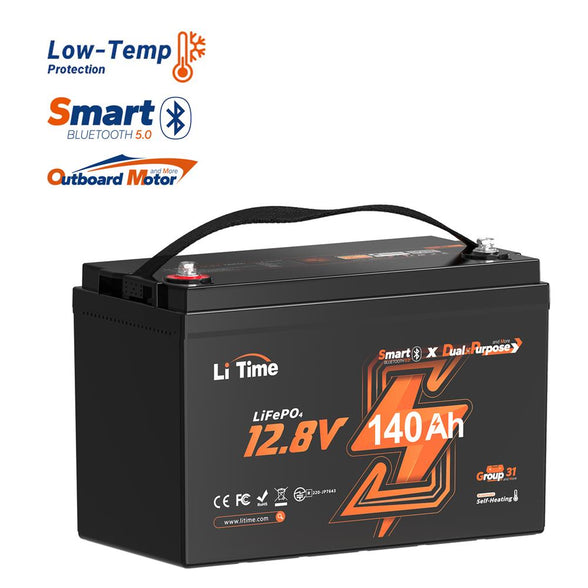

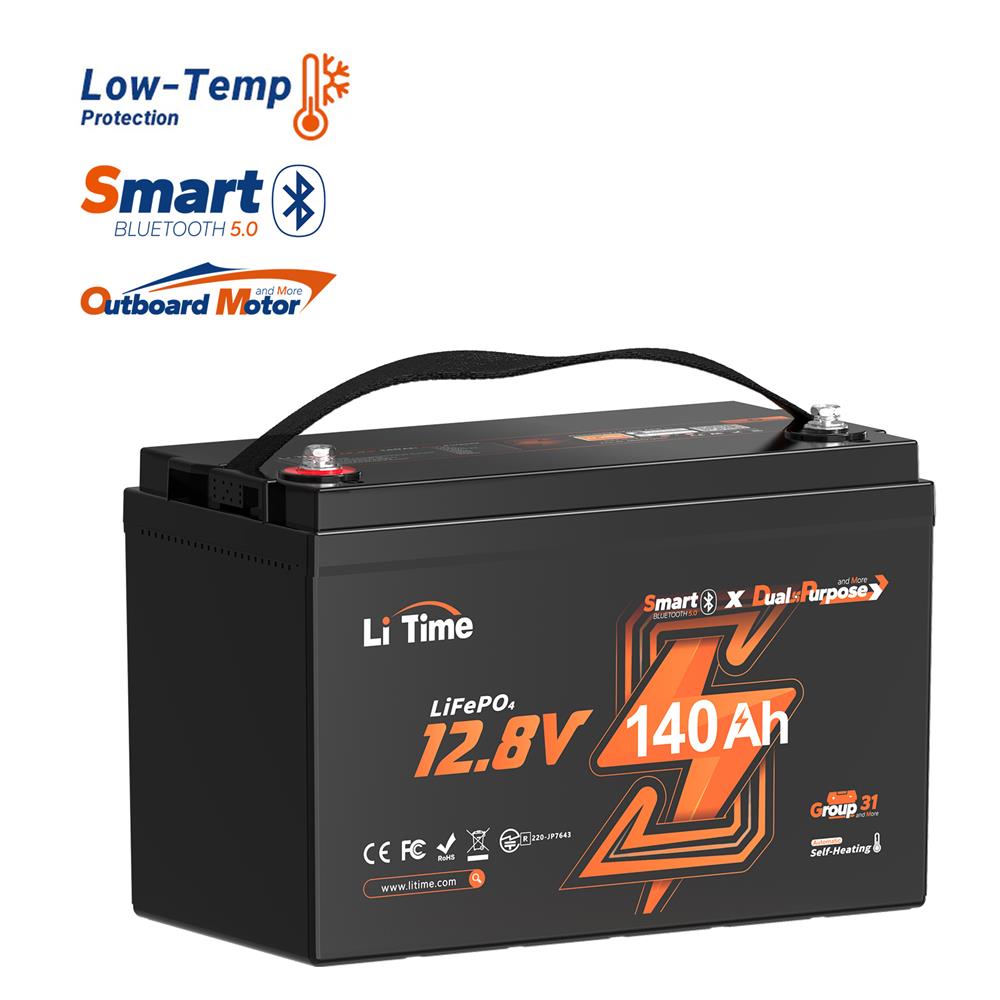

The LiTime 12V 140Ah marine starting battery is crafted to replace lead-acid starting batteries with ≤1000 CCA . It fits most outboard motor brands, including Yamaha, Mercury, Honda, Suzuki, Evinrude, and Tohatsu. Before purchasing, ensure your current starting battery's CCA is ≤1000A. It is recommended to refer to these values depending on your specific application scenario. If you're unsure whether this battery is suitable for your outboard motor, please provide the required CCA and MCA and outboard alternator charging current so we can confirm compatibility.
LiTime Dual-Purpose Marine Starting Battery – Now with Deep Cycle Performance

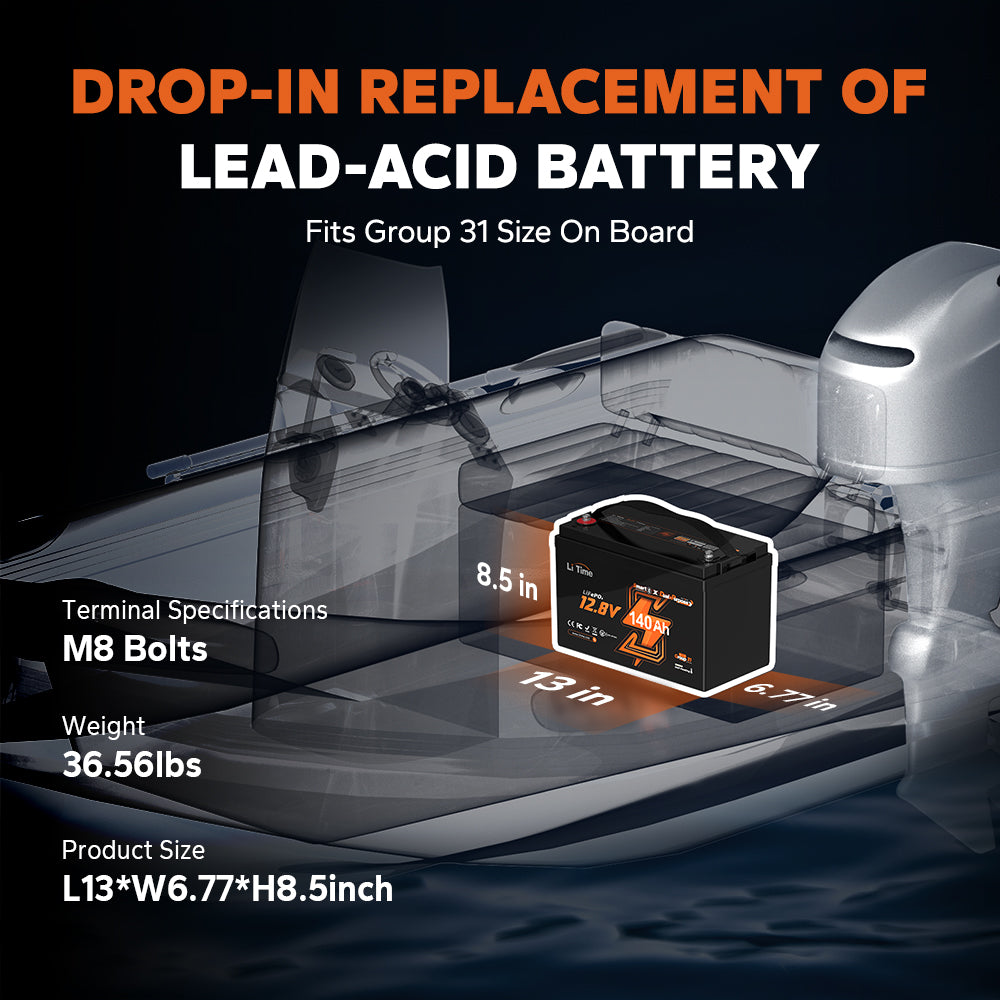

The LiTime 12V 140Ah marine battery is designed for Australian boaters, delivering superior performance over traditional AGM batteries. Built for both starting and deep cycle use, it offers advanced features like Bluetooth 5.0 for real-time monitoring, a self-heating function for reliable charging in cold weather, a 140A BMS for stable operation, and an IP67 waterproof and dustproof rating for beating hardest environment. Its Group 31 size allows for easy replacement of lead-acid batteries, making it a smart and durable choice for those seeking power and reliability on the water.
Newly Power Reserve, Never Run out When Needed
The upgraded power reserve mode is a great important guarantee for worry-free outdoor boating. When the voltage drops below the set value, LiTime 12V 140Ah lithium cranking battery for boat will automatically cut off the discharge. No worry about starting the outboard motor with depleted power, due to forgetting about long-time powering for loads. You can restart the discharge or control the power reserve mode via LiTime APP!

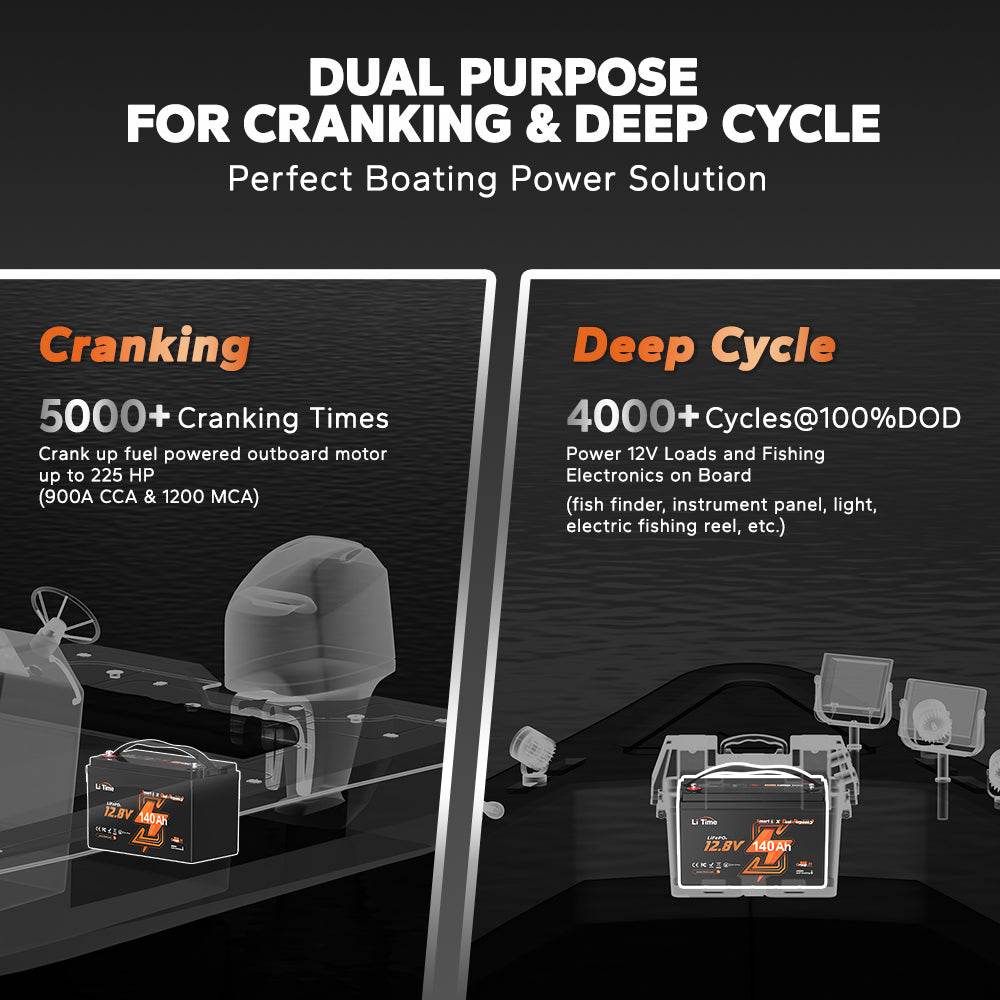

Dual Purpose for Cranking, Deep Cycle and More
With 1200 MCA and a high 140A continuous discharge current, the LiTime 1000 CCA dual purpose lithium crank battery is built to crank fuel-powered outboard motors with over 5000+ reliable starts. It powers both outboards and onboard electronics like electric fishing reels, fish finders, instrument panels, and lights simultaneously. Delivering 4000+ cycles under recommended conditions—far exceeding the maximum 500-cycle lifespan of standard AGM batteries—it offers long-lasting performance at a lower cost per use.
Bluetooth 5.0 Offers Smarter & More Connected Boating Experience
The advanced Bluetooth5.0 offers: auto-connection, smart discharging control, real-time battery monitoring, battery system checking. Stay informed and in control, ensuring your adventures are powered smoothly and efficiently.

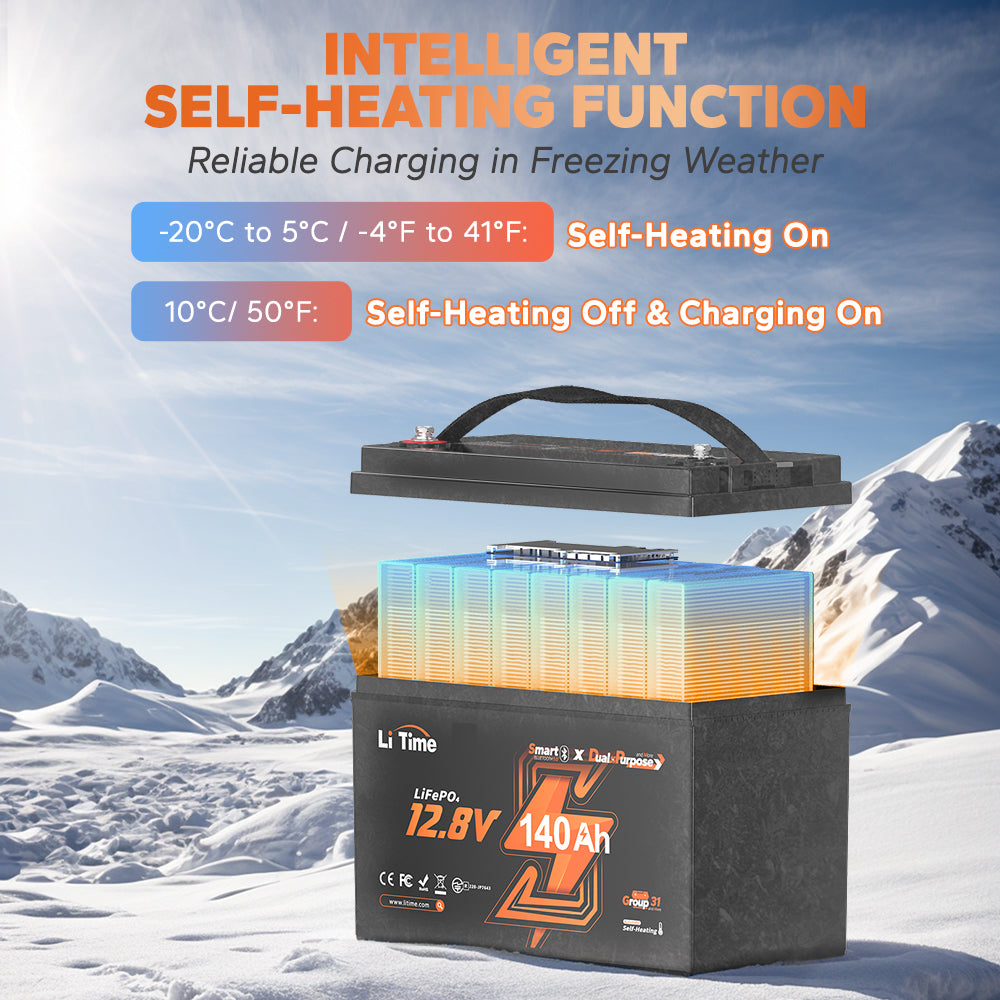

Reliable Charging in Australia's Coldest Conditions
Designed to perform even in Australia’s cooler climates, the self-heating function ensures efficient charging when temperatures drop. When charging in cooler conditions, the power supply first activates the internal battery heating pad, warming the battery until it reaches 10°C (50°F), at which point heating automatically stops, and charging begins. The BMS-controlled self-heating function operates when charging between -20°C to 5°C (-4°F to 41°F), ensuring reliable charging and stable power backup in cold conditions. It efficiently brings the battery to the optimal temperature within 40-70 minutes from -10°C (14°F) and 80-120 minutes from -20°C (-4°F), providing consistent performance even in low-temperature environments.

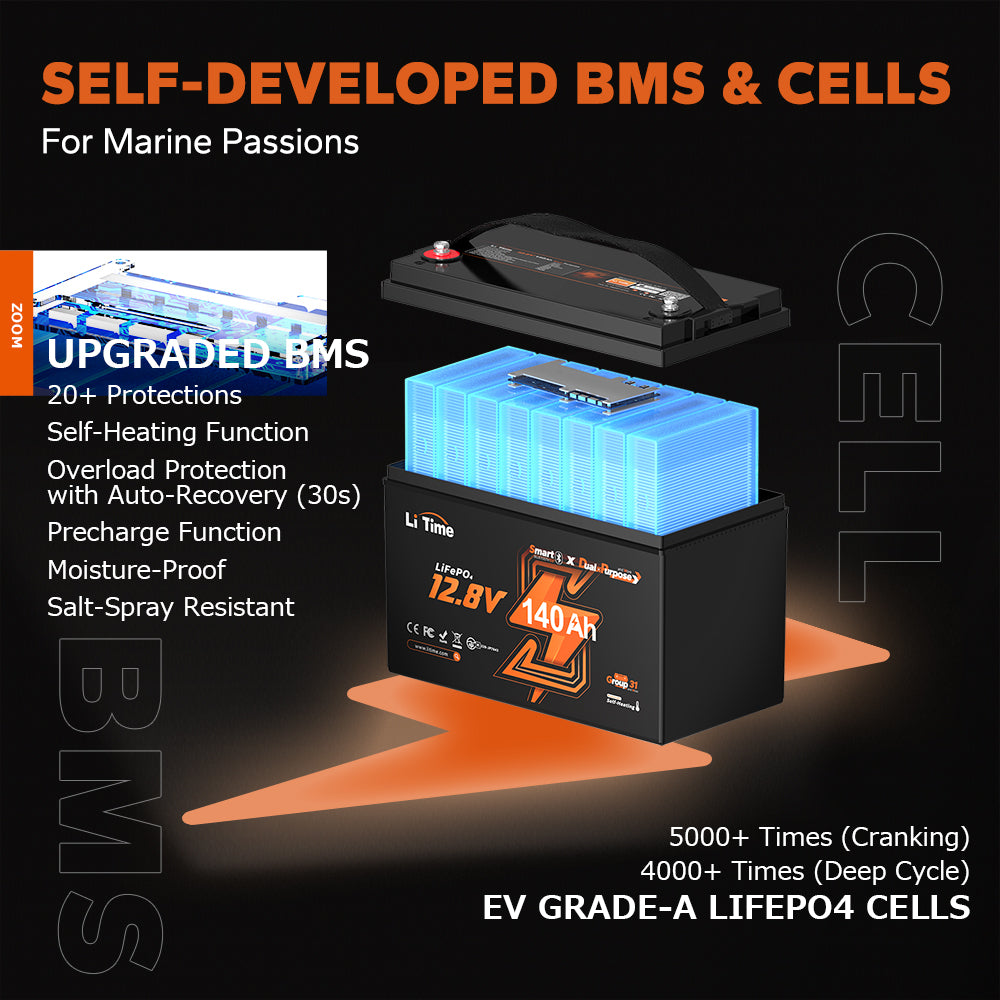

Self-Developed BMS & EV-Grade LiFePO4 Cells for Marine Power
LiTime’s advanced BMS and EV-Grade LiFePO4 starting cells provide exceptional reliability for marine applications. Designed for peak performance, the upgraded BMS features 20+ protective functions, ensuring maximum safety and durability. The EV-Grade cells enhance longevity, efficiency, and power output, making them the ideal choice for marine starting and deep-cycle needs.
Superior Replacement for 1000 CCA Lead-Acid Battery
The LiTime 12V 140Ah Marine Battery is a game-changer for boaters, offering 42% less weight at just 36.56 lbs compared to a traditional 12V 100Ah lead-acid battery. Enjoy a 3.3X longer lifespan of up to 10 years and 3X more energy at 1792Wh. With the same 1000 CCA (-10°C) and 1200 MCA rating, it delivers superior performance and efficiency, making it the ideal upgrade for marine applications.
Versatile & Efficient Charging Options
Designed for convenience and flexibility, the LiTime 12V 140Ah dual-purpose marine battery supports four charging methods: LiFePO4 battery charger, Outboard alternator, Generator, Solar panel.
Reliable Cranking Even in Extreme Conditions
Tested by LiTime Lab, our 12V 140Ah marine lithium starting battery delivers 1000A CCA and 1200A MCA, ensuring powerful and reliable starts in all conditions. Engineered to perform in extreme temperatures, it provides consistent power for smooth operation, making it the ideal choice for demanding marine environments.
Compatible with Top Outboard Motor Brands
LiTime 12V 140Ah marine starting lithium battery is designed to power the most popular outboard motor brands, including Evinrude, Mercury, Suzuki, Yamaha, etc.
Built for the Open Water: Beyond ABYC Standards
LiTime prioritizes safety and reliability, exceeding ABYC certification requirements to provide trusted power solutions for boaters. Whether you're navigating calm waters or challenging conditions, this battery offers long-lasting performance, peace of mind, and industry-leading innovation—ensuring your marine power is always secure.
No, this battery should not be used as a lithium cranking battery for 4WD/4×4 cars, motorcycles, tractors, or any other vehicles. It is specifically designed for marine applications, including fuel-powered outboard motors.
To ensure the best use of your battery, keep the following in mind:
● Cranking Battery – Designed for engine ignition, providing high Cold Cranking Amps (CCA) for a quick, powerful burst of energy to start fuel-powered motors. Not ideal for sustained power supply.
● Deep Cycle Battery – Built for long-term power supply, capable of deep discharge cycles but lacks the high cranking power needed to start an engine.
● Dual-Purpose Battery – A versatile option that combines both starting and deep cycle functions, making it suitable for boats requiring both engine ignition and power for onboard electronics as a dual battery system.
CCA (Cold Cranking Amps) and MCA (Marine Cranking Amps) are key indicators of a battery’s starting power.
● CCA (Cold Cranking Amps): Measures the current (in amps) a battery can provide for 30 seconds at -18°C (0°F) while maintaining a voltage of at least 7.2V. It is mainly used for vehicles operating in cold environments.
● MCA (Marine Cranking Amps): Similar to CCA, but measured at 0°C (32°F) instead. The test conditions are the same—sustaining the current for 30 seconds while keeping the voltage above 7.2V. MCA is specifically used for marine applications.
The only difference between CCA and MCA is the testing temperature. Both ratings help determine a battery’s ability to start an engine under different weather conditions.
LiTime's 12V 140Ah dual-purpose battery is tested at different temperatures and provides four cranking current values:
● CCA (-18°C)
● CCA (-10°C)
● MCA (0°C)
● HCA (25°C)
These values indicate the battery’s cranking performance at various ambient temperatures. LiTime defines these ratings based on the highest current the battery can sustain for 1 second at each temperature without triggering its built-in protection system.
Through extensive research on engine starting requirements, we found that in real-world applications, an engine typically requires a cranking current for only milliseconds. By testing at 1-second duration, we ensure the battery has ample power reserves, guaranteeing reliable engine starts.
Yes, but there are limitations based on the intended use:
1. For Starting & Deep Cycle Applications:
a. Supports up to 4 identical batteries connected in parallel.
b. Maximum configuration: 12V (12.8V) 560Ah battery system.
c. ⚠️ Only parallel connections are supported; series connections are not allowed.
2. For Energy Storage Applications:
a. Supports up to 16 identical batteriesin the following configurations:
i. 4 in series for a 48V (51.2V) system
ii. 4 in parallel for a 560Ah system
Before connecting batteries, ensure the following:
● They must be identical models with the same capacity (Ah) and BMS specifications (A).
● All batteries should be from the same brand to ensure BMS compatibility.
● Batteries should be purchased within the same period (within one month) for consistent performance.
Since batteries may arrive with a low State of Charge (SOC) due to shipping and storage, follow these steps:
1. Charge the battery immediately to prevent over-discharge and ensure optimal performance.
2. Use a LiFePO4 battery charger to fully charge the battery before first use.
3. Ensure the battery voltage is above 11.5V before attempting to start a motor.
4. Monitor via Bluetooth: The built-in Bluetooth function allows you to track the battery’s voltage and capacity when under load for an extended period. Ensure the voltage does not drop below 11.5V.
5. Starting Guidelines:Do not crank the motor for more than 3 seconds per attempt.
a. If the first attempt fails, wait 15 seconds before trying again.
b. If the motor fails after 3 attempts, inspect the system and wait 5 minutes before trying again.
🔹 For Bluetooth models:
Some batteries may arrive in anoff state, showing a virtual voltage of 3V-5V. This is normal. To activate:
● Use an AC-DC LiFePO4 charger or MPPT solar charge controller to charge for 3-10 seconds. This will wake the battery for normal operation.
🔹 For long-term storage:
● Charge the battery to 50% SOC before storage.
● Perform a maintenance charge every 3 months to preserve battery life.
There are four recommended charging methods:
● Recommended Solar Power: 600W or higher
○ A 600W solar panel can fully charge the battery in a single day under optimal sunlight conditions (approx. 4.5 hours of effective sunlight).
○ Charging may take longer in areas with less sunlight.
● Recommended Charging Current:
○ 28A (0.2C) → Fully charges in ~5 hours
○ 70A (0.5C) → Fully charges in ~2 hours
● Charging Mode: Set to 12V (14.6V) LI (LiFePO4) mode.
● Use a marine battery charger to optimize charging efficiency.
● Recommended Charging Voltage: 14.2V - 14.6V
● Recommended Charging Current:
○ 28A (0.2C) → Fully charges in ~5 hours
○ 70A (0.5C) → Fully charges in ~2 hours
● Best Practice: Disconnect the charger once charging is complete to prevent overcharging.
● Requires a DC-DC charger to regulate voltage and prevent overcharging.
● Charging Voltage: 14.2V - 14.6V
● Charging Current:
○ 28A (0.2C) → Full charge in ~5 hours
○ 70A (0.5C) → Full charge in ~2 hours
● Use an AC-DC LiFePO4 charger for safe and efficient charging.
● Charging Voltage: 14.2V - 14.6V
● Charging Current:
○ 28A (0.2C) → Full charge in ~5 hours
○ 70A (0.5C) → Full charge in ~2 hours
By following four guidelines, Australian users can maximise the performance, safety, and lifespan of their LiTime 12V 140Ah Dual-Purpose Marine Battery. Learn more about how to charge lithium ion battery.🚤🔋
No, you don’t need an additional Bluetooth battery monitor. The LiTime 12V 140Ah Dual-Purpose Marine Battery comes with a built-in Bluetooth 5.0 monitoring system, allowing you to check the real-time status of your battery directly from your smartphone via the LiTime app.
