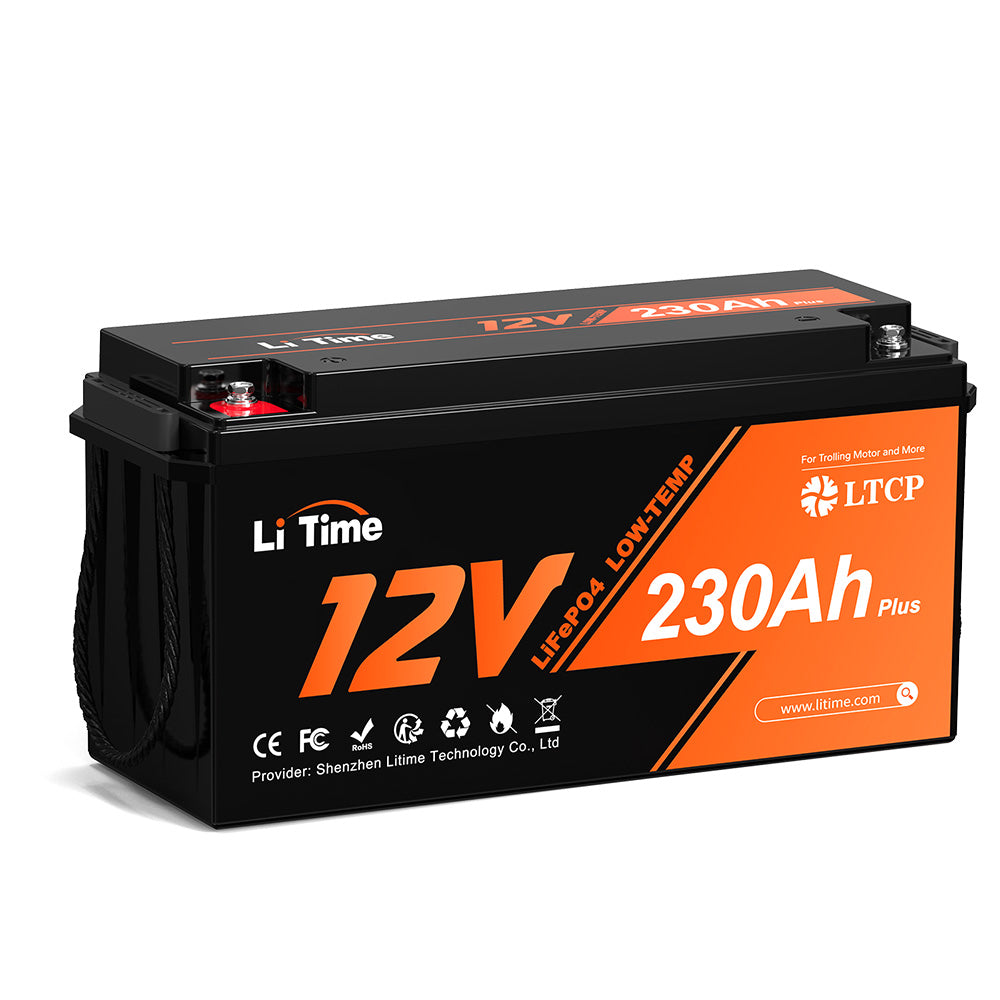

LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU

1 / 0

Features

IP-65 Waterproof

Low-temp

LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection

Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?

A:Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 ways to charge the battery.1. Using Solar PanelsThe LiTime 12V 230Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.2. Generator/AlternatorIf the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.The Recommended Charging Voltage: 14.2V - 14.6V.The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.3. LiFePO4 Smart ChargersTo charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V.The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?

A$849.99

A$1,122.99

24% OFF

Ideal for marine, RVs, UPS, and backup power.

Low-temp protection, 0°C/32°F charging off, -20°C/-4°F discharging off, and 5 °C/41℉ charging resume.

200A BMS, with 200A max. continuous discharge current.

20+ Upgraded protections, with auto-recovery(30s) after overload protection, resistance of moisture & salt-spray, pre-charge function.

EV-graded LiFePO4 cells, 4000+ cycles@100% DOD, 10 years lifespan, non-toxic.

2944Wh & 2560W, enough to power approx. 3kWh of daily home/off-grid or use of RV/fishing/camping.

Max. 4P4S, up to a 51.2V 920Ah battery system (47.10kWh & 40.96kW).

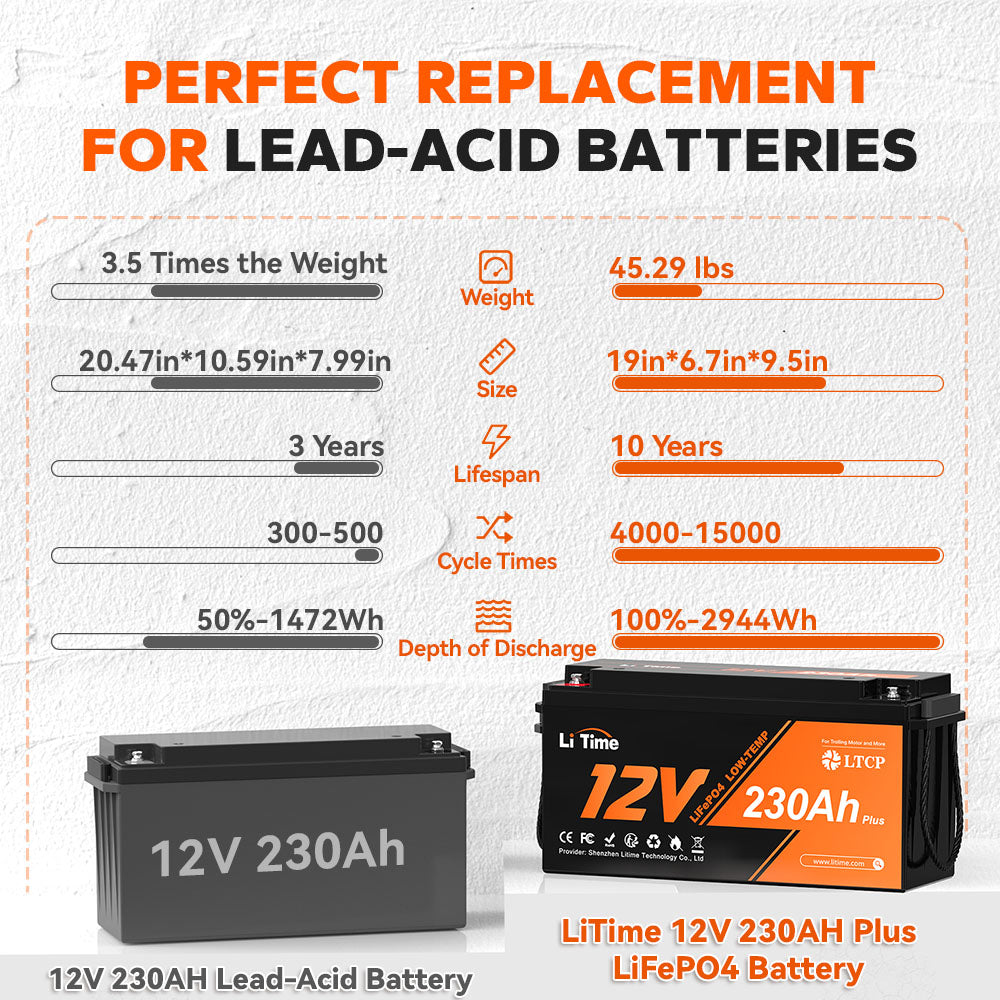

6X energy density (65Wh/lbs) & 65% lighter than a 12V 200Ah lead-acid battery.

4 Charging ways-LiFePO4 Charger, solar panel, alternator, generator.

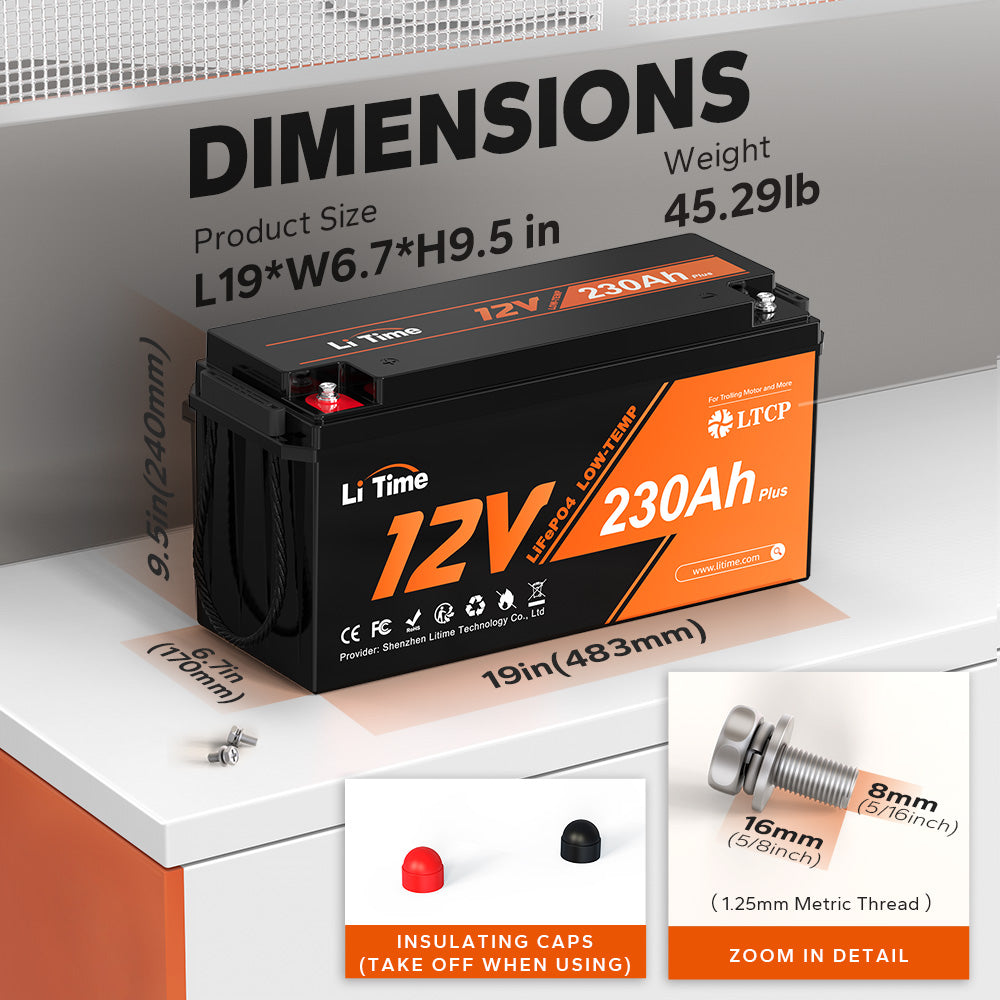

Size: L48.3*W17.02*H24.1 cm.

UL-1973 tested, FCC, CE, RoHS, UN38.3 certified.

Meets ABYC E-13 Standard: LiTime batteries are installed to ABYC E-13 standards, fully compliant with lithium battery requirements.
DO NOT use as Starter Battery. If you need a starting battery.

Please do not orient the battery on top or front side downward. Other orientations are permissible.

Choose Products

Comparison

1 Pack

A$849.99 A$1,122.99

2 Pack

A$1,682.98 A$2,245.99

3 Pack

A$2,524.47 A$3,368.97

4 Pack

A$3,331.96 A$4,491.99

Quantity:

A$849.99

A$1,122.99

24% OFF

Add to Cart

5 Years Warranty

Backed up by techical support within 24hrs

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

12V 230Ah

A$849.99

A$1,122.99

[{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286472420,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_acb81dc3-c0c5-4409-86eb-498968ffb04e.jpg?v=1731399239"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_acb81dc3-c0c5-4409-86eb-498968ffb04e.jpg?v=1731399239","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286439652,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_f2ecaa3d-31ee-4cf4-9504-2668d29a6864.jpg?v=1731399239"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_f2ecaa3d-31ee-4cf4-9504-2668d29a6864.jpg?v=1731399239","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286144740,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_2_a58477dd-8210-4930-b2d5-e559a7924fe2.jpg?v=1731399240"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_2_a58477dd-8210-4930-b2d5-e559a7924fe2.jpg?v=1731399240","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286177508,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_2-1.jpg?v=1731399239"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_2-1.jpg?v=1731399239","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286210276,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3.jpg?v=1731399239"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3.jpg?v=1731399239","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286243044,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3-1.jpg?v=1731399240"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3-1.jpg?v=1731399240","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286275812,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3-2.jpg?v=1731399240"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3-2.jpg?v=1731399240","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286308580,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3-3.jpg?v=1731399239"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_3-3.jpg?v=1731399239","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286374116,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_4-1.jpg?v=1731399240"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_4-1.jpg?v=1731399240","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection - Litime-AU","id":63252286406884,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1_4-2.jpg?v=1731399240"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1_4-2.jpg?v=1731399240","width":1000}]

FEATURES SPECS FAQ REVIEWS

Upgraded Low-Temperature Cut-Off Protection

Maximize your battery life and charging efficiency with the low-temperature cut-off protection - keeping you safe and powered up even in the coldest conditions. LiTime 12V 230Ah low-temp cut-off protection battery can cut charging when it is below 0°C/32°F and disconnect loads when it is below -20°C/-4°F to extend our battery life. While other batteries struggle in chilly conditions, suffering capacity loss or going into hibernation, our advanced technology safeguards your charge and discharging.

Ultra-Long Battery Lifespan

Most lead-acid batteries are only 2~3 years lifespan. But the LiTime LiFePO4 battery is built to stand the test of time. Boasting a stunning 4000+ cycles@100% DOD, the LiTime lithium battery leads the industry in sheer longevity. That allows you to power your home or cabin for over a decade. Experience peace of mind with EV Grade-A LiFePO4 battery cells, which are free from mercury, lead, and other toxic substances. IP65 waterproof level protect against water and dust.

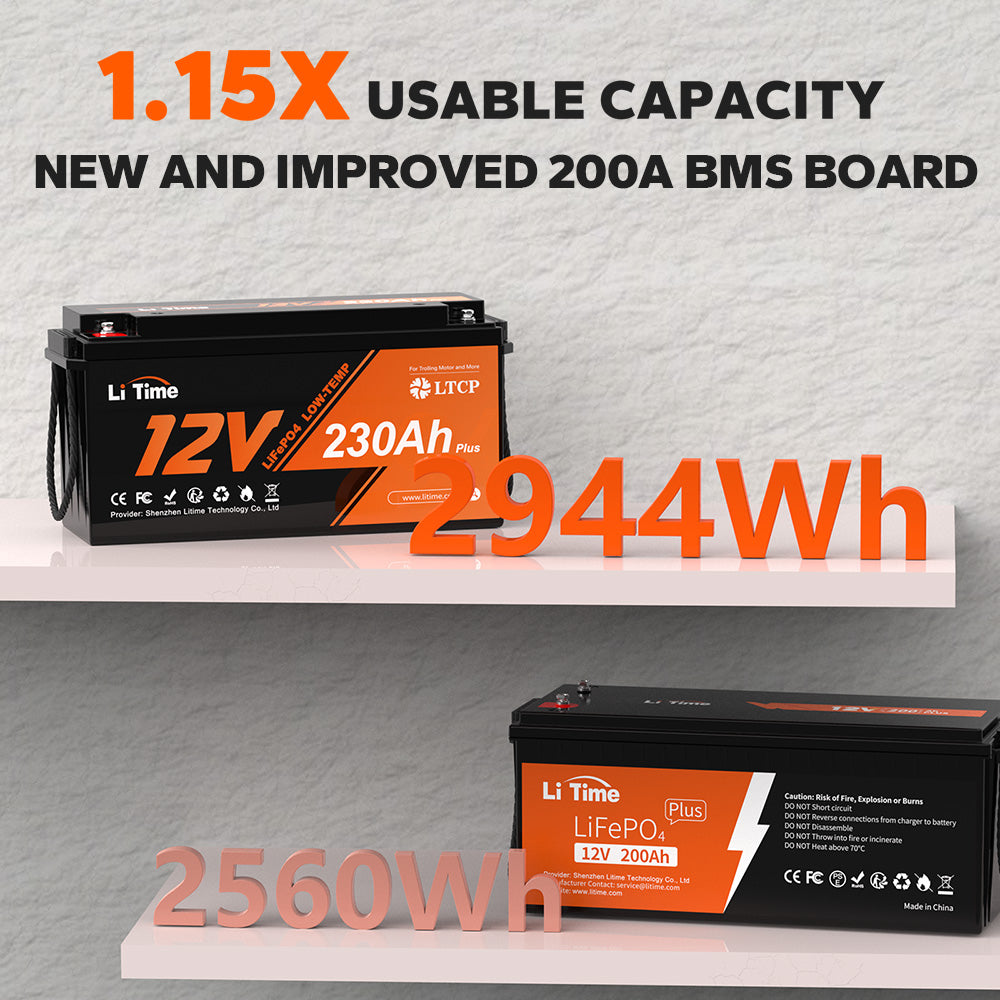

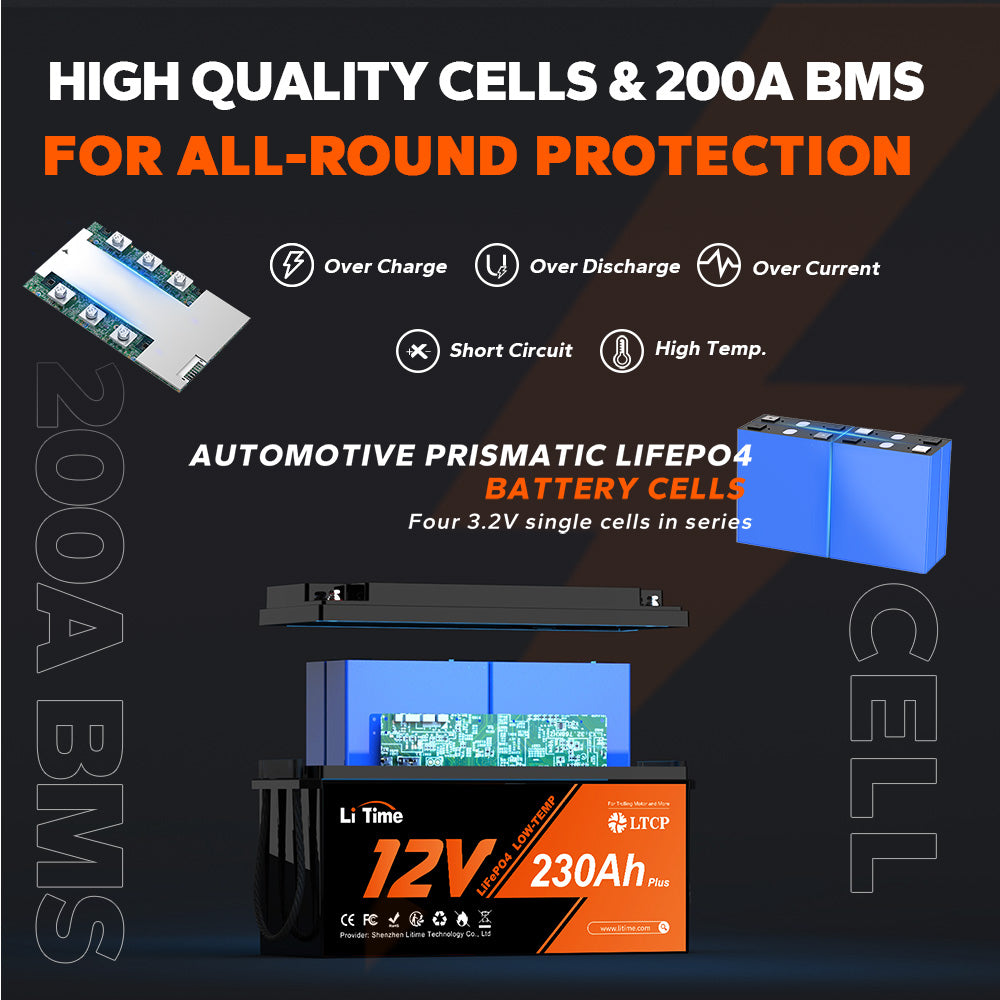

All-Round Upgraded BMS

The upgraded 12V 230Ah LiFePO4 deep cycle battery is designed for harsh environments such as rainy, coastal areas, or dusty and wet conditions, and offers worry-free and long-lasting performance with a reduced risk of damage and an extended lifespan. Our upgraded BMS secures your battery from over-charging, over-discharging, and short-circuiting, ensuring a safer and more reliable battery. You can reduce the cost of replacing vulnerable batteries.

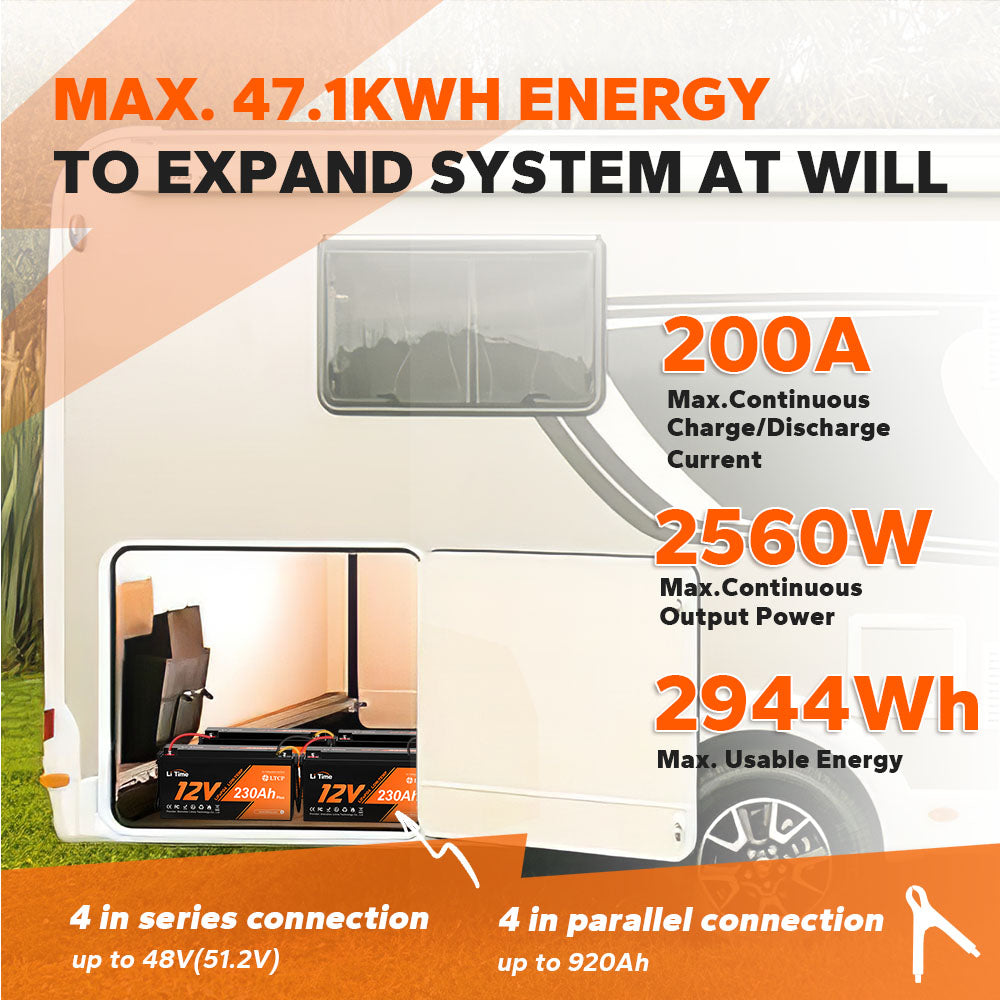

Unlock Limitless Power with 47.104kWh of Energy

Experience unparalleled versatility with the LiTime 12V 230Ah low-temp protection lithium batteries. Combine up to 16 units with a 4P4S configuration to establish a formidable 51.2V 920Ah system, boasting a staggering 47.104kWh of green energy. Tailor your energy solution to suit your needs, whether it's for residential, marine, RVs, trolling motors, off-grid, or any scenario demanding extended runtime capabilities or in any cold conditions. With LiTime, the possibilities are endless.

3 Ways to Recharge

The LiTime 12V 230Ah low-temp cut-off protection lithium battery outperforms lead-acid batteries with its faster charging efficiency. Moreover, there are 3 versatile charging options: LiFePO4 chargers, solar panels and generators. It takes about 5.75 hours to fully charge the battery with a 14.6V 40A LiFePO4 charger, enabling you to swiftly recharge the battery for a better user experience.

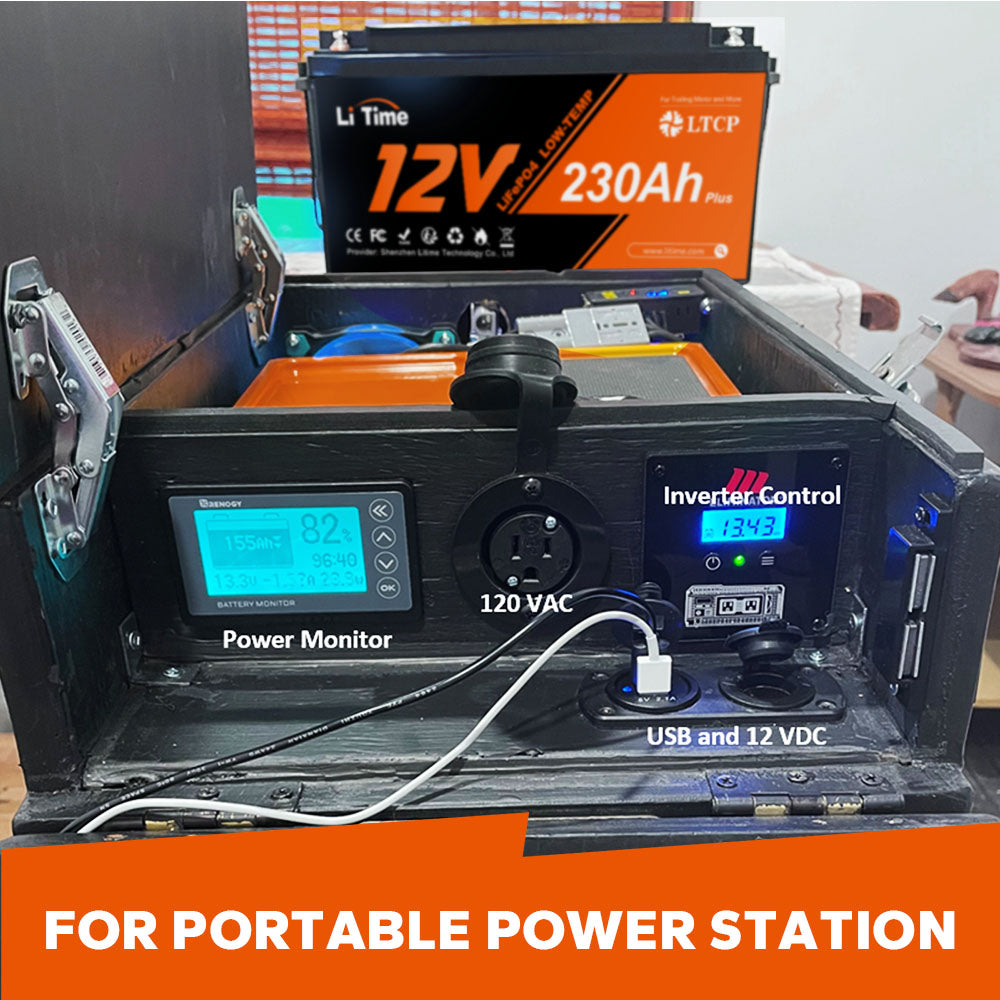

Conquer Every Scenario with Ease

Versatility meets reliability with this battery. LiTime 12V 230Ah low-temp cut-off protection lithium battery is perfect for many applications, including trolling motors, home energy storage, solar power systems, caravans, and outdoor adventures. Its lightweight and compact design allows for effortless portability

Outstanding Service

Professional technical support, customer service, easy-to-understand operation manuals, phone support, and 24-hour quick online feedback are provided.

SPECS

BATTERY

Cell Type：

LiFePO4 Prismatic

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

12.8V

Rated Capacity：

230Ah

Energy：

2944Wh

Max. Expansion (Parallel & Series)：

4P4S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

200A

Max. Continuous Output Power：

2560W

Max. Continuous Charge Current：

200A

Max. Continuous Discharge Current：

200A

Max. Discharge Current 5 Seconds：

600A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

14.4V ± 0.2V

Recommend Charge Current：

46A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

Low-Temperature Protection：

Yes (32℉/0℃)

Low-Temperature Charging Protection Auto Recovery：

Yes (41℉/5℃)

OTHERS

Terminals：

M8 bolts

Weight Approx.：

20.5Kg

Size：

L48.3*W17.02*H24.1 cm

Housing Material：

ABS

Protection Class：

IP65

FAQ

Can I use LiTime LiFePO4 lithium batteries as starting batteries?

No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. Learn more about Deep Cycle VS Starting Batteries.

Are LiTime LiFePO4 lithium batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

Can I charge LiTime LiFePO4 lithium batteries with solar panels?

A:

Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 ways to charge the battery.

1. Using Solar Panels

The LiTime 12V 230Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.

The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?

Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime 12V 230Ah LiFePO4 batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

How do I store LiTime LiFePO4 lithium batteries?

It is recommended to store LiFePO4 lithium batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: -10℃ to 50℃/14℉ to 122℉，45%RH～75％RH

In what applications can I use 12V 230Ah LiFePO4 lithium battery?

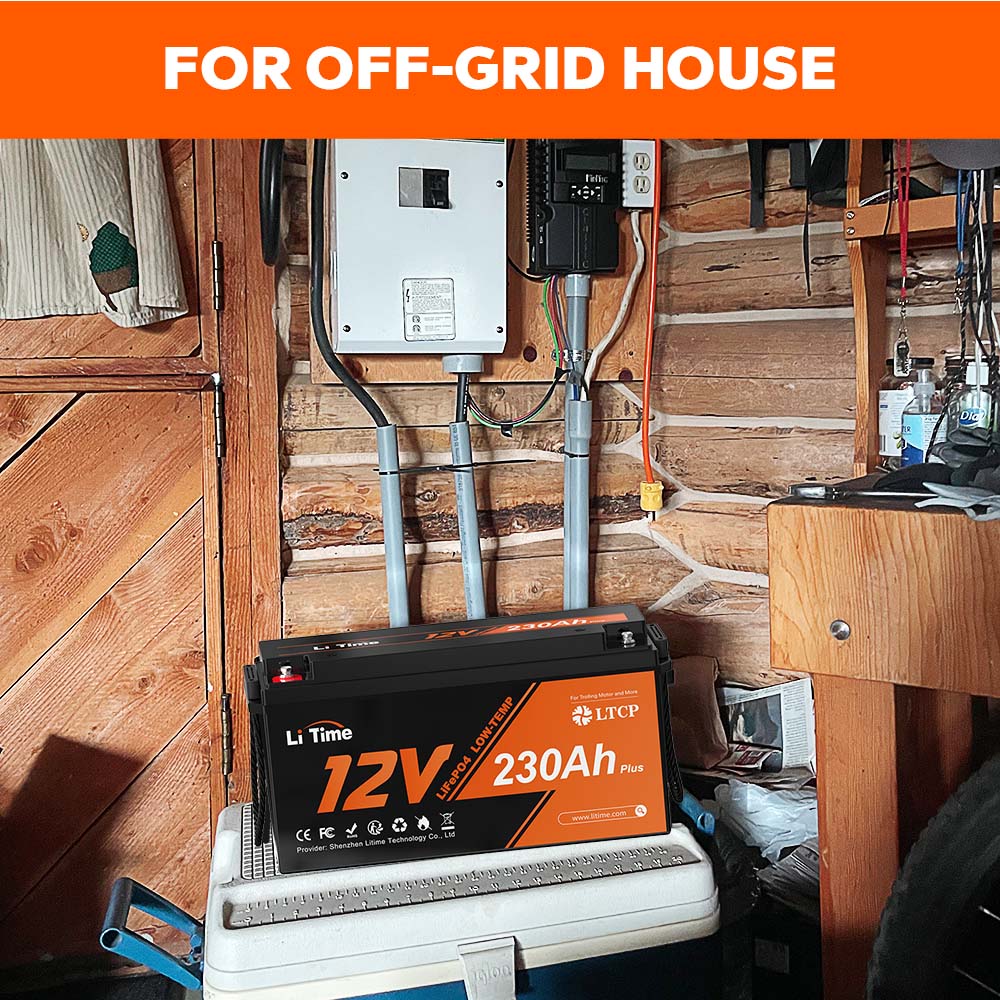

1. Solar Energy Storage: LiFePO4 batteries are commonly used in off-grid solar energy systems for storing and utilizing solar-generated electricity.

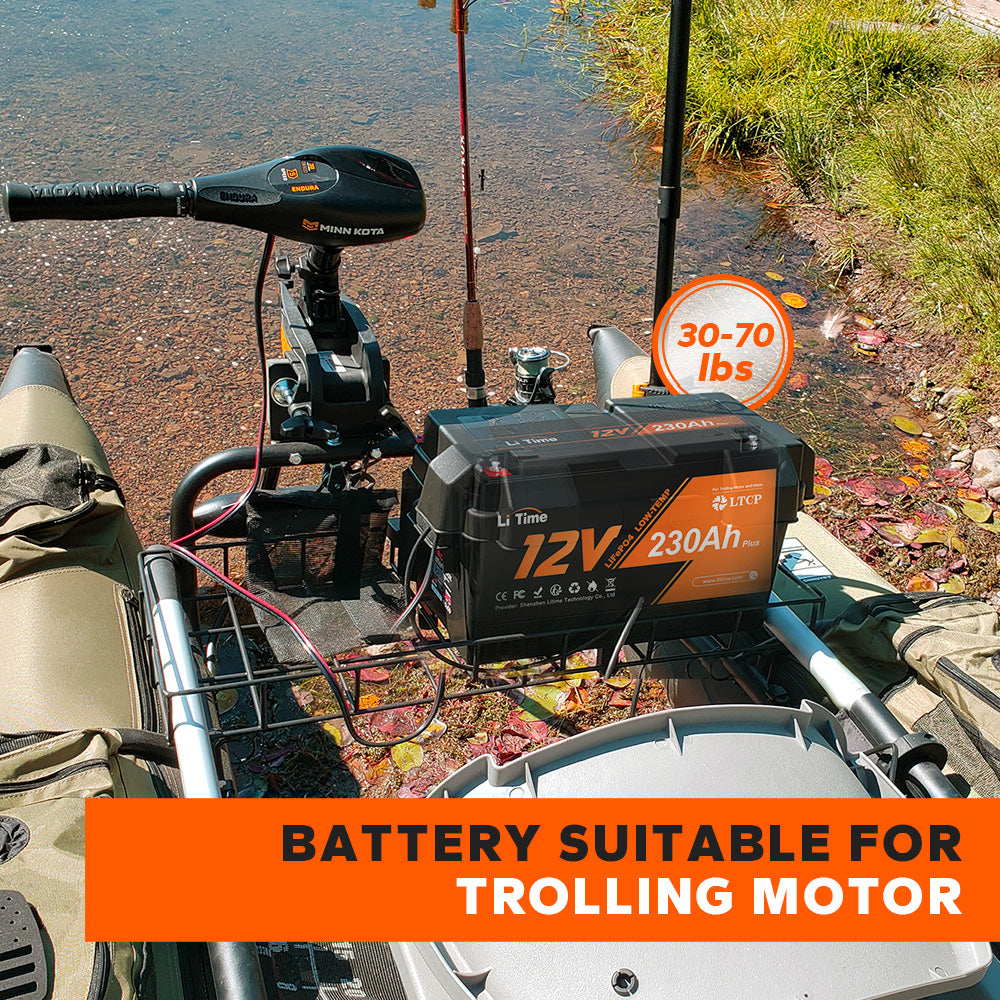

2. RVs and Marine Applications: These batteries are suitable for powering lights, appliances, and electronic devices in RVs, boats, and yachts, providing a reliable and long-lasting power source.

3. Off-Grid Power Solutions: LiFePO4 batteries can be used for off-grid cabins, cottages, or remote locations where a reliable power supply is necessary.

4. Backup Power for Home and Business: They can be utilized as a backup power source for homes, businesses, or critical systems in case of power outages.

5. UPS (Uninterruptible Power Supply): LiFePO4 batteries can be integrated into UPS systems to provide reliable and long-lasting backup power for critical equipment.

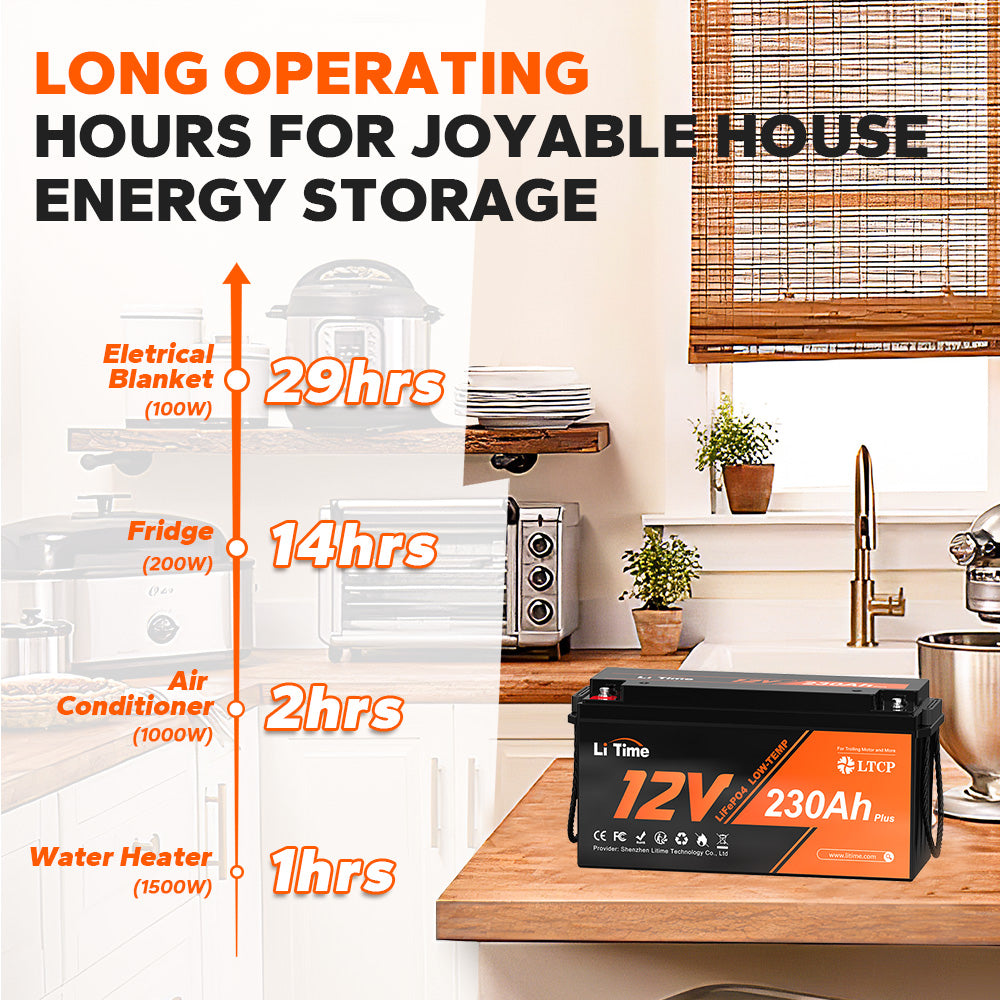

How Long Will a 12V 230Ah Battery Last?

The length of time a 12V 230Ah battery will last depends on the amount of current drawn from it and the specific use. You can estimate this by using the following formula:

Battery life (in hours) = Battery capacity (in amp-hours) / Load current (in amperes)

For example, if we assume a load current of 10 amperes:

Battery life = 230Ah / 10A = 23 hours

This means you can expect approximately 23 hours of continuous operation with a 10-ampere load. However, actual duration can vary based on factors such as system efficiency, changes in the load current, and the overall condition of the battery.

Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.

REVIEWS

230Ah Plus Deep Cycle LiFePO4 Battery

Great Product, service and support

230 Amp Lithium Battery

Delivered very quickly
Done a few tests on the battery and so far very good
Light weight and compact for it’s capacity

Customer Service

Excellent customer service, Patty was very understanding when I needed to return my battery because of my mistake. With of that I told my RV tech about your outstanding customer service, and recommended your products.

Great Batteries

I upgraded my AGM batteries to LiTime Lithium and I could not be happier. I had an upright freezer on my system for over 12 hours and it barely put a dent in them. Very happy with the 12V 230Ah Plus Low-Temp Protection Deep Cycle LiFePO4 Battery.

LiTime 12V 230Ah Plus Low-Temp Protection Deep Cycle LiFePO4 Battery, Built-in 200A BMS

1 2 3

Advantages of official website

LiTime has been cultivating for 10 years, putting customers first.

Official Website Discount

Quick View

Experts Support

Quick View

Risk-Free Warranty

Quick View

Free Shipping & Fast Delivery

Quick View

LiPoints & Rewards

Quick View

One-Stop-Solution

Quick View

Why LiTime is Your Best Choice

TOP 1 LiFePO4 Brand

As the #1 LiFePO4 battery brand, LiTIme leads the market with the most complete power solutions—covering RVs, home storage, marine, golf carts, off-grid systems, and beyond.

15-Year Expertise

With 15 years of industry experience, LiTime serves over 350,000+ users globally, ensuring quality and trust. LiTime keeps innovating and has your back, always.

24/7 Expert Support

With 24/7 expert support and an average 24-hour response time, we ensure you get the help you need, anytime. Whether it's pre-sales or after-sales, we guarantee 100% support every step of the way.

Industry-Leading Tech

With EV-grade cells passing 80+ tests and a self-developed BMS with under 1% margin of error, LiTime batteries ensure 15,000 cycles, 20+ protections, and up to 10 years of reliable performance.

Cutting-Edge Features

LiTime batteries offer a range of advanced features, including Bluetooth, low-temperature protection, self-heating, high-rate discharge, pre-charging, ensuring reliable power and peace of mind in any environment.

Expert-Backed Quality

LiTime is backed by over 70+ patents and recognized for quality. Let authorities and patents prove why LiTime leads the way.

Trusted by Users Worldwide

Powering the World, Trusted by All

0 %

User Growth

0 %

Growth in Units Sold

0 +

Countries & Regions

0 +

User Insights

Hamjazz

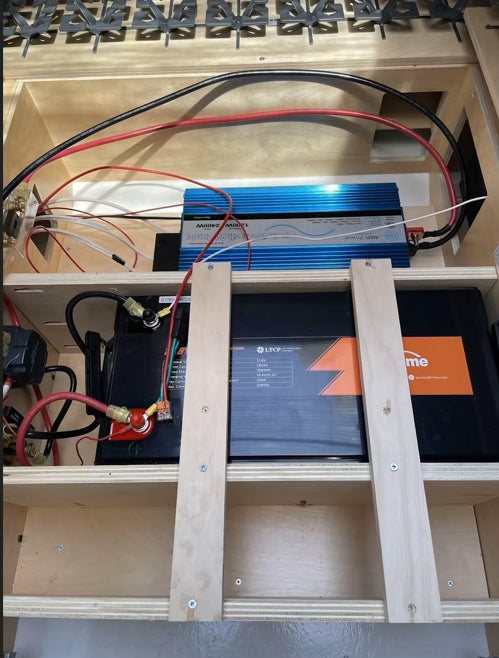

I’ve been using the battery primarily as an emergency power backup at home — it gives me peace of mind knowing I’ve got reliable energy if the grid goes down.

Fish Big

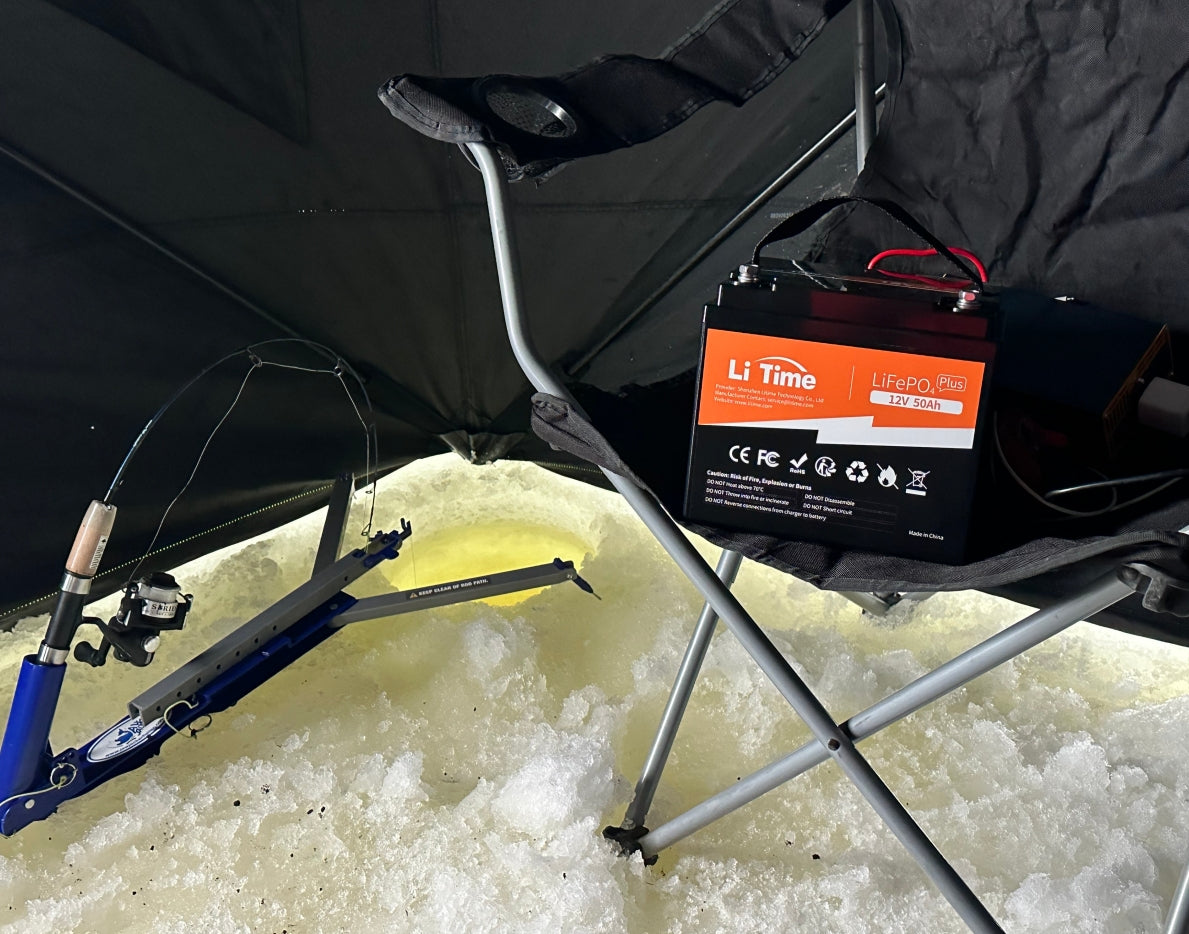

The lightweight design is a game-changer for someone like me, who spends a lot of time outdoors. I use this battery regularly to power all my electronics during trips, and it has never let me down.

Esther Snow

Drop in for our travel trailer Great addition to our travel trailer. Now we can spend endless time at a remote campsite without worrying we will run out of power.

James

Omg awesome! Things are looking great so far. With all the great reviews on the web. I’m feeling pretty good about the two 200 AH batteries I bought. Thank you for a great product

Allan

Fairly light weight at 80 lbs. Only took about a day to fully charge with solar panels, and it runs my 3000 W inverter with no issues. 400ah is well worth getting instead of 4-100ah batteries connected together due to less wiring and possible loose connections. Highly recommend.

Donald L Anderson

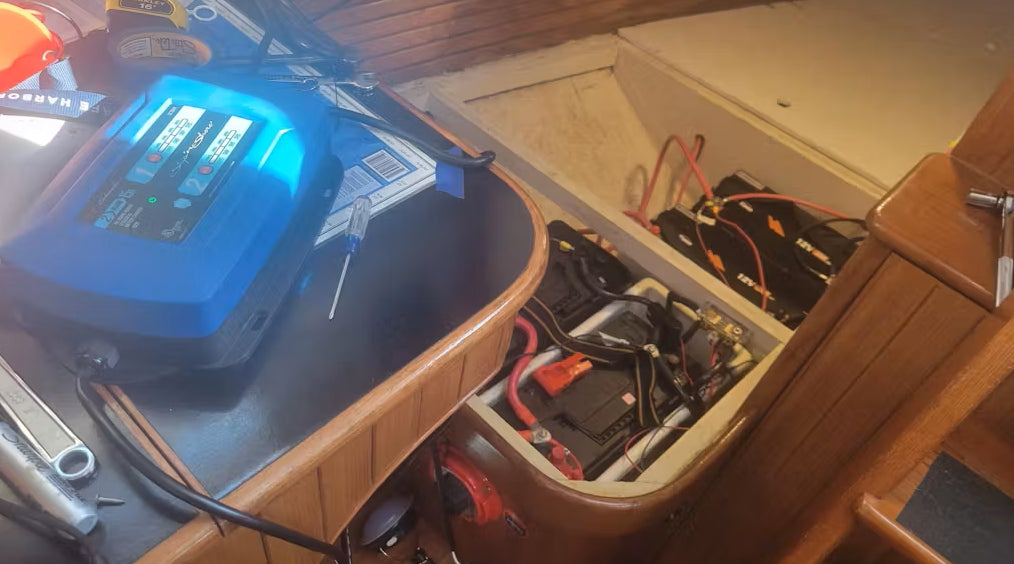

Installed 2 100ah batteries in boat as my house bank with the Litime DC to DC 40amp charger to protect alternator. I have to say very happy with everything.
