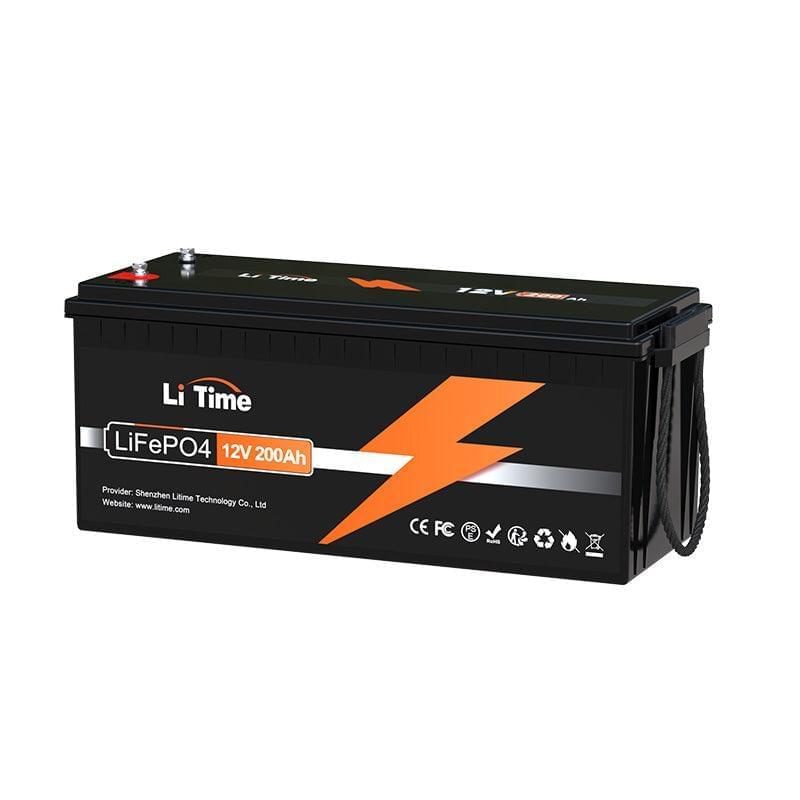

LiTime 12V 200Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy

A$719.99
A$899.99
A$719.99
Please hurry! Only 9 left in stock
Size: 1 Pack
Subtotal: A$719.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-7 business days.

5 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
LiTime 12V 200Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy

LiTime 12V 200Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy

A$899.99 A$719.99

LiTime 12V 200Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy

A$899.99 A$719.99
Size: 1 Pack

    Related Products

    • FEATURES

    • SPECS

    • FAQ

    One for All Solutions

    The LiTime 12V 200Ah LiFePO4 lithium battery delivers unmatched energy and performance with EV Grade-A cells and a reliable BMS, making it ideal for indoor and outdoor applications where safety and power are paramount.

    LiFepo4 Battery, for A Greener Future

    The durable LiTime 12V 200Ah lithium battery powers all your needs and benefits our future through EV Grade-A LiFePO4 cells enabling longevity and eco-friendly design. Passing UL, FCC, CE, RoHS and UN38.3 certifications ensures the stable high-performance and safety of LiTime battery.

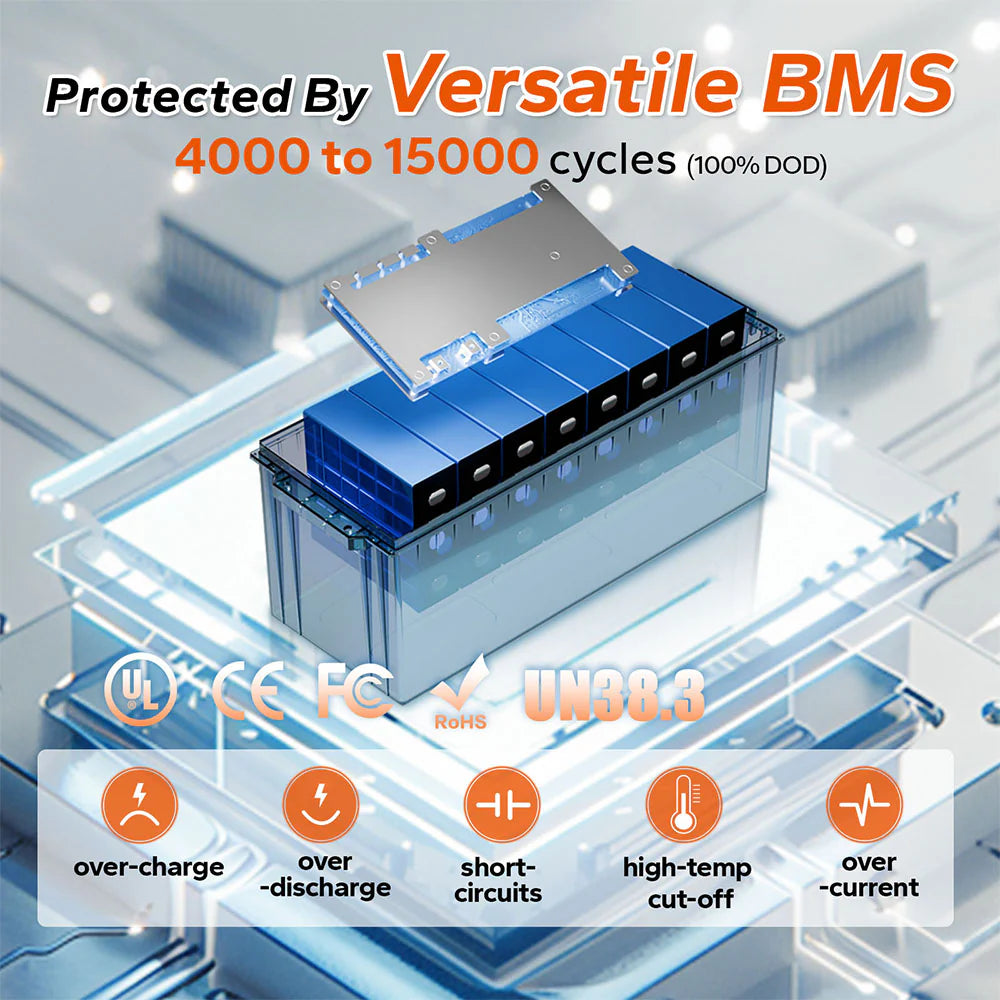

    High-Performance Protection

    The built-in 100A BMS protects the 12V 200Ah LiFePO4 battery from potential risks for long-term use. It has protections against overcharge, over-discharge, over-current, and short circuits. Built-in high-temp cut-off protection prevents it when charging temp is over 167 °F (75 °C). An ultra-low self-discharge rate makes it longer-lasting.

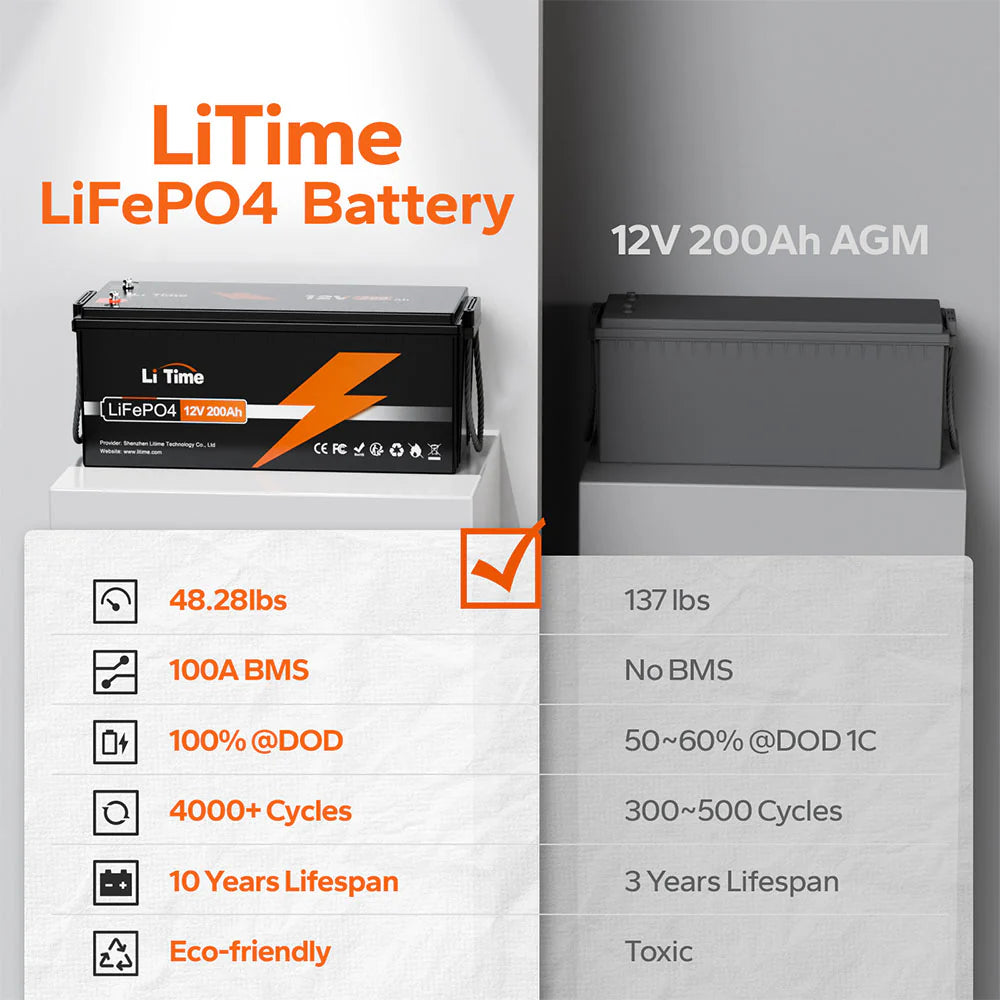

    Superior to Lead Acid

    LiTime 12V 200Ah LiFePO4 battery weighs 48.28 lbs, only 1/3 of a 12V 200Ah lead acid battery, making it easier to install and transport for indoor and outdoor power needs.

    More Juice, Less Fuss

    The LiTime 12V 200Ah LiFePO4 battery is superior to lead-acid batteries in all aspects, capacity in particular. LiTime 12V 200Ah LiFePO4 battery powers 2560Wh, 2X energy of a 12V 100Ah LiFePO4 battery. A battery with 2560Wh usable energy can be your confident solution for various applications.

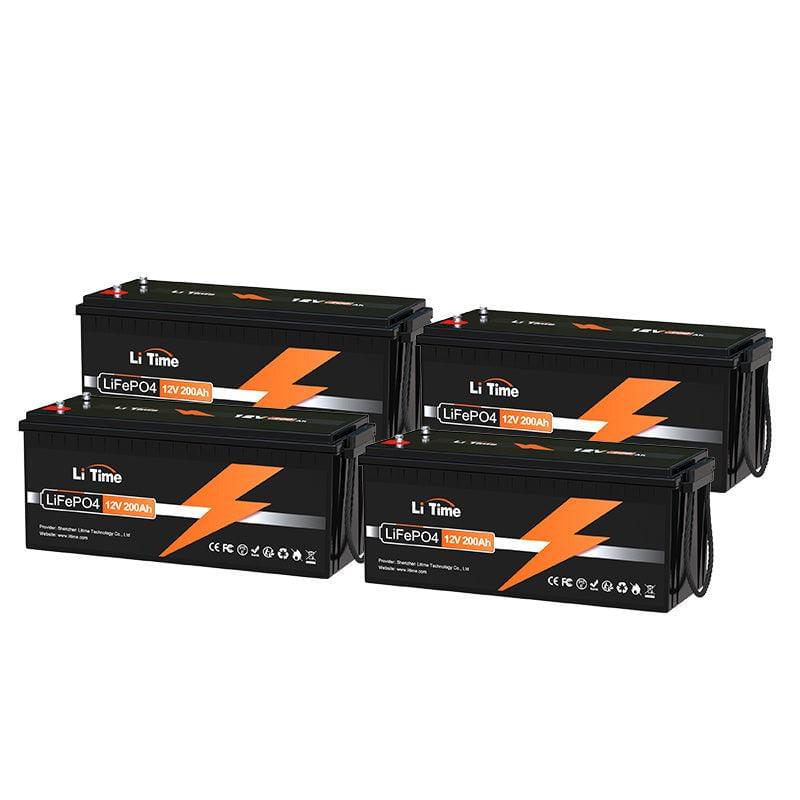

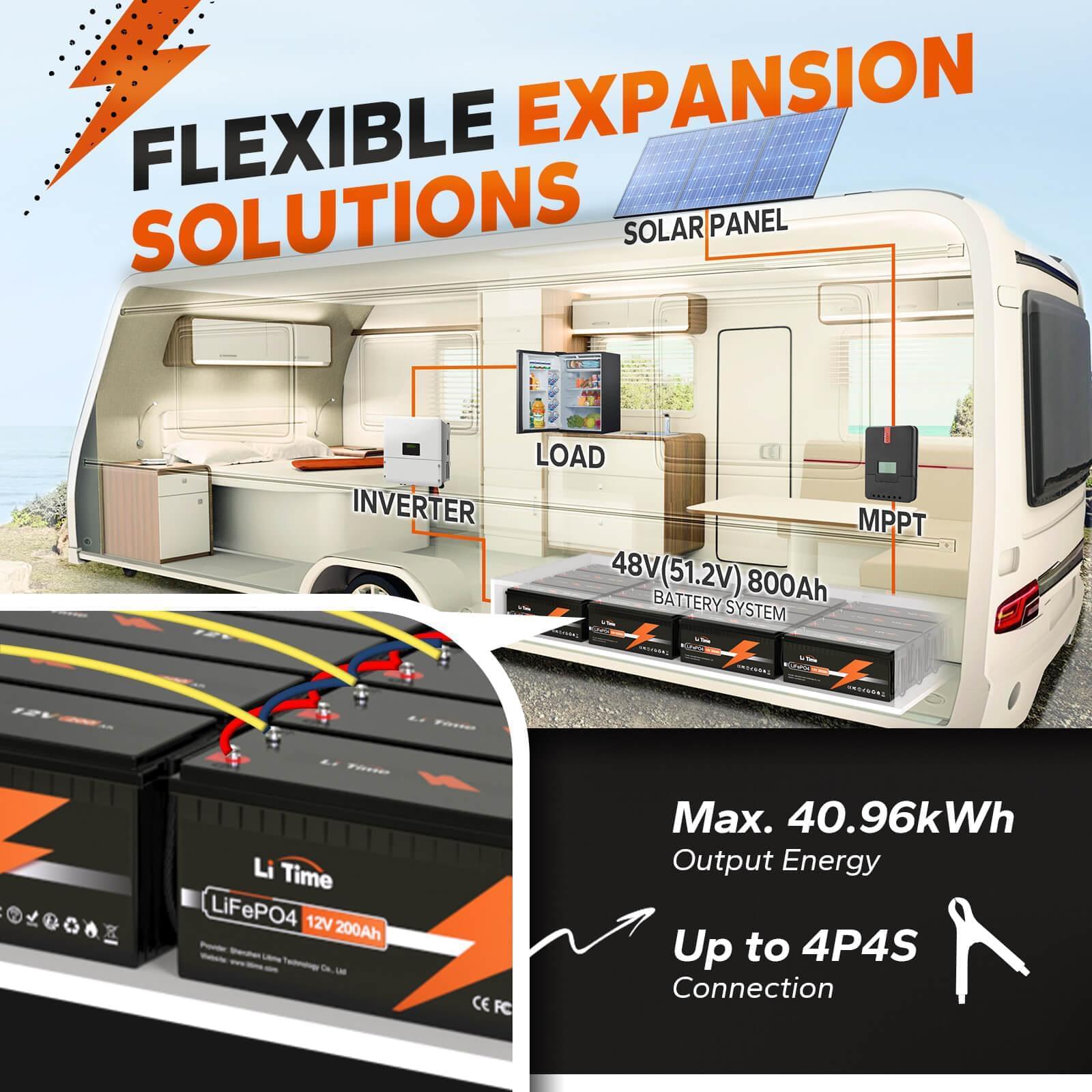

    Power tailored for you

    Customizable LiTime battery solutions provide Max. 40960Wh energy for your indoor needs and outdoor adventures. It supports up to 4P4S to build a 51.2V 800Ah battery system.

    Your One-Stop Juice Station

    The durable yet powerful LiTime battery provides reliable power for RVs, Campers, Home Storage, Off-grid, Solar, Marine, Trolling Motors(30~70 lb) and more. You do not need to worry about power-off when the electricity is cut off or go traveling, camping and fishing.

    Fast Flexible Charging

    LiTime battery has faster charging efficiency than lead-acid and supports various quick charge options for continuous high performance. Without memory effect, you can charge the battery via a LiFePO4 charger, solar panel and generator partially or fully anytime.

    Precautions for Usage

    Tips for a better user experience and batteries' health.

    5 Year Warranty, AU Local Warehouses, Fast Delivery, Best Customer Service

    SPECS

    BATTERY
    Cell Type:
    LiFePO4 Prismatic
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    12.8V
    Rated Capacity:
    200Ah
    Energy:
    2560Wh
    Max. Expansion (Parallel & Series):
    4P4S
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL, FCC, CE, RoHS, UN38.3
    BMS
    BMS:
    100A
    Max. Continuous Output Power:
    1280W
    Max. Continuous Charge Current:
    100A
    Max. Continuous Discharge Current:
    100A
    Max. Discharge Current 5 Seconds:
    280A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V ± 0.2V
    Recommend Charge Current:
    40A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    Low-Temperature Protection:
    N/A
    Low-Temperature Charging Protection Auto Recovery:
    N/A
    SELF-HEATING
    Heating Temperature:
    N/A
    Approx. Heating Time:
    N/A
    Required Minimum Charge Current for Heating Function:
    N/A
    OTHERS
    Terminals:
    M8 bolts
    Weight Approx.:
    44lbs

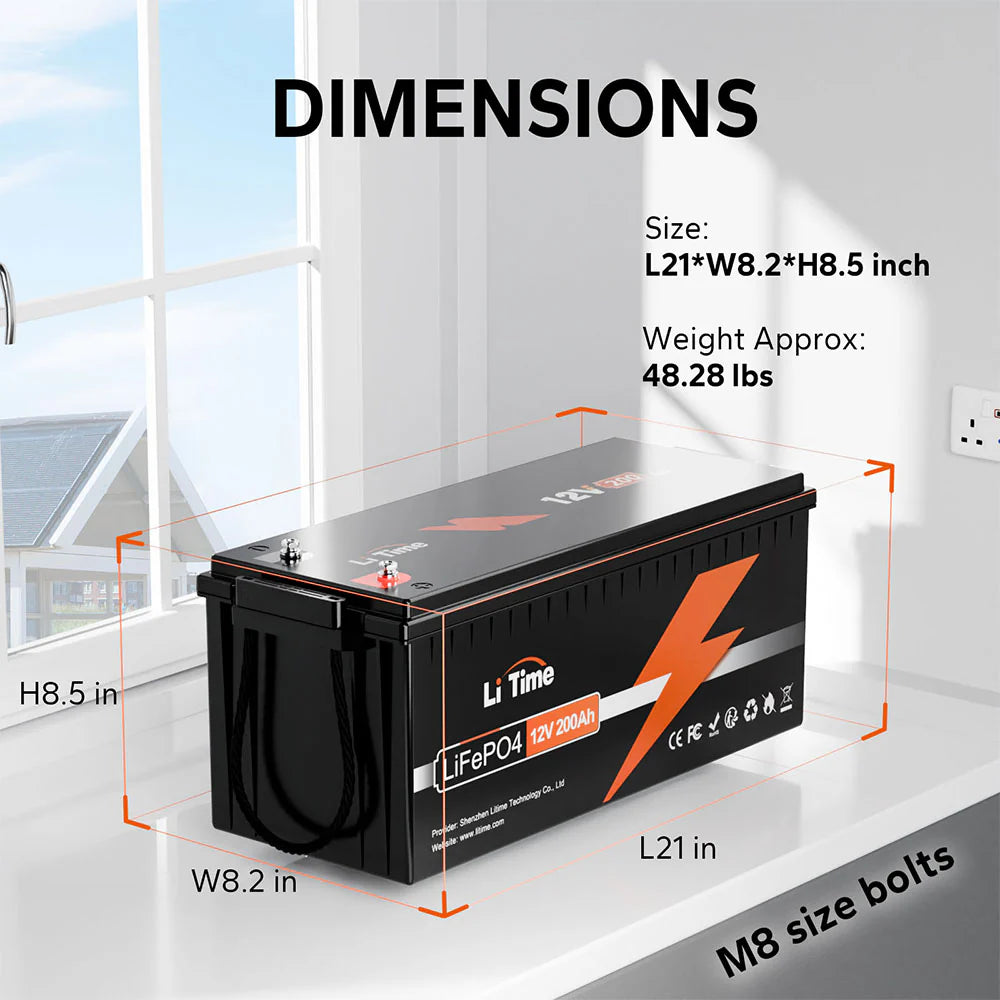

    Size:
    L21*W8.2*H8.5inch
    Housing Material:
    ABS
    Protection Class:
    IP65

    FAQ

    Q: How long will a 12V 200Ah battery last?

    A:

    Run Time (hours) = Battery Capacity (Ah) / Current (A)

    The higher the discharge rate (amount of current/amps being drawn from the battery), the shorter the duration it will last.

    For example:

    A 200Ah battery discharging at just 10A could theoretically last around 20 hours. Discharging at 50A would last only around 4 hours.

    Q: What's the difference between LiTime 12V 200Ah and 200Ah Plus?

    A:

    The BMS boards are different. The 200Ah battery uses a 100A BMS, which can accept a maximum continuous charge/discharge current of 100A. The Plus version uses a 200A BMS, which can accept a maximum continuous charge/discharge current of 200A.

    Q: Are LiTime LiFePO4 Lithium batteries safe?

    A:

    Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

    Q: Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

    A:

    No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.

    Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

    A:

    No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

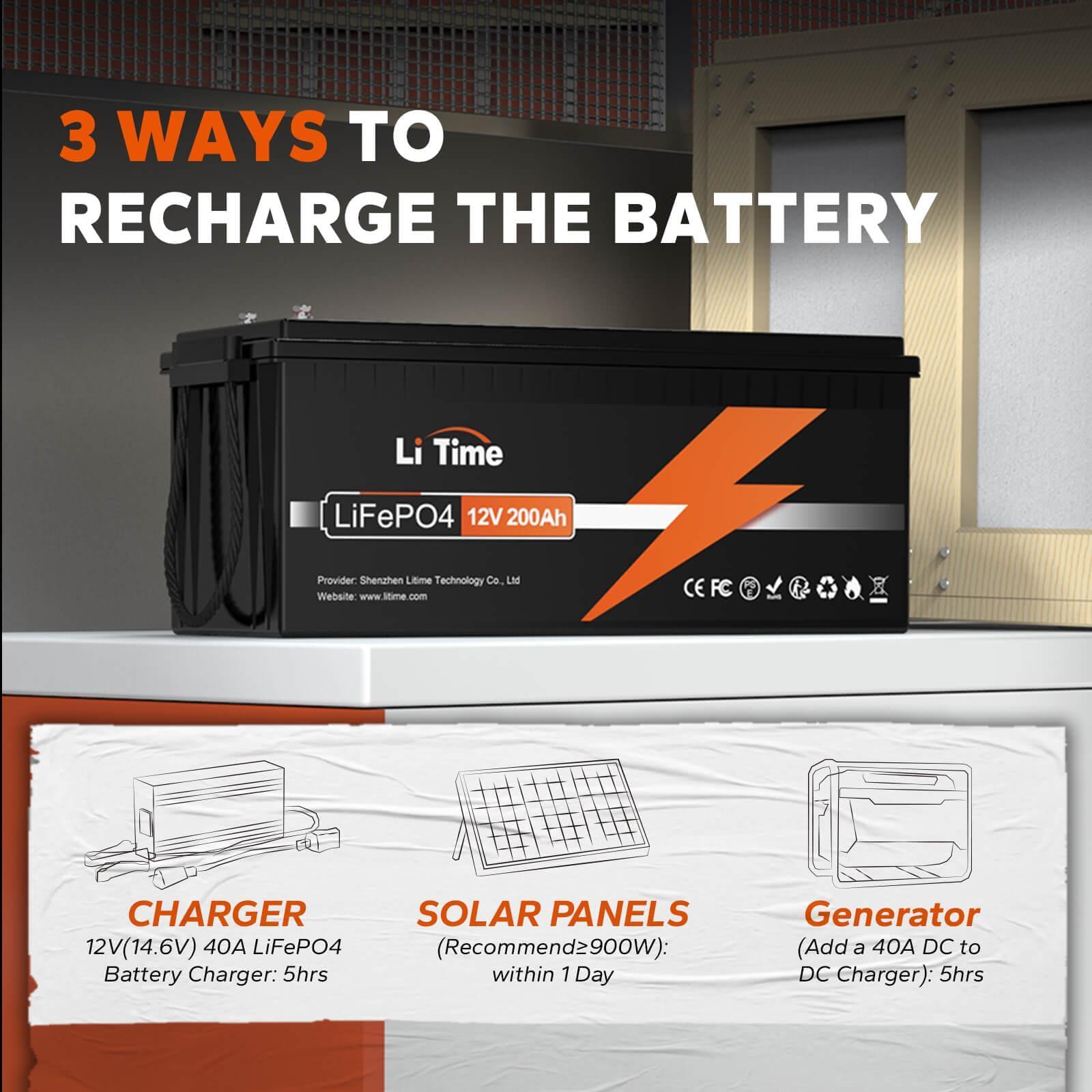

    Q: How to charge LiTime LiFePO4 lithium batteries?

    A:

    1. Using Solar Panels

    The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency. Besides solar panels, there are 2 more ways to charge.

    2. Generator/Alternator

    If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

    3. LiFePO4 Smart Chargers

    To charge 12V battery, it is recommended to use 14.6V battery charger.  The Recommended Charging Voltage: 14.2V - 14.6V.  The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

    Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?

    Q: Is it okay to keep the charger connected to the battery without disconnecting?

    A:

    It is recommended to disconnect the charger from the battery or unplug the charger plug from the socket when the storage battery is fully charged. Otherwise, it may cause the battery BMS to trigger overcharging protection.

    If BMS protection is frequently triggered, the BMS will be damaged over time, leading to degradation of the battery system performance or even damage.

    Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

    A:

    LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 200Ah  lithium battery doesn't have low-temperature protection, so it suggest to charge the 12V 200Ah deep cycle battery indoor.

    Q: How do I store LiTime LiFePO4 lithium batteries?

    A:

    It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, recharge the batteries at least every 3 months. Recommended storage environment: 10℃~35℃ (50℉~95℉),45%RH~75%RH
