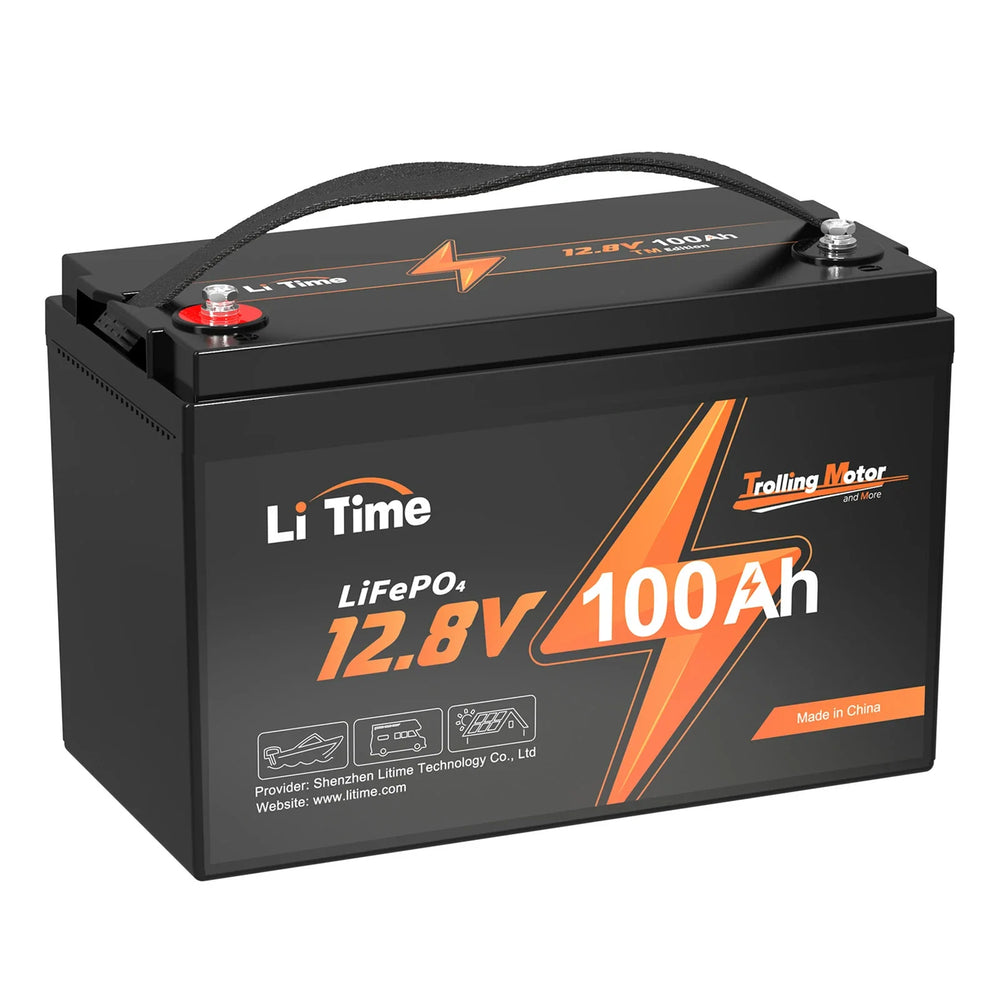

overview of litime 100ah lithium battery for trolling motor

overview of litime 100ah lifepo4 lithium trolling motor battery features with low temp protection

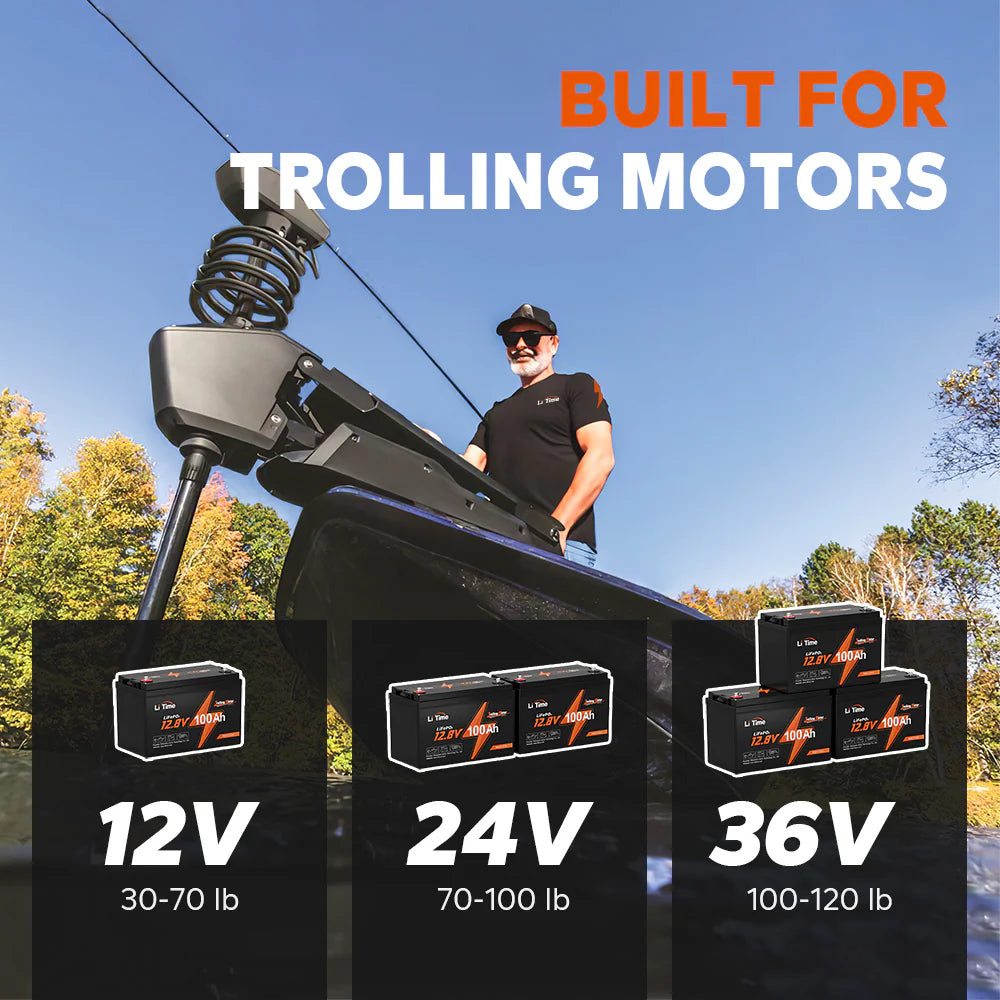

litime lithium trolling motor batteries: 12V/24V/36V options for 30-70lb to 100-120lb motors

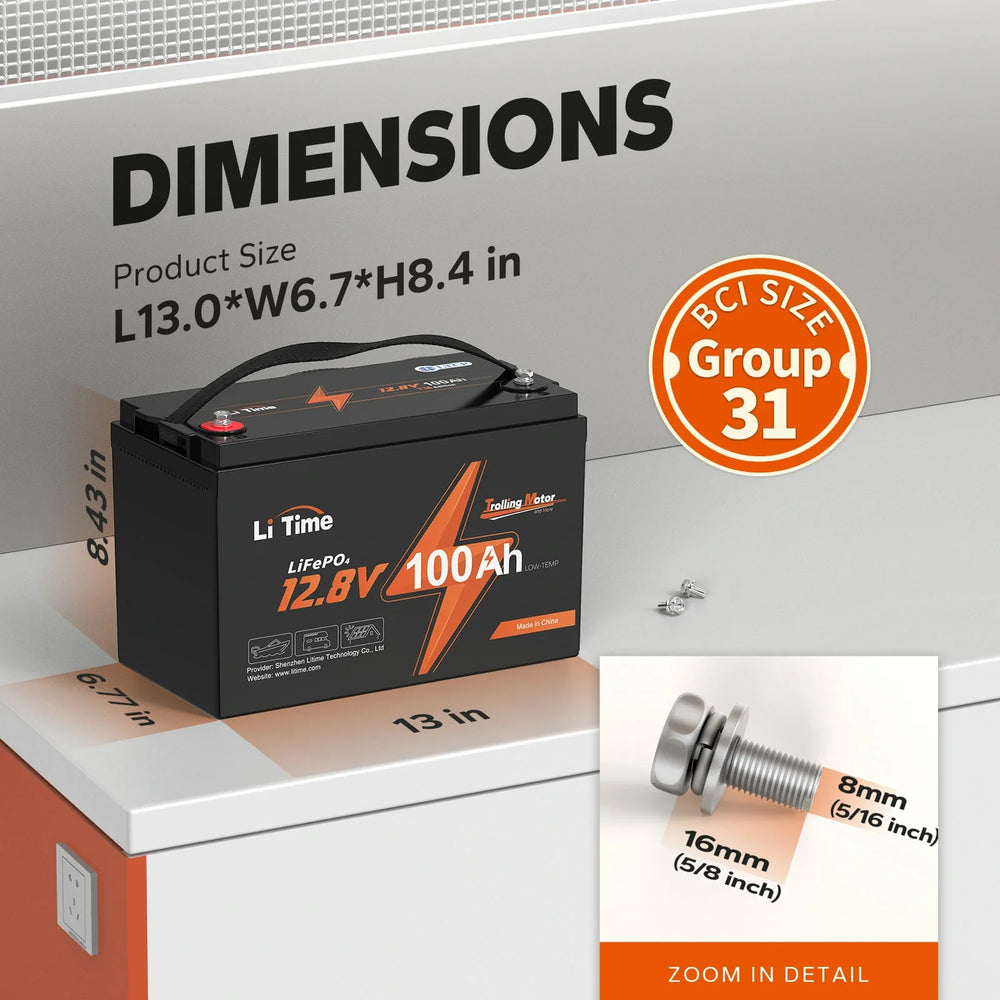

LiTime 12V 100Ah trolling motor lifepo4 battery: 13x6.77x8.43in, group 31 size, M8 bolts (16mm/8mm)

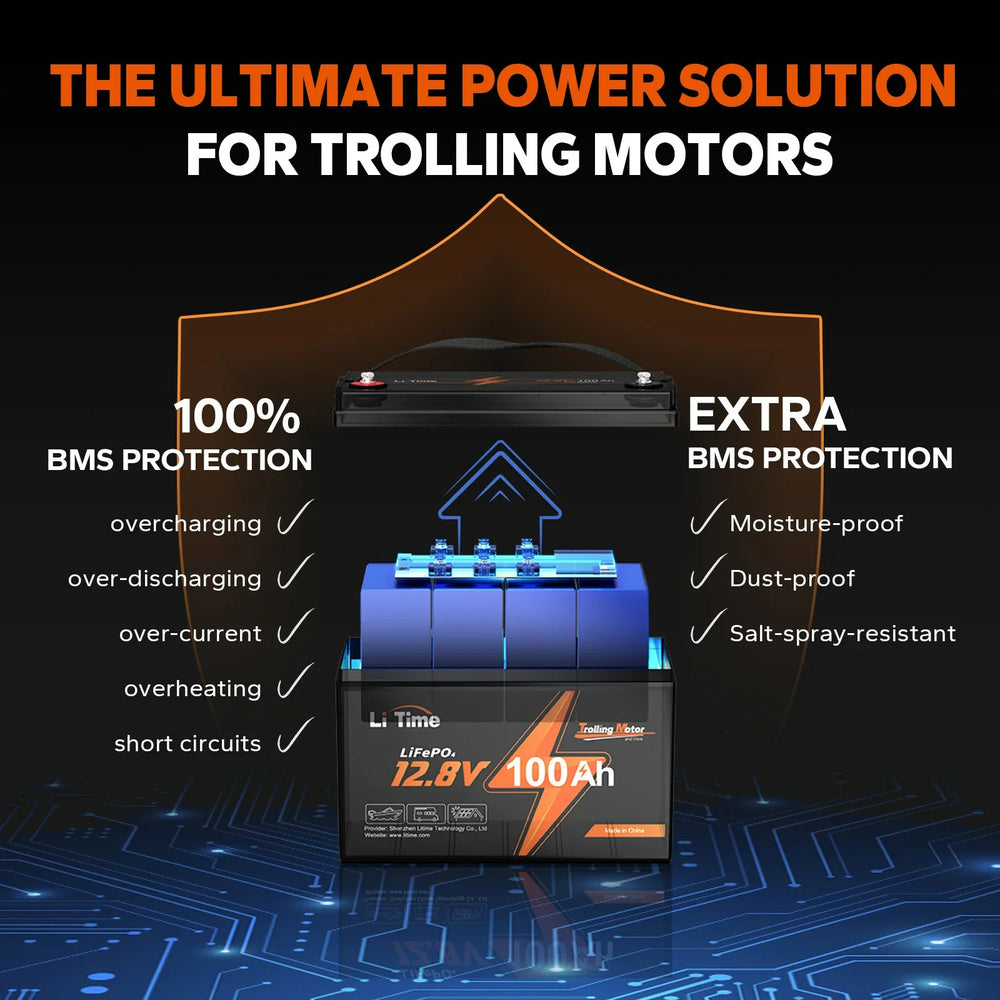

the BMS protections of a LiTime 100Ah battery, including overcharging, overheating, moisture-proof, and more

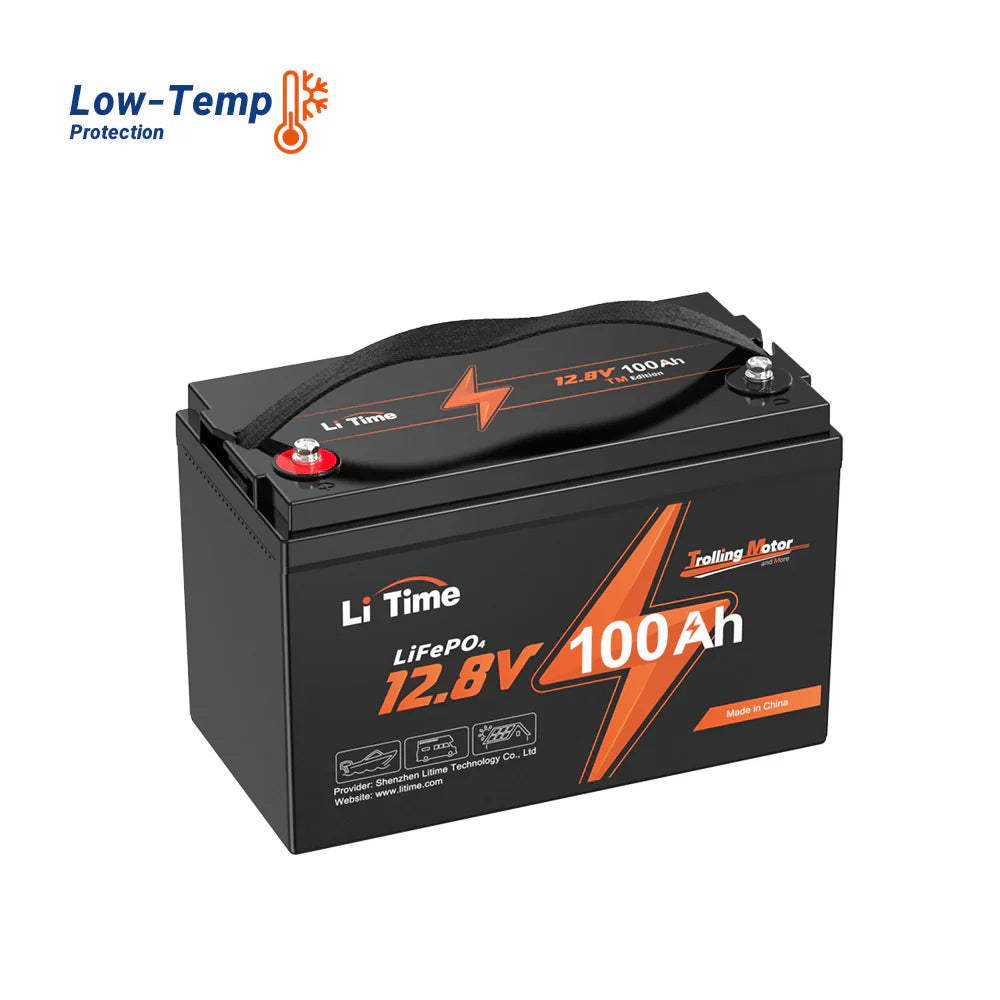

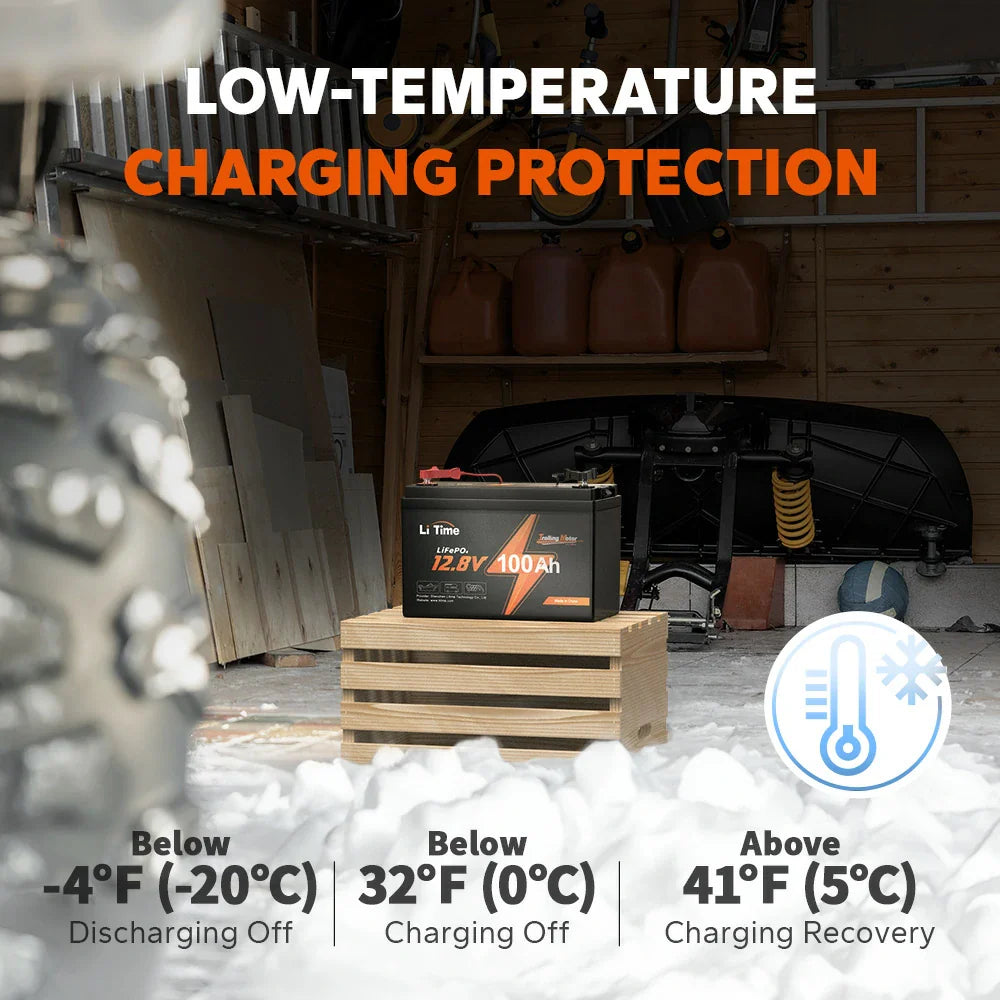

litime 100ah trolling motor battery's low temperature charging protection feature

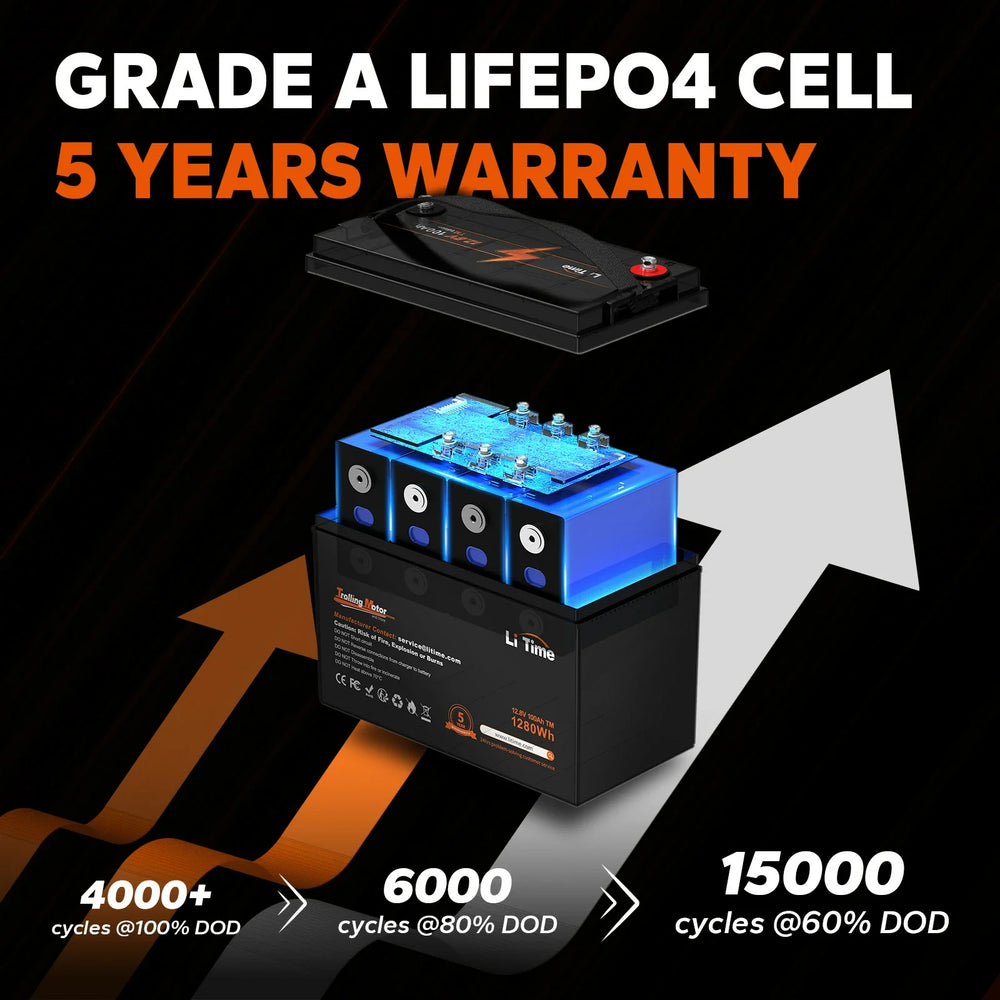

LiTime Grade A LiFePO4 trolling motor battery: 4000+ cycles @100% DOD, 5-year warranty

upgrade to litime 12v trolling motor battery for better experience: 2× max discharge current & superior shock resistance

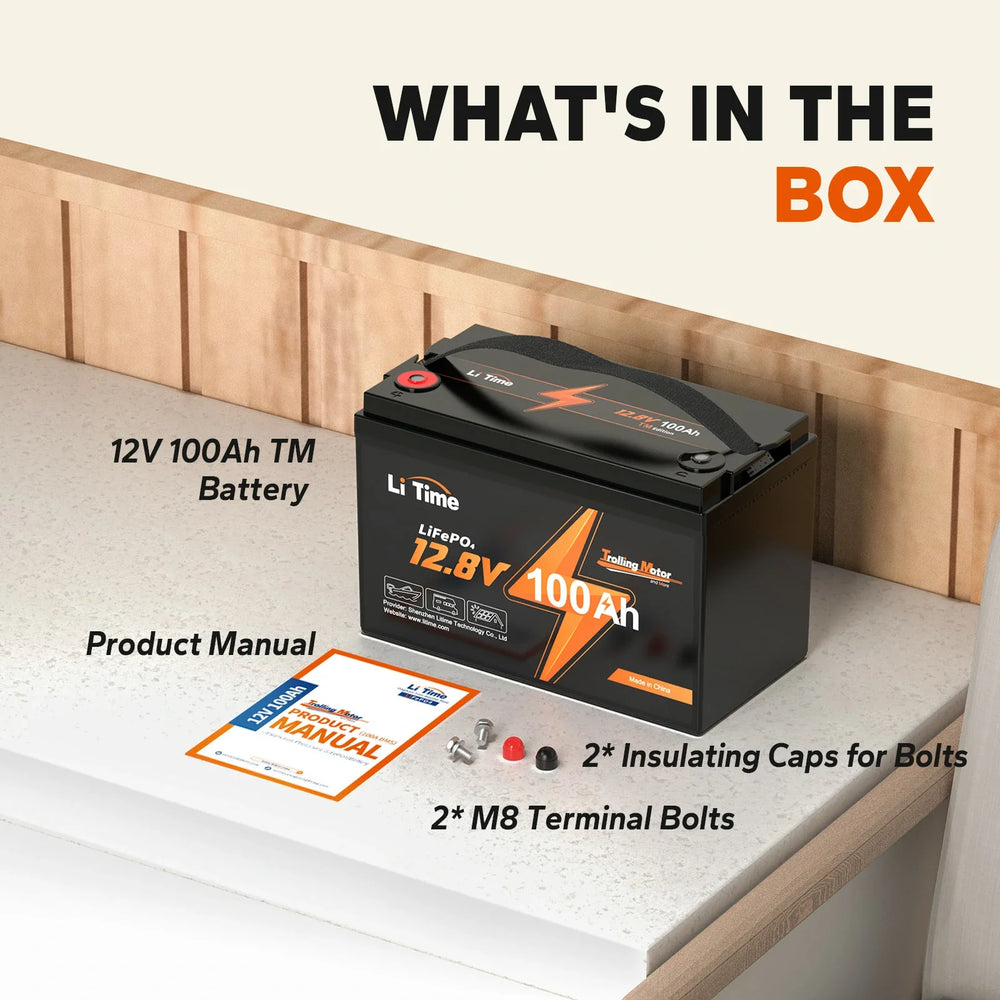

What's in the box: LiTime 100Ah battery, product manual, and M8 terminal bolts with caps

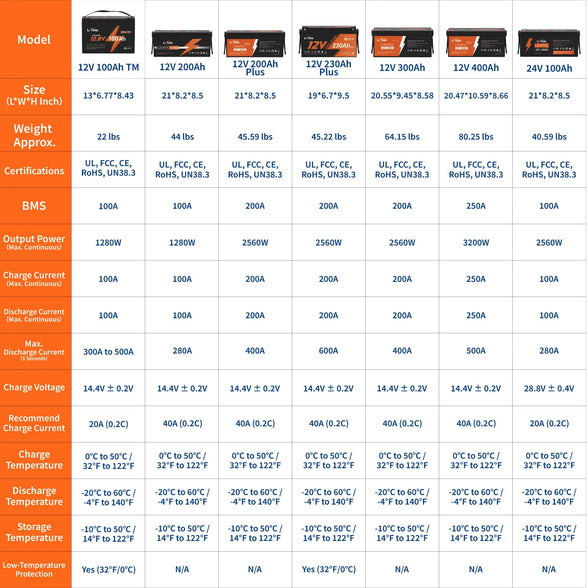

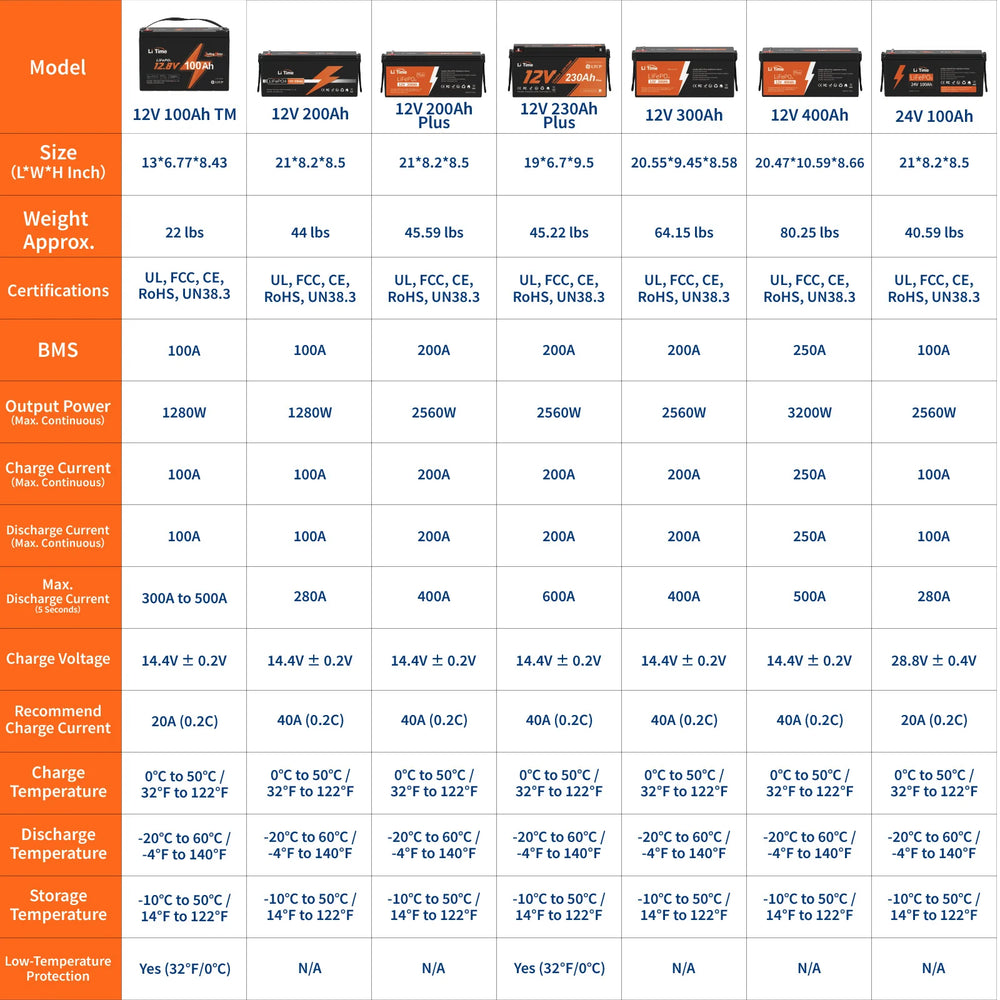

chart comparing litime 12v lifepo4 batteries

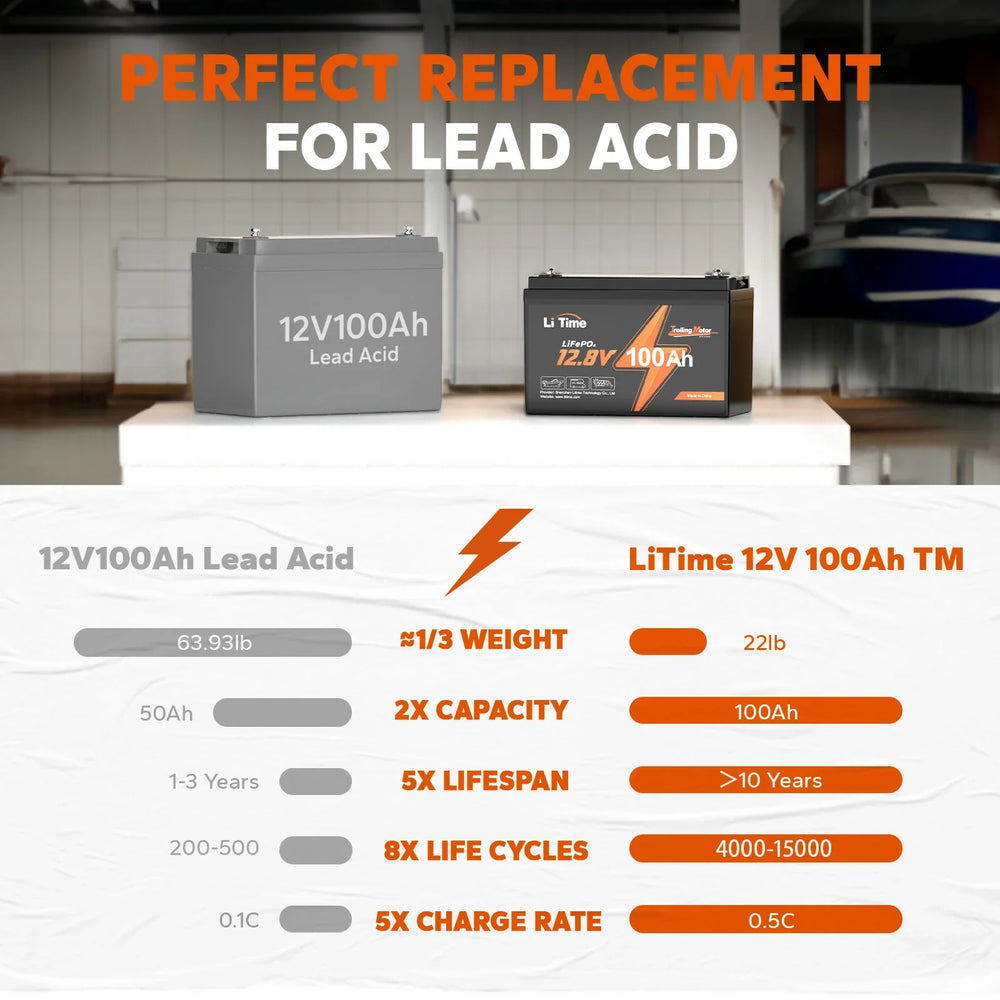

Chart: LiTime battery has 2x capacity, 5x lifespan, & is 1/3 the weight of lead acid

1 / 0

Features

Low-temp

IP-65 Waterproof

LiTime 12V 100Ah TM Lithium Marine Trolling Motor Battery

A$479.99

A$649.99

26% OFF

GOLD SPONSOR FOR 2023 LL BRAWL, 2024 MLF
12V marine battery, best lithium battery for 30~70 lb trolling motors, also suitable for RVs, solar systems, and home energy storage
Low-temperature charging cutoff protection, preventing charging below 0°C to protect the battery and extend its life.
Features robust 20+ layer BMS protection with enhanced moisture, dust and salt spray resistance for reliability in humid environments.
Automatic Overload Protection and Recovery – No User Intervention Required
EV Grade-A LiFePO4 cell only, 4000+ cycles at 100% DOD
Ultimate replacement for lead-acid: 1/5 the weight, same power (V.S. a 12V 200Ah lead acid)
L32.9*W17.2*H21.4 cm, Equivalent to group 31 batteries
Increased instantaneous load capacity for better control of your trolling motor
Upgraded shock resistance for worry-free boating, even in rough waters
Flexible 3 Recharging Ways (LiFePO4 charger/Solar/Generator)
Expandable up to 4S4P for a 48V 400Ah system
ABYC Official Certi.: All LiTime marine batteries meet ABYC standards, ensuring the highest safety for your sailing needs.

Choose Products

Comparison

1 Pack

A$479.99 A$649.99

2 Pack

A$950.38 A$1,299.98

3 Pack

A$1,425.57 A$1,949.97

4 pack

A$1,881.56 A$2,599.96

Quantity:

A$479.99

A$649.99

26% OFF

Add to Cart

5 Years Warranty

Backed up by techical support within 24hrs

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

12V 100Ah TM

A$479.99

A$649.99

[{"alt":"overview of litime 100ah lithium battery for trolling motor","id":63024809378020,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/files\/1122334455.webp?v=1734697464"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/1122334455.webp?v=1734697464","width":1600},{"alt":"overview of litime 100ah lifepo4 lithium trolling motor battery features with low temp protection","id":63025281630436,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm11111.webp?v=1734697464"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm11111.webp?v=1734697464","width":1000},{"alt":"litime lithium trolling motor batteries: 12V\/24V\/36V options for 30-70lb to 100-120lb motors","id":61735923417316,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm8.webp?v=1734697464"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm8.webp?v=1734697464","width":1000},{"alt":"LiTime 12V 100Ah trolling motor lifepo4 battery: 13x6.77x8.43in, group 31 size, M8 bolts (16mm\/8mm)","id":61735923482852,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm2.webp?v=1734697464"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm2.webp?v=1734697464","width":1600},{"alt":"the BMS protections of a LiTime 100Ah battery, including overcharging, overheating, moisture-proof, and more","id":61735923515620,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm4.webp?v=1734697464"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm4.webp?v=1734697464","width":1600},{"alt":"litime 100ah trolling motor battery's low temperature charging protection feature","id":61735923548388,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm5.webp?v=1734697464"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm5.webp?v=1734697464","width":1000},{"alt":"LiTime Grade A LiFePO4 trolling motor battery: 4000+ cycles @100% DOD, 5-year warranty","id":61735923581156,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm6.webp?v=1734697464"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm6.webp?v=1734697464","width":1600},{"alt":"upgrade to litime 12v trolling motor battery for better experience: 2× max discharge current \u0026 superior shock resistance","id":61735923613924,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm7.webp?v=1734697464"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm7.webp?v=1734697464","width":1000},{"alt":"What's in the box: LiTime 100Ah battery, product manual, and M8 terminal bolts with caps","id":61735924760804,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm10.webp?v=1734697464"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm10.webp?v=1734697464","width":1600},{"alt":"chart comparing litime 12v lifepo4 batteries","id":61735924793572,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm11.webp?v=1734697464"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm11.webp?v=1734697464","width":1600},{"alt":"Chart: LiTime battery has 2x capacity, 5x lifespan, \u0026 is 1\/3 the weight of lead acid","id":61735924695268,"position":11,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/files\/tm9.webp?v=1734697464"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/files\/tm9.webp?v=1734697464","width":1600}]

FEATURES SPECS FAQ REVIEWS

Will Prowse "Best Value" 12V LiFePO4 Battery for 2023

A True User-Driven Innovation!

This 12V 100Ah TM LiFePO4 deep cycle battery is a real user-driven innovation, began with 30000+ user research to identify the needs and preferences of our customers in the marine field. From there, our R&D team of experts utilized cutting-edge technology and advanced materials to make it happen: Innovative upgrades provide increased instantaneous load capacity and improved shock resistance, ensuring reliable performance for your trolling motors even in rough waters. It's upgraded for trolling motors, but ready for more adventures.

LiTime 12V 100Ah LiFePO4 battery on a boat, advertised as the ultimate power solution for trolling motors

All-Round Upgraded BMS

Designed for harsh environments such as rainy or coastal areas, or dusty and wet conditions, the 12V 100Ah lithium marine battery offers worry-free and long-lasting performance with a reduced risk of damage and an extended lifespan. It's the best battery for trolling motors.

chart of a LiTime 100Ah lifepo4 trolling motor battery's upgraded BMS, protecting from overcharging, moisture & dust

Ultra-Long Battery Lifespan

Built with the safest LiFePO4 battery technology, the 12V 100Ah TM battery boasts exceptional durability and a longer lifespan, with an impressive 4000+ cycles for a 10-year lifespan. Coupled with an intelligent BMS, it operates efficiently while ensuring safety and reliability.

LiTime lithium battery for trolling motor's specs: 10-year lifespan and 4000+ life cycles at 100% DOD

Upgrade Your Fishing to the Next Level

The 12V 100Ah TM LiFePO4 deep cycle battery supports a max discharge current for 5 seconds up to 300A to 500A, providing rapid and reliable power delivery for smoother and more precise control of your trolling motor. With its upgraded ability to handle sudden and heavy loads, you can reach your destination faster or catch fish more efficiently, giving you ultimate control over your boat.

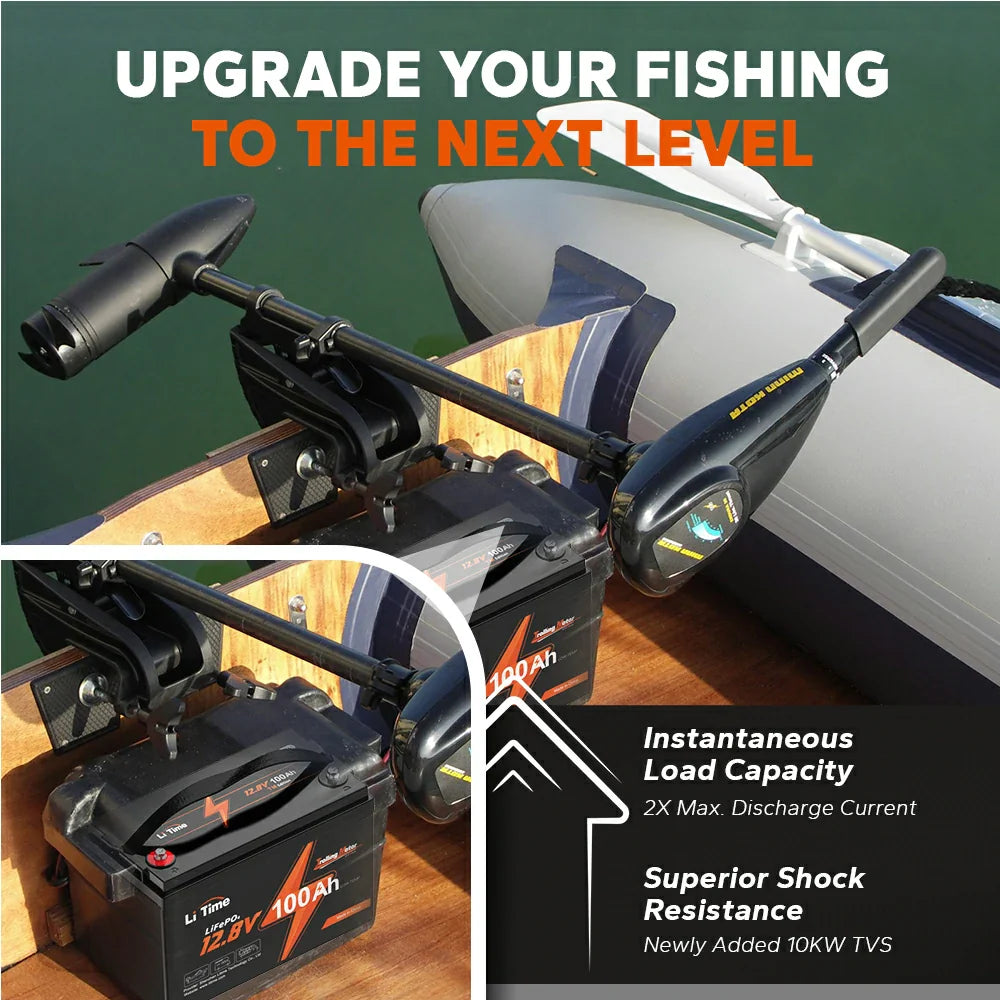

LiTime 100Ah tm battery powering a trolling motor on a fishing boat, with text highlighting its superior shock resistance

Low-Temperature Cutting off Protection

Maximize your battery life and charging efficiency with the low-temperature charging cutoff protection - keeping you safe and powered up even in the coldest conditions.

20.48KWH MASSIVE POWER EXPANSION

Add on up to 16* 12V 100Ah TM LiFePO4 batteries for an extended trip, a boost from 1280Wh to 20480Wh! The battery goes beyond trolling motors and is also ideal for RVs, solar homes, and home energy backup.

connect LiTime batteries to create 12V, 24V, and 36V systems for trolling motors

Ultimate Replacement for Lead Acid

At just 23.4 lbs, the 12V 100Ah TM LiFePO4 battery is approx. 1/5 the weight of a 12V 200Ah lead acid battery (about 130lbs), but equivalent in energy, which is easier to carry, faster to charge, and more convenient to use.

Comparison showing a LiTime LiFePO4 battery is 1/5 the weight and 1/2 the size of a heavier lead-acid battery

3 Ways to Recharge

Never miss a beat with this 12V 100Ah TM deep cycle LiFePO4 battery's ultra-fast recharge speed! It's easily rechargeable with multiple options, including the LiFePO4 battery charger, solar panel, or generator, so you can power up easily!

three ways to charge a litime trolling motor LiFePO4 battery: with a wall charger, solar panels, or a generator

Build for Trolling Motors, Ready for More Adventures

SPECS

BATTERY

Cell Type：

LiFePO4 Prismatic

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

12.8V

Rated Capacity：

100Ah

Energy：

1280Wh

Max. Expansion (Parallel & Series)：

4P4S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

100A

Max. Continuous Output Power：

1280W

Max. Continuous Charge Current：

100A

Max. Continuous Discharge Current：

100A

Max. Discharge Current 5 Seconds：

300A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

14.4V ± 0.2V

Recommend Charge Current：

20A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

Low-Temperature Protection：

Yes (32℉/0℃)

Low-Temperature Charging Protection Auto Recovery：

Yes (41℉/5℃)

OTHERS

Terminals：

M8 bolts

Weight Approx.：

10.61KG

Size：

L32.9*W17.2*H21.4 cm (group 31 size)

Housing Material：

ABS

Protection Class：

IP65

FAQ

How long will a 100Ah lithium battery run a trolling motor?

The run time of your trolling motor depends on the amp hour (Ah) capacity of your battery and the motor's current draw. Follow this simple formula:

Run Time (hours) = Battery Capacity (Ah) / Motor Current Draw (A)

For example:

Your trolling motor draws 54A at full throttle. You have a 100Ah battery.

Run Time = Battery Capacity / Current Draw

= 100Ah / 54A

= 1.85 hours

= 1 hour and 51 minutes

So the 100Ah battery would run the 54A motor for about 1 hour 51 minutes at full speed.

To find low speed run time:

If the motor draws 10A at half throttle.

Run Time = Battery Capacity / Current Draw

= 100Ah / 10A

= 10 hours

Can I use LiTime 12V 100Ah TM LiFePO4 lithium batteries as starting batteries?

This trolling motor battery is specifically designed for deep cycle use, providing steady, long-lasting power for your equipment. It is not intended to be used for starting an engine.

For marine starting applications, please see our LiTime 140Ah Marine Dual-Purpose 1000CCA Battery.

Can I charge LiTime 12V 100Ah TM LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

Charge with peace of mind in colder conditions. To prevent cell damage, this battery is equipped with an automatic low-temperature protection system that stops charging if the temperature drops below 32°F (0°C). The safe charging range is 32°F to 113°F (0°C to 45°C).

For best results in winter, we recommend charging the battery indoors.

How to charge LiTime 12V 100Ah TM lithium batteries?

The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 300W solar panels. It may take more than one day to fully charge the battery by ≥300W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

Besides solar panels, there are 2 more ways to charge. Suggest reading: 3 reliable ways to charge LiFePO4 lithium batteries

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger.

The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

How many batteries can I connect the trolling motor batteries in max?

You can connect multiple 100Ah batteries to create a system that meets your power needs. This model supports the following maximum configurations:

In Series (to increase voltage): Connect up to 4 identical batteries for a 24V, 36V, or 48V system.
In Parallel (to increase capacity): Connect up to 4 identical batteries to build a larger power bank (e.g., 200Ah, 300Ah, or 400Ah).
In Series-Parallel: Connect up to 16 batteries (in a 4 series x 4 parallel setup) for a high-capacity, high-voltage system, such as 48V 400Ah.

For Safety and Performance:
To ensure your battery bank operates correctly and lasts as long as possible, all connected batteries must be:
✔ Identical: Same model, capacity (Ah), and BMS.
✔ The same brand (LiTime).
✔ Purchased around the same time (within one month is best).

How do I store LiTime LiFePO4 lithium batteries?

For optimal longevity, store your LiTime LiFePO4 batteries under the following conditions:

Storage Recommendations

State of Charge (SOC): Store batteries at a 50% state of charge. Avoid storing them fully charged or completely discharged.
Regular Recharging: If storing for an extended period, recharge the batteries to 50% at least every three months to prevent deep discharge and maintain cell balance.
Temperature: The ideal storage temperature is between 10℃ and 35℃ (50℉ and 95℉).
Humidity: Maintain a relative humidity of 45% to 75%.
Protective Casing: It is highly recommended to store the batteries in a dedicated battery box to protect them from physical damage, dust, and moisture.

Best Practices for Long-Term Storage

For storage exceeding three months, adhering to these guidelines will significantly preserve your battery's health and performance:

Disconnect Completely: Ensure the batteries are disconnected from all loads and charging sources. This prevents slow parasitic drains that can lead to over-discharge.
Avoid Extreme Temperatures: Storing batteries outside the recommended temperature range can accelerate degradation. In particular, high heat can permanently damage the battery's capacity.
Cycle Before Use: After a long storage period, it's good practice to cycle the battery (one full charge and discharge) before putting it back into regular service.

How do I monitor the battery's real-time data?

This battery model does not feature built-in Bluetooth. To monitor its status, you can pair it with a battery monitor.

If you prefer an integrated solution, we recommend our LiTime 12V 100Ah Group 24 Bluetooth Battery, which connects directly to the LiTime App for easy tracking.

REVIEWS

Unfortunate

I’d really like to give a 5 star review because I understand how a poor review looks against your businesses name but 2 stars is the best I can do.

I ordered 3x 12v 100ah Trolling Motor batteries but got sent only 2 and one 24v instead. You can’t mix battery types.

I raised the issue only to be told that they won’t send the 3rd 12v battery until they get the wrong battery back.

If being held to ransom isn’t bad enough, they said all that needs to be done is for them to send me a label and I can send it back and I’m told now by the customer service department (Kandy has been great BTW) that the local Australian warehouse isn’t responding and that was over a week ago.

I’m in a country town and am a week out from having the trolling motor installed with a heavily booked contractor and if I can’t supply the set of batteries I’ll have to wait another 6 weeks because I’ll miss my spot.

Very frustrating.

Got product easy to order

So far so good

Works perfect great packaging and arrived within 3 days. Shame price dropped a week after I purchased but that’s life.

Ian Verrier

Extremely pleased with this product. Will highly recommend to all my friends.
