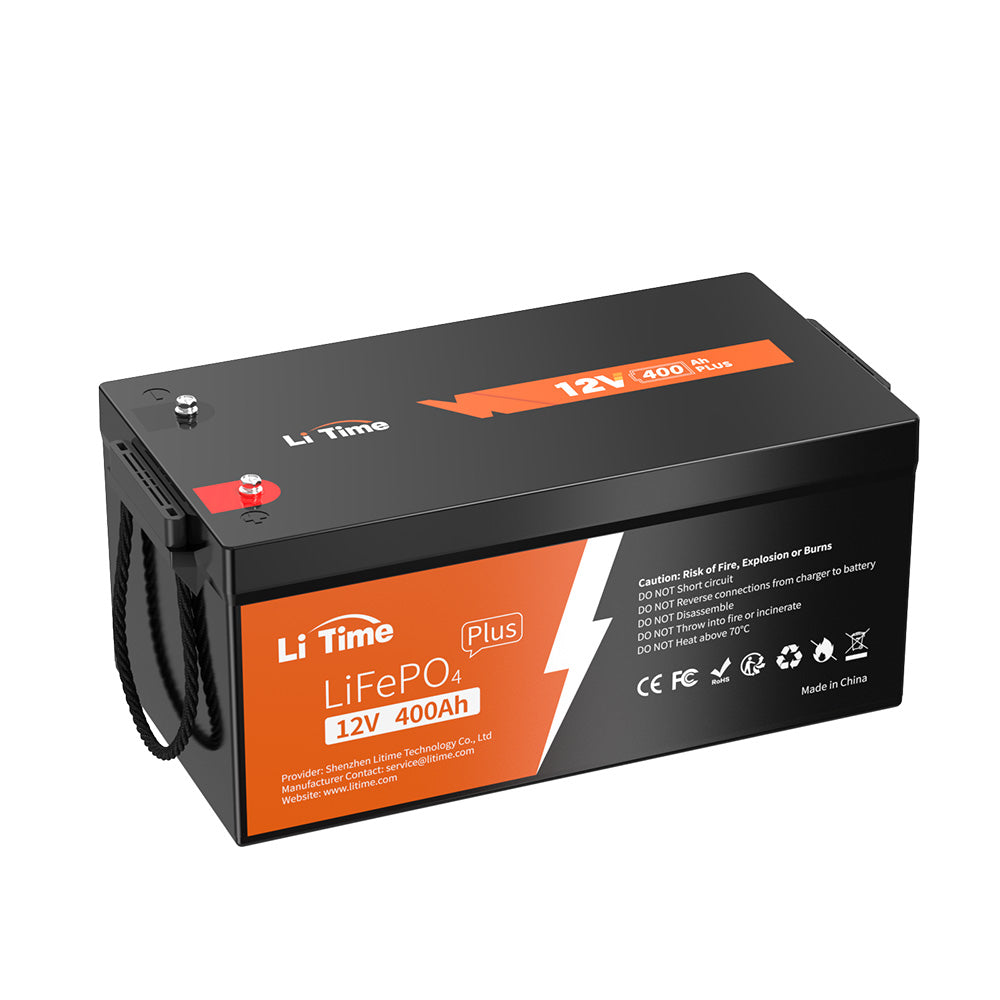

LiTime 12V 400Ah LiFePO4 Lithium Battery with 250A BMS, 5120Wh Usable Energy

A$1,679.99
A$2,599.99
A$1,679.99
Please hurry! Only 9 left in stock
Size: 1 Pack 12V 400Ah
Subtotal: A$1,679.99
Automatic discount
CODE: A$420off copy

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-7 business days.

5 Year Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
LiTime 12V 400Ah LiFePO4 Lithium Battery with 250A BMS, 5120Wh Usable Energy

LiTime 12V 400Ah LiFePO4 Lithium Battery with 250A BMS, 5120Wh Usable Energy

A$2,599.99 A$1,679.99

LiTime 12V 400Ah LiFePO4 Lithium Battery with 250A BMS, 5120Wh Usable Energy

A$2,599.99 A$1,679.99
Size: 1 Pack 12V 400Ah

    SPECS

    BATTERY
    Cell Type:
    LiFePO4 Prismatic
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    12.8V
    Rated Capacity:
    400Ah
    Energy:
    5120Wh
    Max. Expansion (Parallel & Series):
    4P4S
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL, FCC, CE, RoHS, UN38.3

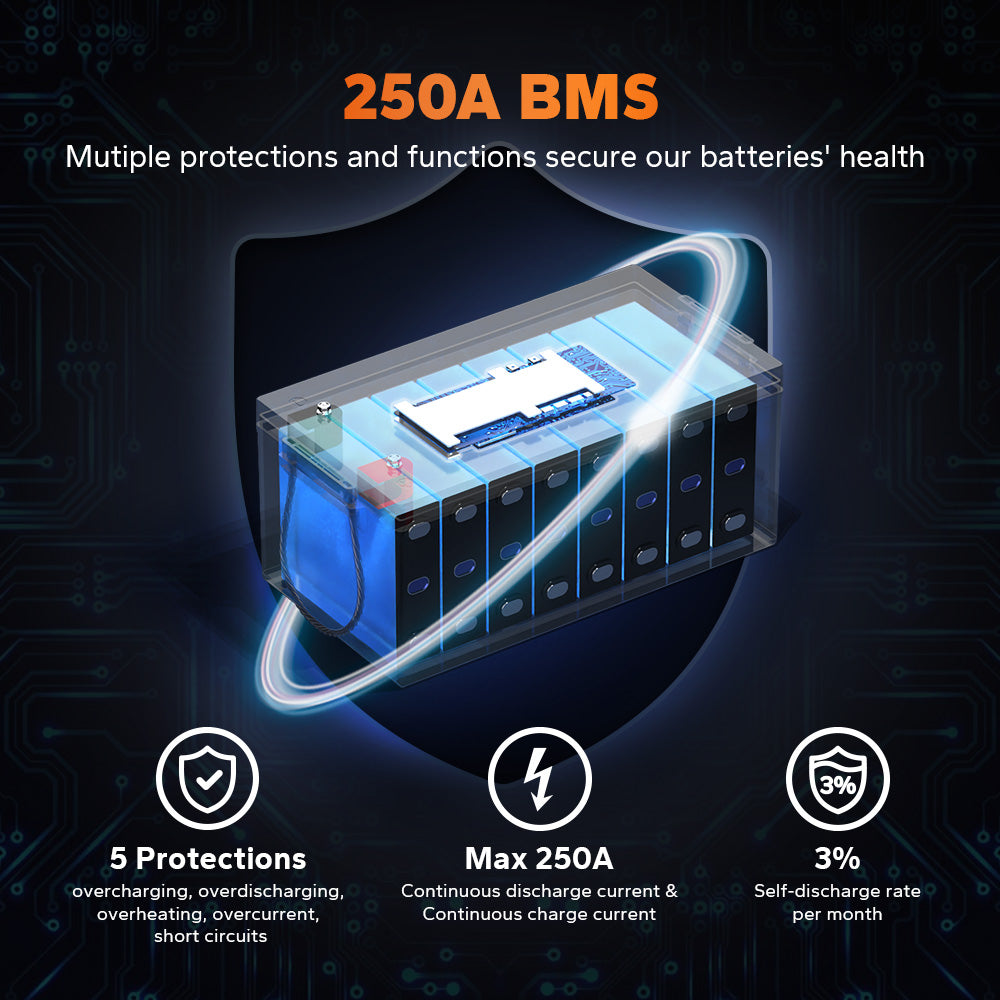

    BMS
    BMS:
    250A
    Max. Continuous Output Power:
    3200W
    Max. Continuous Charge Current:
    250A
    Max. Continuous Discharge Current:
    250A
    Max. Discharge Current 5 Seconds:
    500A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V ± 0.2V
    Recommend Charge Current:
    80A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    Low-Temperature Protection:
    N/A
    Low-Temperature Charging Protection Auto Recovery:
    N/A
    SELF-HEATING
    Heating Temperature:
    N/A
    Approx. Heating Time:
    N/A
    Required Minimum Charge Current for Heating Function:
    N/A
    OTHERS
    Terminals:
    M8 bolts
    Weight Approx.:
    80.25lbs

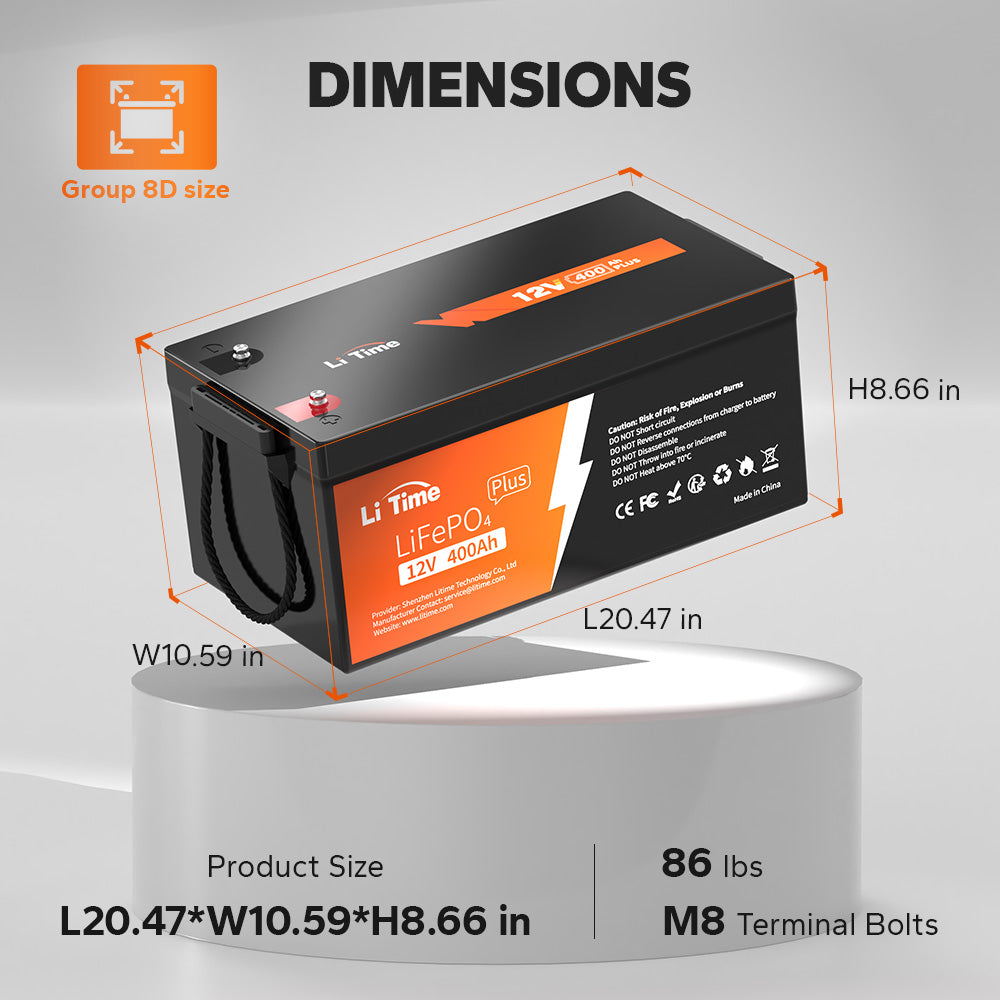

    Size:
    L20.47*W10.59*H8.66 inch
    Housing Material:
    ABS (Flame Retardant Plastic)
    Protection Class:
    IP65

    FAQ

    Q: Are LiTime LiFePO4 batteries safe?

    A:

    Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

    Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

    A:

    No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

    For more information to tell the differeces among these 2 types batteries, read on our blog Deep Cycle VS Starting Battery.

    Q: Can I charge LiTime lithium batteries with solar panels?

    A:

    Yes, you can charge LiTime lithium batteries with solar panels. Here are 3 reliable ways to charge

    1. Using Solar Panels

    The LiTime 12V 400Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 1200W solar panels. It may take more than one day to fully charge the battery by ≥1200W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

    2. Generator/Alternator

    If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.

    The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 80A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 200A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

    3. LiFePO4 Smart Chargers

    To charge 12V battery, it is recommended to use 14.6V battery charger.

    The Recommended Charging Voltage: 14.2V - 14.6V.

    The Recommended Charging Current: ① 80A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 200A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

    Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?

    Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

    A:

    LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 100Ah TM & 230Ah LiFePO4 batteries include low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

    Q: How do I store LiTime LiFePO4 lithium batteries?

    A:

    It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃~35℃ (50℉~95℉), 45%RH~75%RH

    Q: What is the typical application for a 12V 400Ah lithium battery?

    A:

    Typical applications include RVs, marine vessels, solar home energy storage, off-grid power systems and industrial equipment.

    Q: Can this battery be used in series to build a 48-volt system?

    A:

    Yes. LiTime 12V deep cycle lithium batteries can be connected 4 in sereis to create a 48V battery system.

    Note: DO NOT connect batteries with different chemistries in sereis or parallel.

    Related Products

    LiTime 12V 200Ah LiFePO4 Lithium BatteryLiTime 12V 200Ah LiFePO4 Lithium BatteryLiTime 12V 200Ah LiFePO4 Lithium BatteryLiTime 12V 200Ah LiFePO4 Lithium BatteryLiTime 12V 200Ah LiFePO4 Lithium Battery

    Recommended Operating Temperature

    Charging: 32°F ~ 122°F / 0°C ~ 50°C Discharging: -4°F ~ 140°F / -20°C ~ 60°C Storage: 14°F ~ 122°F / -10°C ~ 50°C

    Battery Application

    Do not do not use the battery as a starting battery or power battery for electric vehicles or golf carts.
    It is suitable for the 12V Trolling Motor within 70lbs thrust.

    Recommended Discharging Settings

    Under Voltage Warning:11.6V
    Under Voltage Recover:12V
    Low Voltage Disconnect:10.8V
    Low Voltage Reconnect:12.4V

    Recommended Charging Settings

    Charge/Bulk Voltage:14.4V/14.6V
    Absorption Voltage:14.4V/14.6V
    Over Voltage Disconnect:15V
    Over Voltage Reconnect:14.2V
