EV Grade A LiFePO4 Cells
4000+ Cycles at 100% DOD & 10+ Years Lifetime
100% BMS Protection & 3% Low Self-discharging Rate
1280Wh of Large Energy, 1280W of High Output Power
24.25 lbs, 1/5 the Weight of 12V 200Ah Lead-acid Batteries, but same energy
3 Charging Ways & 10X Charging Efficiency
Flexible in Series and Parallel (Max 4S4P, up to 20.48kWh)

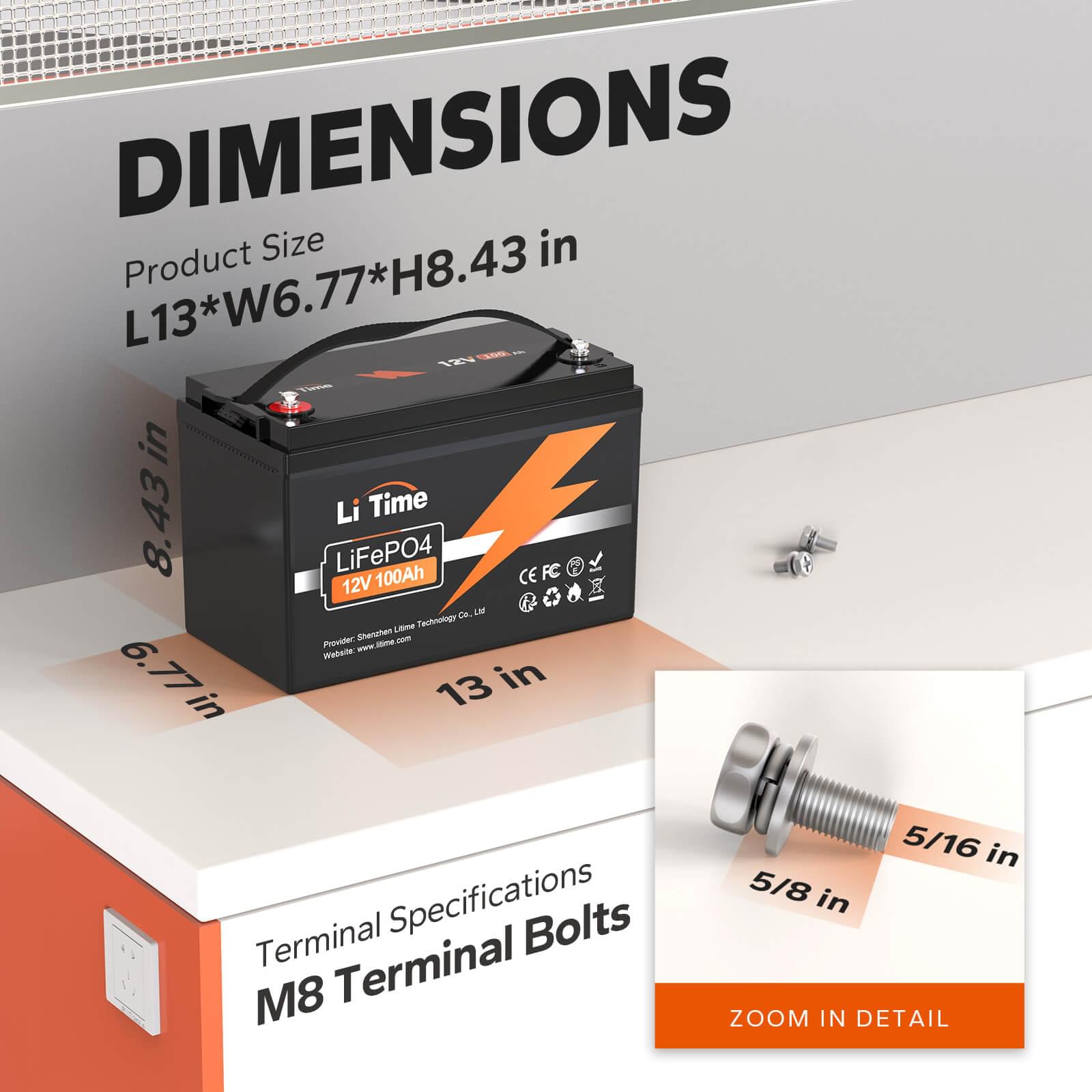

Group 31 Battery Size (L33.02*W17.2*H21.4 cm )
Suitable for RVs/30~70 lbs Trolling Motors, Solar, Home Energy Storage, Off-grid
IP65 Waterproof
Clean/Eco-friendly/ Cost-effective
Certified by UL, FCC, CE, ROSH, UN38.3
Reliability, Durability and Longevity

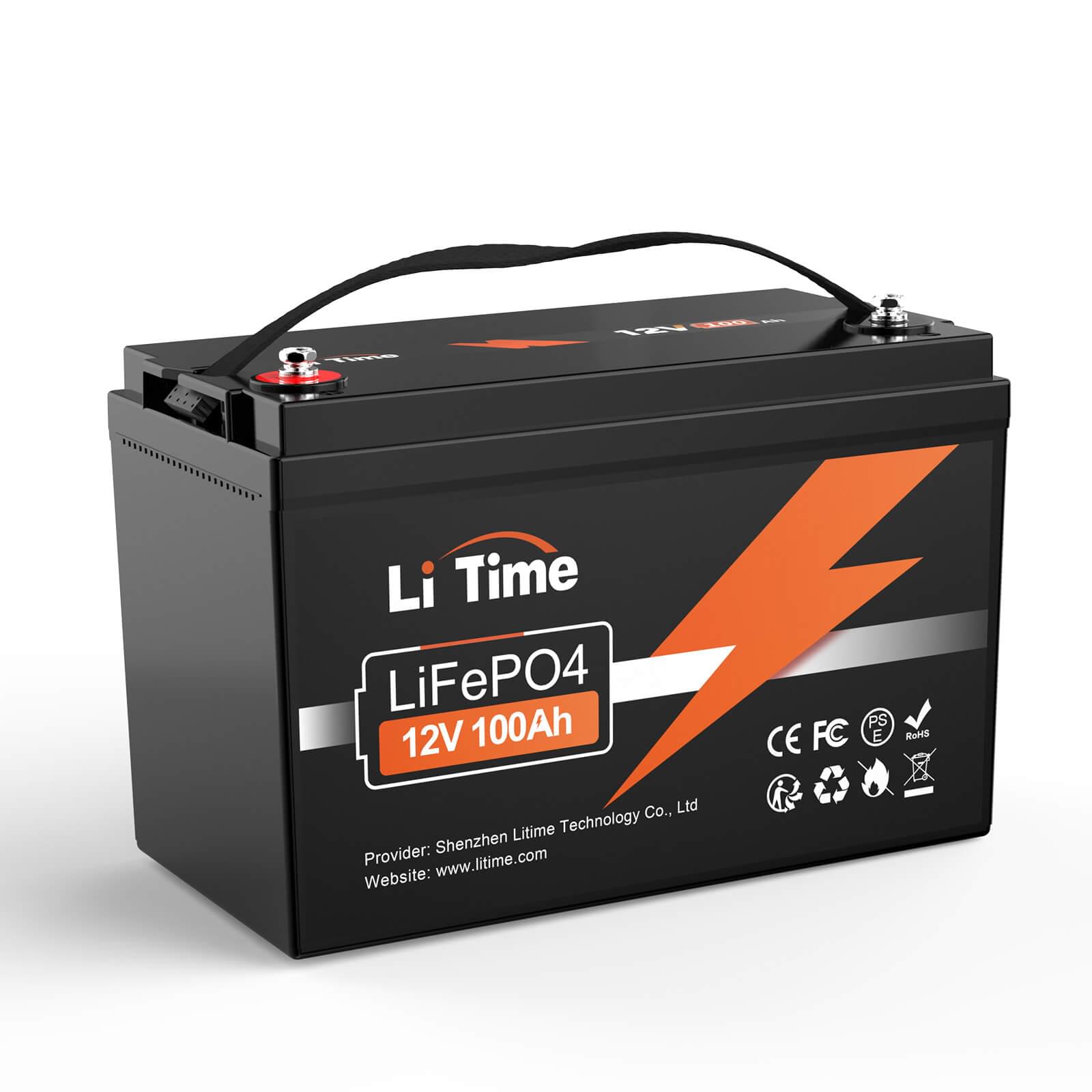

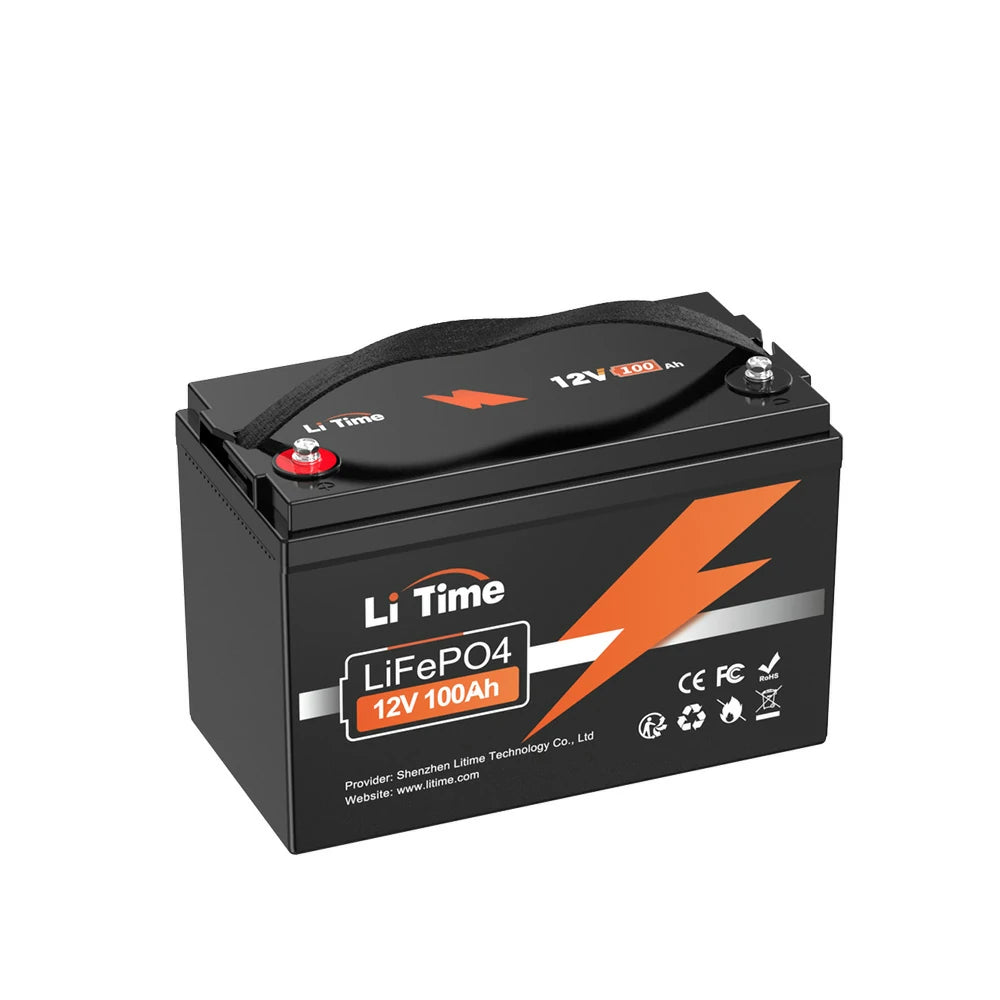

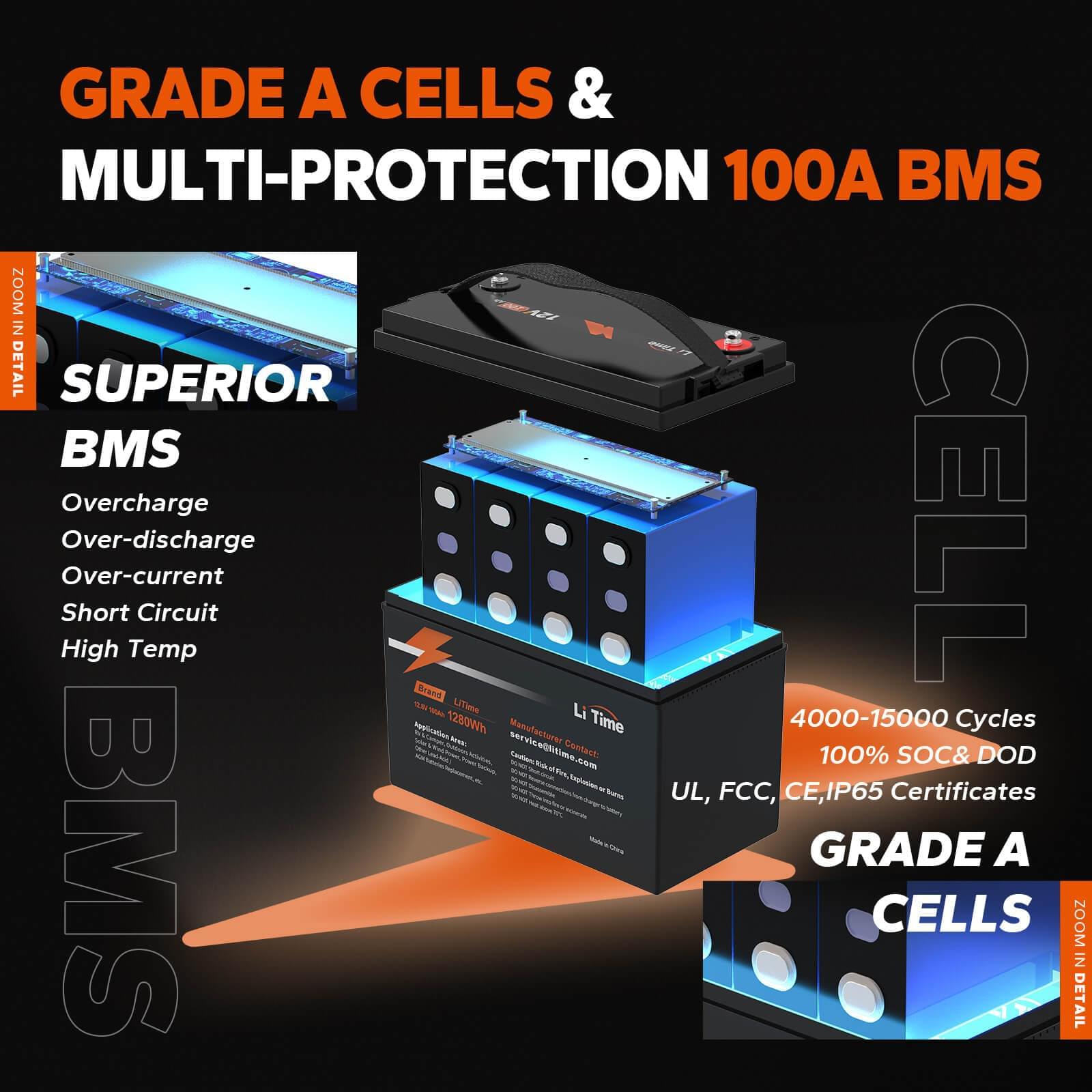

The LiTime 12V 100Ah lithium battery applies Automotive Grade A LiFePO4 Cells and a built-in 100A BMS, which offer excellent performance, unbeatable safety and massive power. More reliable and safer on indoor or outdoor installations and applications.
Power to Last, Enjoy the Best
Designed with durability and convenience in mind, LiTime 12V 100Ah LiFePO4 battery uses a Grade-A cell and is capable of 1280Wh energy, a 5X lifetime. It provides 4000+ cycles at 100% DOD and a 10-year lifetime to meet your indoor power demands and elevate outdoor adventures. These clean and cost-effective lithium batteries can be your best power solutions for their renewability.
Safety First
Compared to traditional batteries, LiTime 12V 100Ah LiFePO4 battery has advantages due to its built-in 100A BMS, giving you excellent performance and guaranteeing around 4000+ life cycles. Its impressively 3% low self-discharging rate prolongs its storage time greatly. The BMS can protect your devices from potential risks all the time.

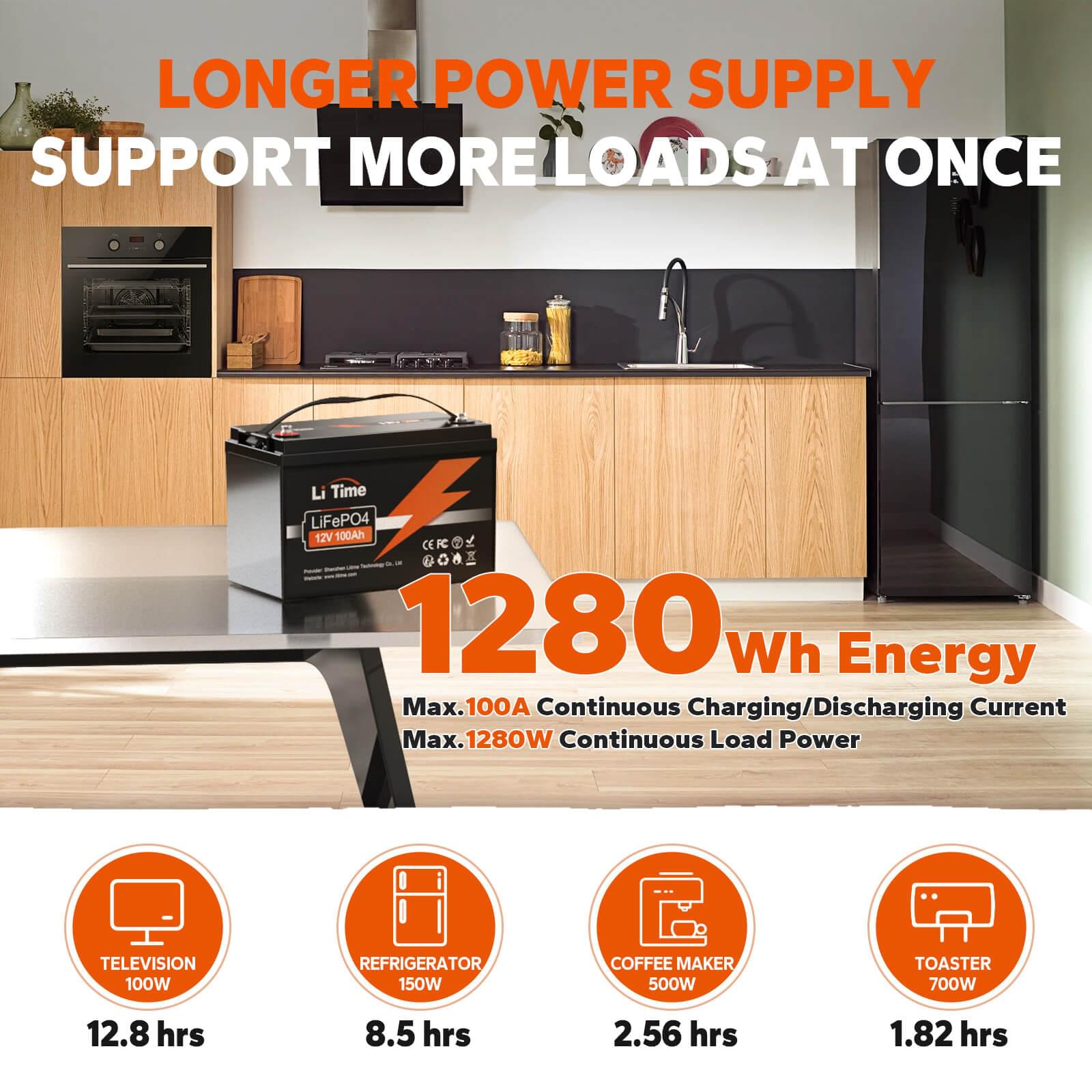

Go as Your Heart Desires
1280 Wh energy and 1280W power loads meet your indoor power demands and elevate your outdoor adventure experience. Partners from Now Until Forever. Over a 10-year lifespan provides longer companionship.

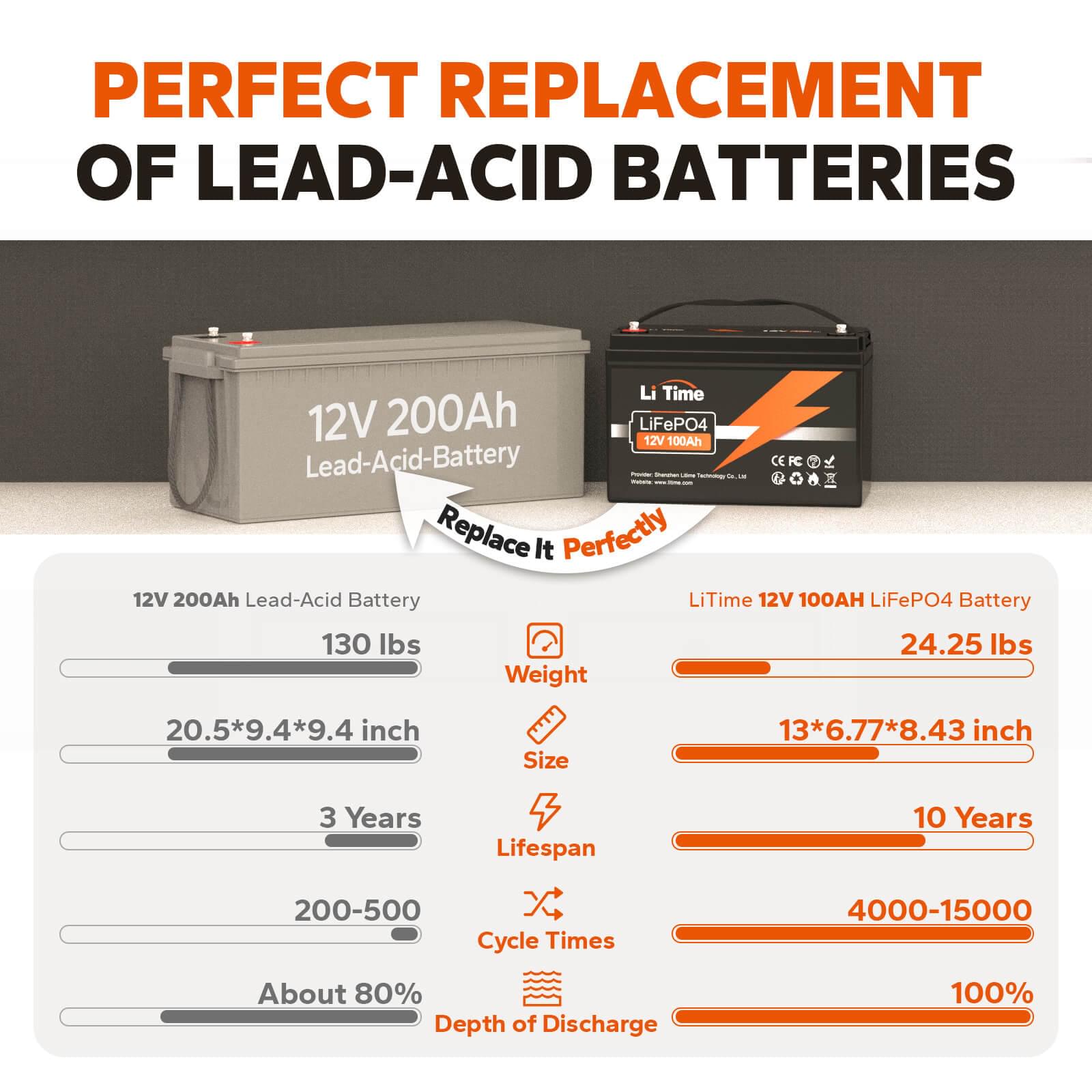

Perfect Replacement of Lead-acid
Weighing at only 24.25 lbs, the 12V 100Ah LiFePO4 battery is easy to carry to any adventures. Compared to a 12V 100Ah Lead-acid battery, it is 2X energy and 1/3 the weight of traditional batteries, convenient to power all your needs anywhere.
No Limits to Your Journeys——Unlock the World and Go Where You Aspire
LiTime 12V 100Ah LiFePO4 battery can support 4P4S to build a 51.2V 400Ah battery system. This large system can release 20.48kWh of energy, which is sufficient to power your indoor activities and ourdoor fun. You can customize your power solutions according to your needs. Ultra-power takes the Stress Out of Life and Journey with Ease.
Versatile for Your Needs

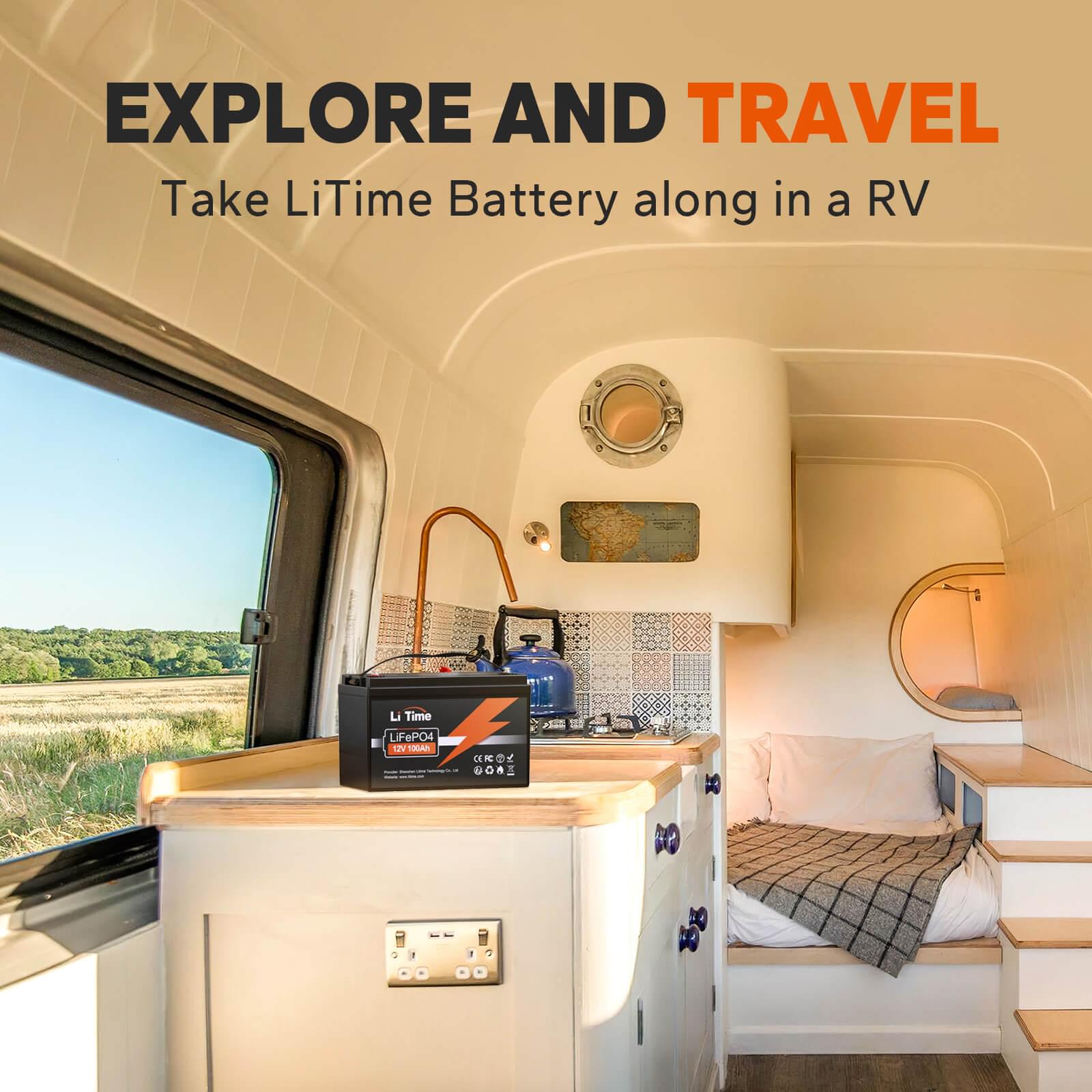

Designed for powerful and portable, LiTime is light to carry and reliable to power your devices anywhere. Ideal for RVs, camping, solar, home energy storage, trolling motor and off-grid applications.
Three Charging Ways
Faster and more convenient to charge LiTime 12V 100Ah LiFePO4 battery!
LiFePO4 battery charger, solar panel, or generator can be your options. These safe and advanced charging ways save you time to enjoy a better life.
Precautions for Usage
Tips for a better using experience and batteries' health.
Enjoy Excellent Service
Customer priority, we promise to deliver your items to destinations in 2-5 business days to help you enjoy a better life. Considerable online service is provided by us as well.
We provide customers with professional technical support, a considerable return policy, comprehensible operation manuals and 24-hour timely online services.
Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System, which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.
This lithium battery is a deep cycle powerhouse, perfect for providing long-lasting energy to your electronics and trolling motors. However, it is not designed to deliver the high-cranking amps needed to start an engine.
If you need a battery for marine starting, the ideal choice would be our LiTime Dual-Purpose 1000CCA Battery.
LiTime 12V 100Ah lithium battery is a powerful replacement for group 31 batteries due to its larger capacity than traditional AGM or Lead Acid group 31 batteries. It has a 100Ah capacity and 1280Wh energy, leaving you peace of mind to handle various situations.
Being the utmost replacement for the group 31 batteries, LiTime 12V 100Ah deep cycle LiFePO4 battery, weighing 24.25 lbs, is 1/5 the weight of a 12V 200Ah lead acid battery (about 130lbs) but equivalent in energy.
Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. There are 3 ways to charge.
1. Using Solar Panels + Solar Charge Controller
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 400W solar panels. It may take more than one day to fully charge the battery by ≥400W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
Besides solar panels, there are 2 more ways to charge.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use the charger designed for LiFePO4 batteries.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
You can charge the LiTime 12V 100Ah lithium battery with a 12V 10Ah or 12V 20Ah charger, and a full charge will take 10 hours and 5 hours respectively.
Please be aware that this model does not featured low-temp protection and should only be charged when the battery's temperature is above 32°F (0°C). Charging in freezing temperatures will damage the cells. On cold days, the best practice is to bring the battery indoors to charge.
Proper storage is the key to ensuring your LiTime LiFePO4 battery delivers years of reliable performance. Follow these simple steps to protect your investment when the battery is not in use.
1. Aim for a 50% Charge
Before storing, bring your battery to approximately 50% State of Charge (SOC). Avoid leaving it fully charged or completely empty. For storage longer than three months, simply recharge it back to 50% every 3 months to keep the cells healthy and balanced.
2. Disconnect from Your System
Ensure the battery is completely disconnected from all chargers and devices (loads). This prevents "phantom drains" that can slowly deplete the battery and cause irreversible damage over time.
3. Find the Right Environment
Store your battery in a cool, dry, and stable location.
4. Keep it Protected
We recommend storing your battery in a battery box. This shields it from moisture, dust, and accidental impacts, ensuring it's in perfect condition when you need it next.
5. "Waking Up" After Storage
After a long storage period, it's best practice to "wake up" the battery with one complete cycle (a full charge followed by a full discharge) before putting it back into regular service.

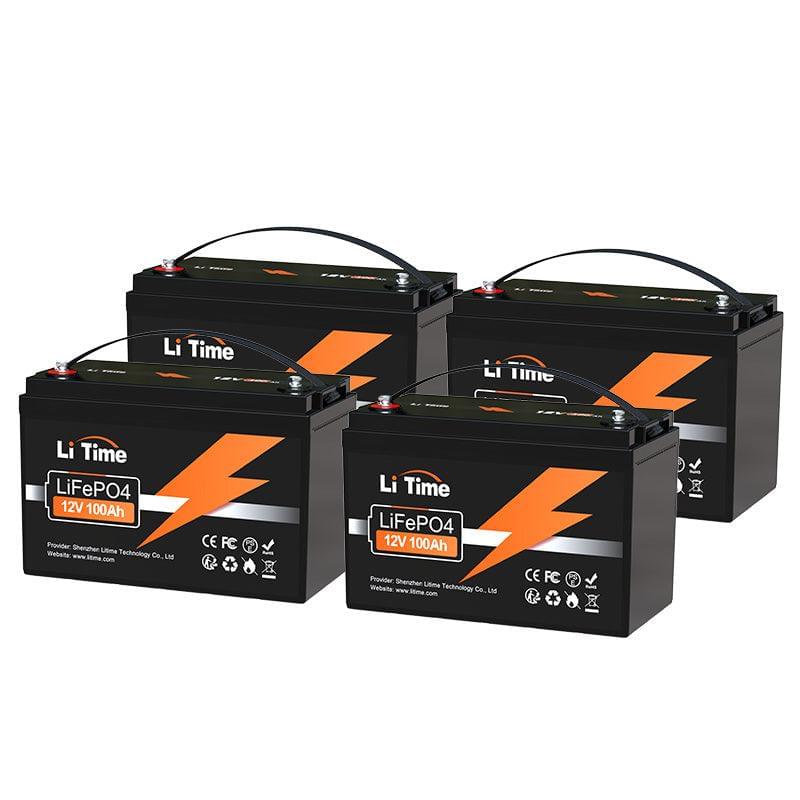

For versatile system configurations, you can connect multiple LiTime 12V 100Ah LiFePO4 batteries.
You can expand your battery bank's voltage and capacity by connecting identical batteries:
⚠️ Critical Connection Requirements
To ensure safety, performance, and longevity, all batteries in a connected bank must meet these conditions:
