LiTime 12V 100Ah Mini LiFePO4 Lithium Battery

A$475.20
A$619.99
A$475.20
Please hurry! Only 11 left in stock
Size: 1 Pack (Pre-order- In stock around Oct 17th)
Subtotal: A$475.20

【Stock is expected on Oct 17th】

The goods are still in transit, and the battery will be in Australia on Oct 17th. Thanks for your patient waiting. You can cancel your order at any time. Thank you.

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-7 business days.

5 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns

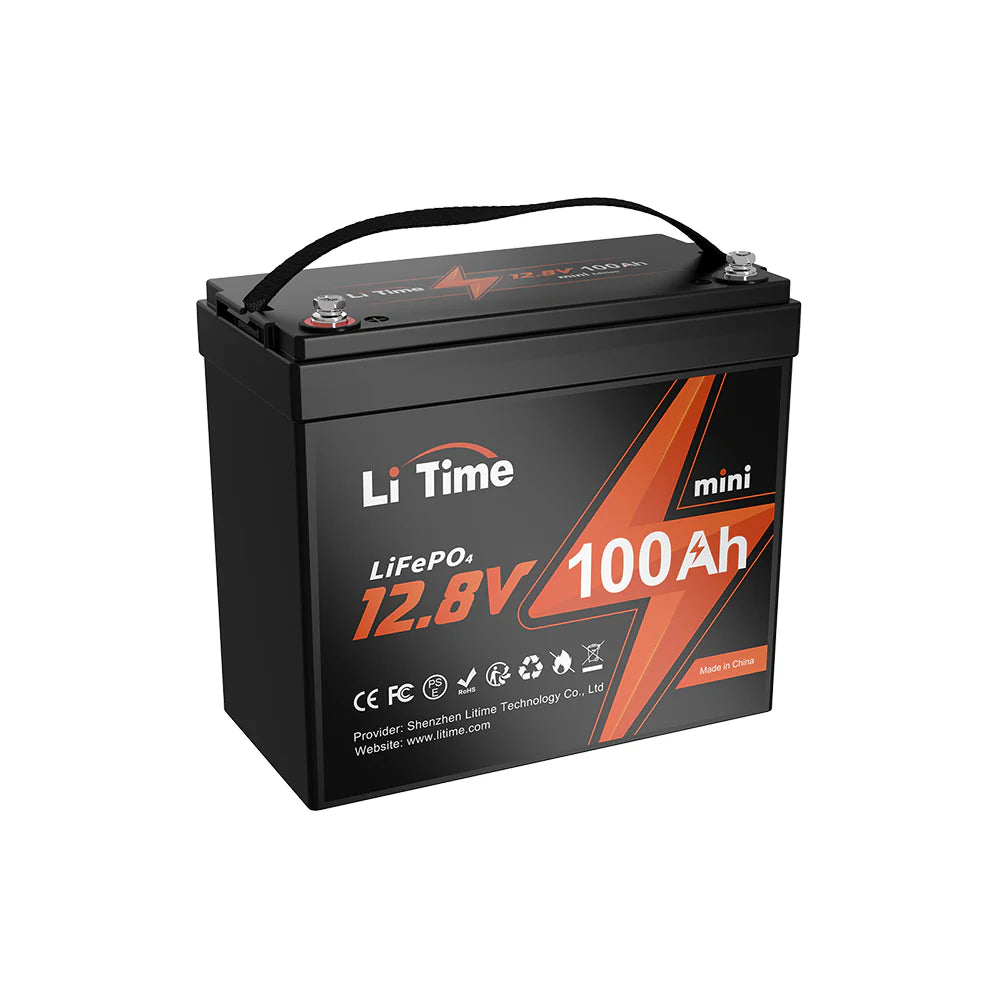

LiTime 12V 100Ah Mini LiFePO4 Lithium Battery

LiTime 12V 100Ah Mini LiFePO4 Lithium Battery

A$619.99 A$475.20

LiTime 12V 100Ah Mini LiFePO4 Lithium Battery

A$619.99 A$475.20
Size: 1 Pack (Pre-order- In stock around Oct 17th)

    The LiTime 12V 100Ah Mini is the capacity-leading flagship delivering the highest energy density in LiTime history and even the whole industry. Protected all around by the powerful 1st Gen LiTime BMS, LiTime 12V 100Ah Mini is taken with the latest technology that redefines the size of the LiFePO4 battery!

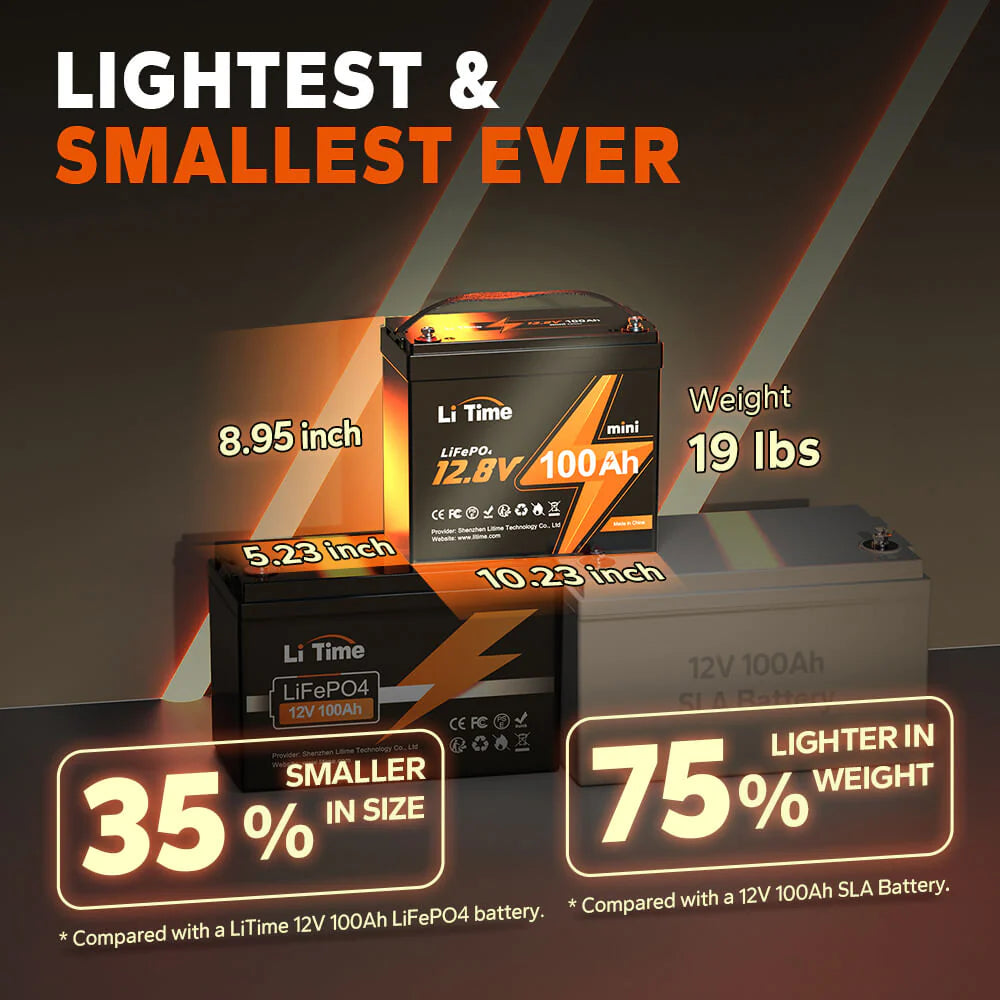

    Mini in Size, Max on Power

    10 years of R&D strength sets up the industry benchmark for the new generation of LiFePO4 battery: denser, lighter, smaller, more powerful, and not overpriced! Industry smallest & lightest 12V 100Ah LiFePO4 battery ever, with max 20.48Wh (4P4S) capacity for expansion, ready to power you all up safely and enough on the way or at home.

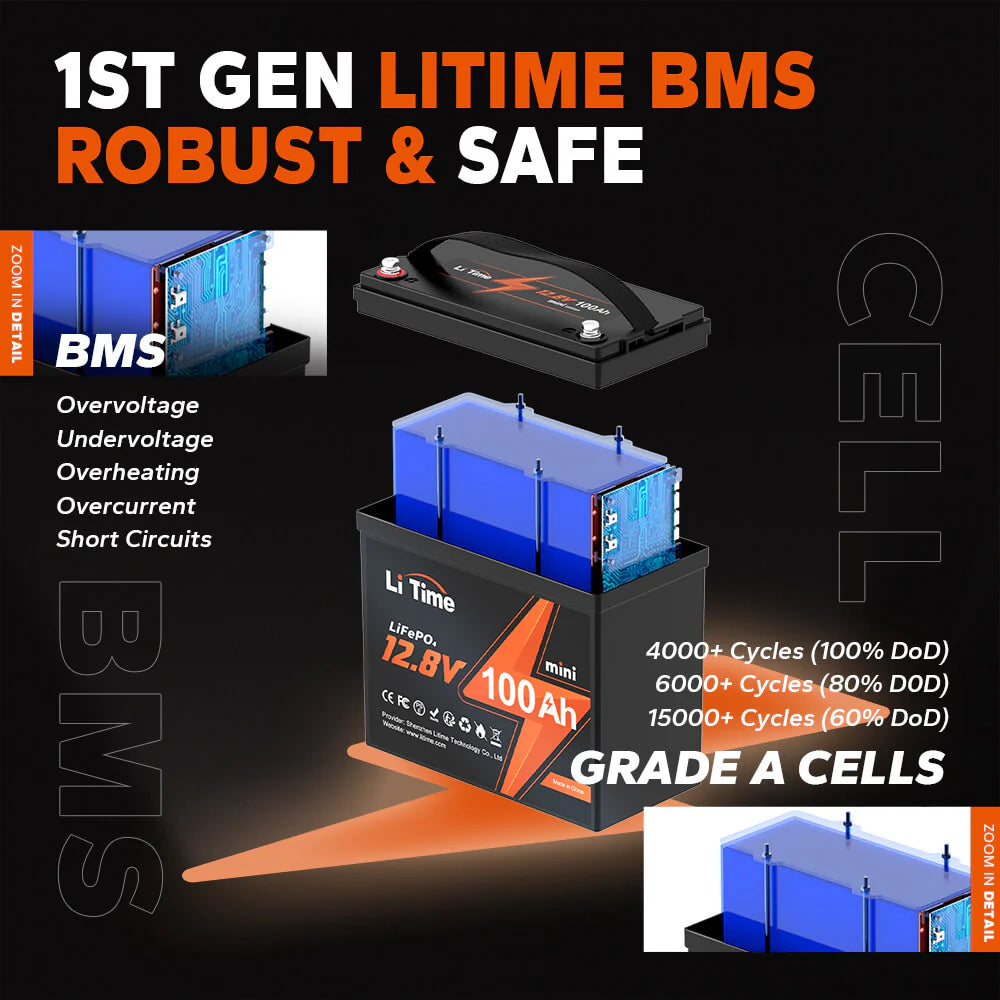

    1st Gen LiTime BMS, 4000+ Life Cycles

    The latest LiTime self-developed BMS provides full safety protection for overvoltage, undervoltage, overheating, overcurrent and short circuits, ensuring ultra-reliability and safety of the battery. The upgraded auto-balancing technique improves the battery life by maximizing the capacity of a battery pack with multiple cells in series, backing up that all batteries deliver life cycles from 4000+ (100% DoD) to 15000 cycles ( 60% DoD). That’s pretty much 10 years of everyday use.

    Expandable 20.48KWh for Every Need

    The LiTime 12V 100Ah Mini LiFePO4 battery supports a maximum expansion capacity of 20.48Wh (max 4P4S battery connected in series and parallel to build a 48V(51.2V) 400Ah battery system), so you can have more flexibility in getting a DIY battery system to cover all your needs.

    All-New Design, Outside & In

    The LiTime first-ever cell layout design leads the way in cutting off the battery size while allowing for compact and precise fitment for battery safety, with no loss in any performance. The matte-finish, heat-resistant, and IP65 waterproof design give the battery a much higher tolerance in extreme applications. Whether you are bumpy on the road or on the water, LiTime 12V 100Ah Mini gives you an ultimate safe experience.

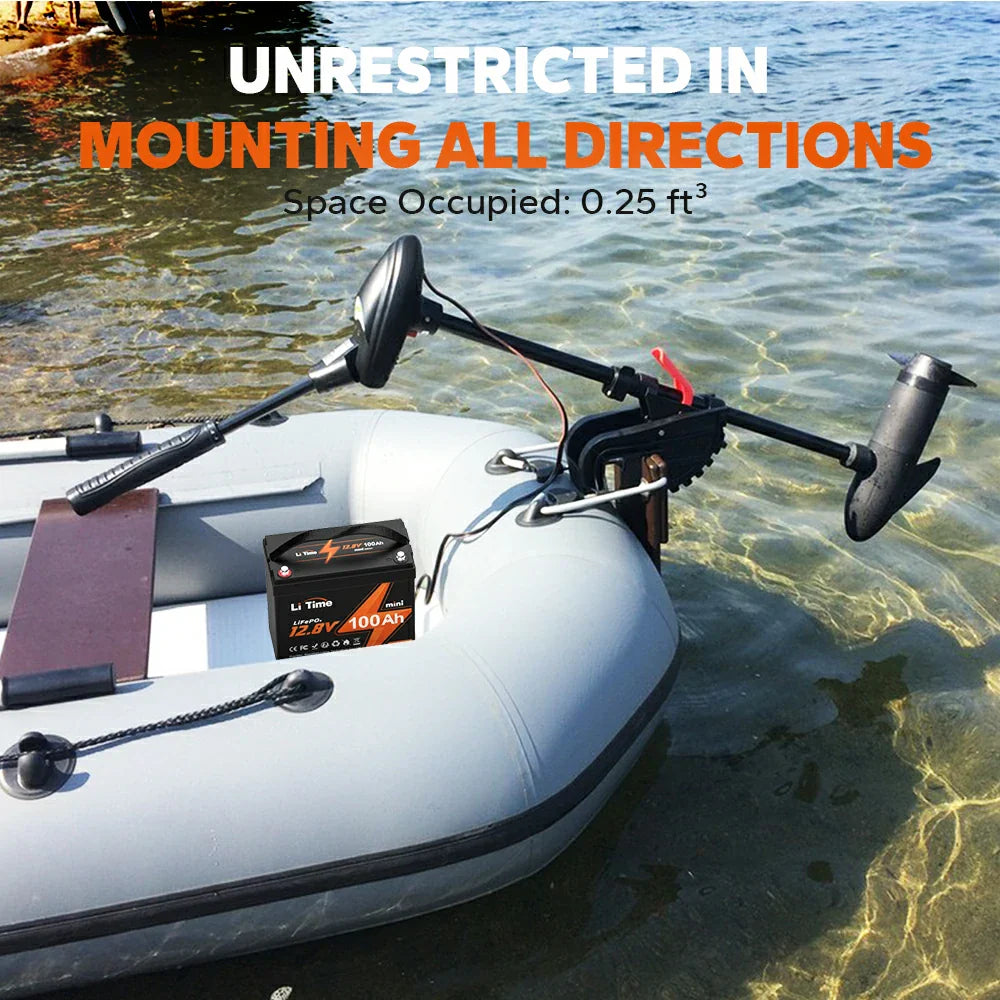

    Every Direction Mounted, Even Upside Down

    The optimum internal design, compact structure, and overall casting make the 12V 100Ah Mini a rock-solid reliability, backed up by LiTime’s rigorous tolerance tests to make the battery the safest ever. This gives you the flexibility to install the battery in any direction right where you need them or where it is best suited for your application, and never get damaged on the bumpy road.

    3 Ways to Recharge


    With 3 different ways to top up the battery, LiTime gives you a cost-effective renewable energy source to stay powered.

    Power Your Life and Discovery

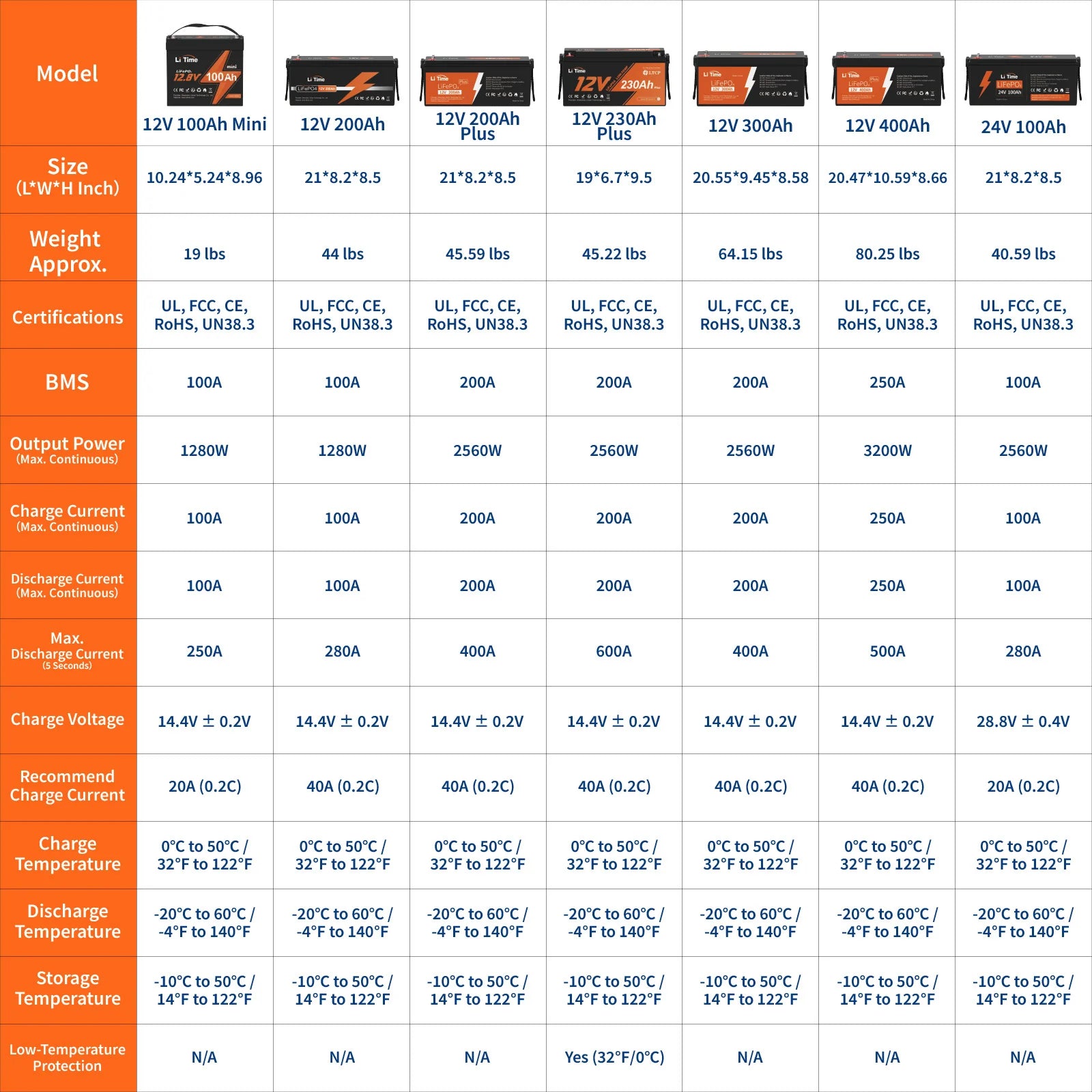

    SPECS

    BATTERY
    Cell Type:
    LiFePO4
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    12.8V
    Rated Capacity:
    100Ah
    Energy:
    1280Wh
    Max. Expansion (Parallel & Series):
    4P4S
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL, FCC, CE, RoHS, UN38.3
    BMS
    BMS:
    100A
    Max. Continuous Output Power:
    1280W
    Max. Continuous Charge Current:
    100A
    Max. Continuous Discharge Current:
    100A
    Max. Discharge Current 5 Seconds:
    250A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V ± 0.2V
    Recommend Charge Current:
    20A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    OTHERS
    Terminals:
    M8 bolts
    Weight Approx.:
    19 lbs
    Size:
    L10.24*W5.24*H8.96 inch
    Housing Material:
    ABS
    Protection Class:
    IP65

    FAQ

    Q: What battery charger should I use for the LiTime 12V 100Ah Mini LiFePO4 lithium battery?

    A:

    We recommend using a 14.6V lithium iron phosphate (LiFePO4) battery charger to maximize the capacity.

    ☆ Recommend charging voltage: 14.2V ~ 14.6V

    ☆ Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity.

    50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.

    Attention: ☆ Connect the charger to the battery before connecting it to the grid power in case of sparks.

                    ☆ Remember to disconnect the charger from the battery after fully charging.

    Q: Can I use an alternator or generator to charge the LiFePO4 lithium battery?

    A:

    Yes. You can use your alternator or generator to charge LiTime batteries. If your alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, you can use a 14.6V lithium iron phosphate (LiFePO4) battery charger to maximize the capacity.

    Q: Are LiTime LiFePO4 Lithium batteries safe?

    A:

    Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

    Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

    A:

    No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.


    Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?

    A:

    Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. You should size your charge controller based on the voltage and current output of your solar array setup. That will ensure that your charge controller can process and regulate the power coming from your solar panels. Take a 24V MAX. 22 amps output solar system as example. You would need a solar charge controller that can handle 24 volts and 27.5 amps (125% of your max current output).

    Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

    A:

    LiTime 12V 100Ah mini LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). Please note that the 12V 100Ah mini version does not include low-temperature charging protection function.

    Q: How do I store LiTime LiFePO4 lithium batteries?

    A:

    It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, recharge the batteries at least every 3 months. Recommended storage environment: 10℃~35℃ (50℉~95℉),45%RH~75%RH
