The like-new batteries were purchased by customers who mistakenly bought the wrong capacity or incompatible batteries for their applications. We assure you that our batteries are thoroughly checked and tested before delivery ( only a few have minor scratches on the surface). May be missing accessories (e.g., user manual, bolts). Please contact us directly with any questions prior to purchase.

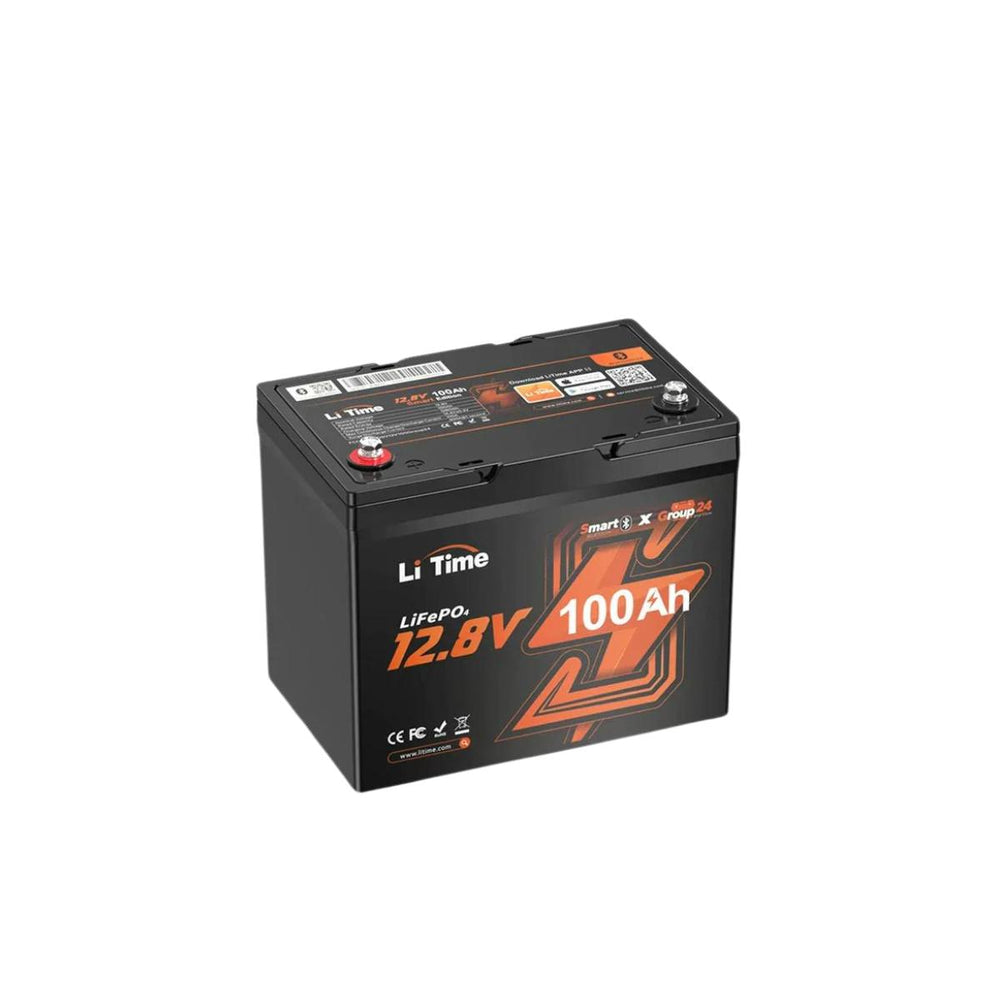

LiTime brand-new group 24 Bluetooth LiFePO4 battery propels industry-advancing innovations in performance, safety, energy efficiency and energy density. It demonstrates LiTime's continued drive to push the boundaries of lithium battery industry.
Quality and Technology, Pushing Beyond Limits
Litime has been committed to advancing lithium iron phosphate battery technology through dedicated research and development. Through rigorous analysis and experimentation, Litime experts have developed deep insight into all aspects of battery performance, safety and reliability. We stand ready to power our future with its industry-leading solutions.
Self-Developed BMS, LiTime's Latest, Best & Greatest
The advanced 100A battery management system (BMS) has 20+ protections and warnings, majorly including smart Bluetooth, low-temp charging cut-off protection, over-voltage protection, low-voltage protection, over-current protection with auto recovery function, over-temp protection, low-temp protection, short-circuit protection, overload protection and pre-charging function with 30mF capative load, which enable it to operate stably, intelligently and safely.
Smart Bluetooth, Remote Genius at Your Fingertips
LiTime's latest 12V100Ah Group 24 Smart LiFePO4 battery is equipped with Smart Bluetooth 5.0. You can connect the LiTime APP to monitor the battery's overall status and data in real time, including SOC, charge/discharge/idle state, battery voltage, current, Power, remaining capacity, battery temperature and life cycles, scan the battery barcode to connect it automatically and use it to control discharge or turn it off.
Rigorously Tested, Routinely Trusted
With the Bluetooth FCC\CE-RED cert. and passing the tests of EMC and RF, Bluetooth 5.0 has a stable connection between Bluetooth and battery and reduces signal interference from the outside to enhance the signal. Its stability gives you convenience, peace of mind and comfort.
Low-Temp Cut-off Protection
LiTime 12V 100Ah Group 24 Smart LiFePO4 battery with low-temp charging cut-off protection can intelligently cut off charging at ＜0℃ and stop discharging at ＜ -20℃, effortlessly protecting your battery.
Unbeatable Quality, Setting New Standards
Equipped with automotive Grade-A prismatic cells, the 12V100Ah Group 24 Smart LiFePO4 battery is more powerful in stress resistance and heat dissipation. The advanced cells offer over 4000+ life cycles @100%DOD, and their exceptional lifespan gives you long-lasting companionship.
Unmatched Energy, Strength Like No Other
We represent the true battery capacity and performance without exaggeration. The battery offers 1280Wh of energy and 1280W Output Power to meet your daily needs. It has a 100A charge/discharge current and a 500A@1 Second peak discharge current, which makes it able to withstand larger surges and start heavy loads.
Mighty Energy, Minimal Size
Sizing L26*W16.7*H21 cm, it is equivalent to group 24 battery size and saves up to 25% space than 12V 100Ah lead-acid battery, but releases 200% energy.
Solution for Every Situation
Connect batteries easily and safely to expand Max. 20.48kWh usable power. With a pre-charging function, which can carry a 30mF capative load, it can be used for RVs, trolling motors, off-grid and home storage with confidence.
Three Charging Ways
Charge the LiTime 12V 100Ah Group 24 Smart LiFePO4 battery faster and more conveniently than ever before! This powerful lithium battery can be recharged via LiFePO4 charger, solar panel or generator - providing flexible fueling however you need.
Precautions for Usage
Tips for a better using experience and batteries' health.
Trust Is Our Foundation, Excellence Is Our Promise
Trusted Power for Every Journey
The 12V 100Ah deep cycle group 24 smart lithium battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the LiTime App.
Please charge the Bluetooth battery first after receiving it. This will ensure that the battery can be turned on and the Bluetooth connection is established. (Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC charger or MPPT to charge the battery and turn on the battery, it can be used normally.)
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
Yes, this battery has low-temperature charging-off protection. It's recommend to charge the battery during the temperature range: 0℃ to 50℃ / 32℉ to 122℉.
The 12V lithium battery from LiTime supports maximum connections of 4 in series and 4 in parallel. Allow you to build up a maximum battery system of 16 battery units with 20.48kWh Max. capacity and 20.48kW of Max. power.
Note: To connect in series or /and parallel, batteries should meet the below conditions:
a. identical batteries with the same battery capacity (Ah) and BMS (A);
b. from the same brand (as lithium battery from different brands has their special BMS);
c. purchased in near time (within one month)
1. Using Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 400W solar panels. It may take more than one day to fully charge the battery by ≥400W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
The main difference between a LiTime Group 24 and Group 31 battery lies in their physical size. Group 24 batteries are generally smaller compared to Group 31 batteries.
We recommend mounting it upright with the poles facing up. It is important to pay attention that the front and top are not facing down.
Apple APP Store and Google play. Download and open the app to directly scan the QR code and connect the battery or search for nearby Bluetooth batteries.
It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, recharge the batteries at least every 3 months. Recommended storage environment: 10℃～35℃ (50℉～95℉），45%RH～75％RH.
