LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU

1 / 0

Features

IP-65 Waterproof

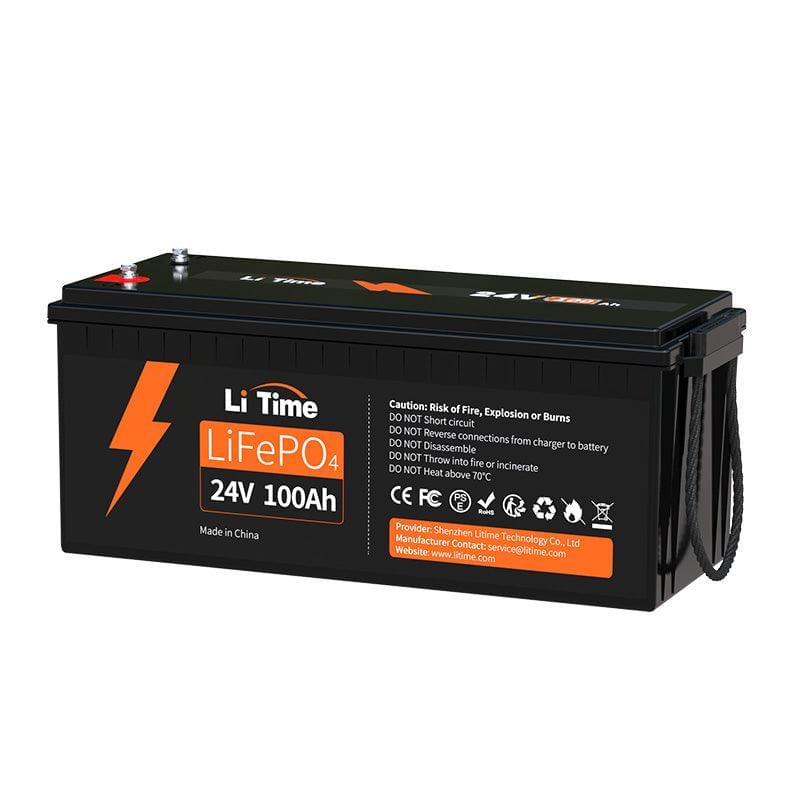

LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy

A$739.99

A$1,299.99

43% OFF

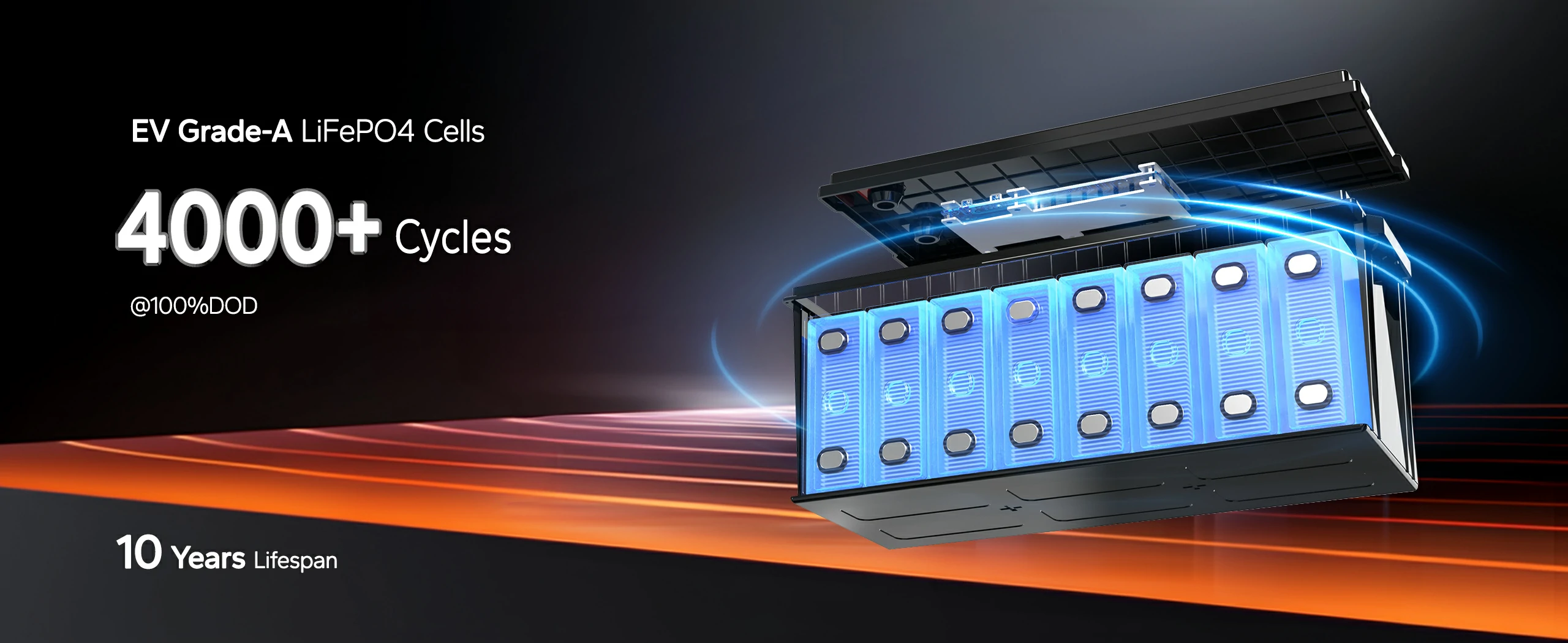

Automotive Grade LiFePO4 Cells: LiTime 24V 100Ah Lithium Iron Phosphate (LiFePO4) batteries have exceptional quality since they are assembled by Automotive Grade LiFePO4 Cells with UL certificated, which have higher energy density, more stable performance, greater power, and excellent 3% self-discharge rate.

100% DOD & 10-year lifetime: LiTime LiFePO4 battery provides 4000~15000 cycles, which is more than 10 times to Lead Acid with 200~500 cycles. LiTime LiFePO4 battery can realize 100% SOC&DOD and has a 10-year service life, 3 times longer than the Lead Acid battery’s 3-year lifespan.

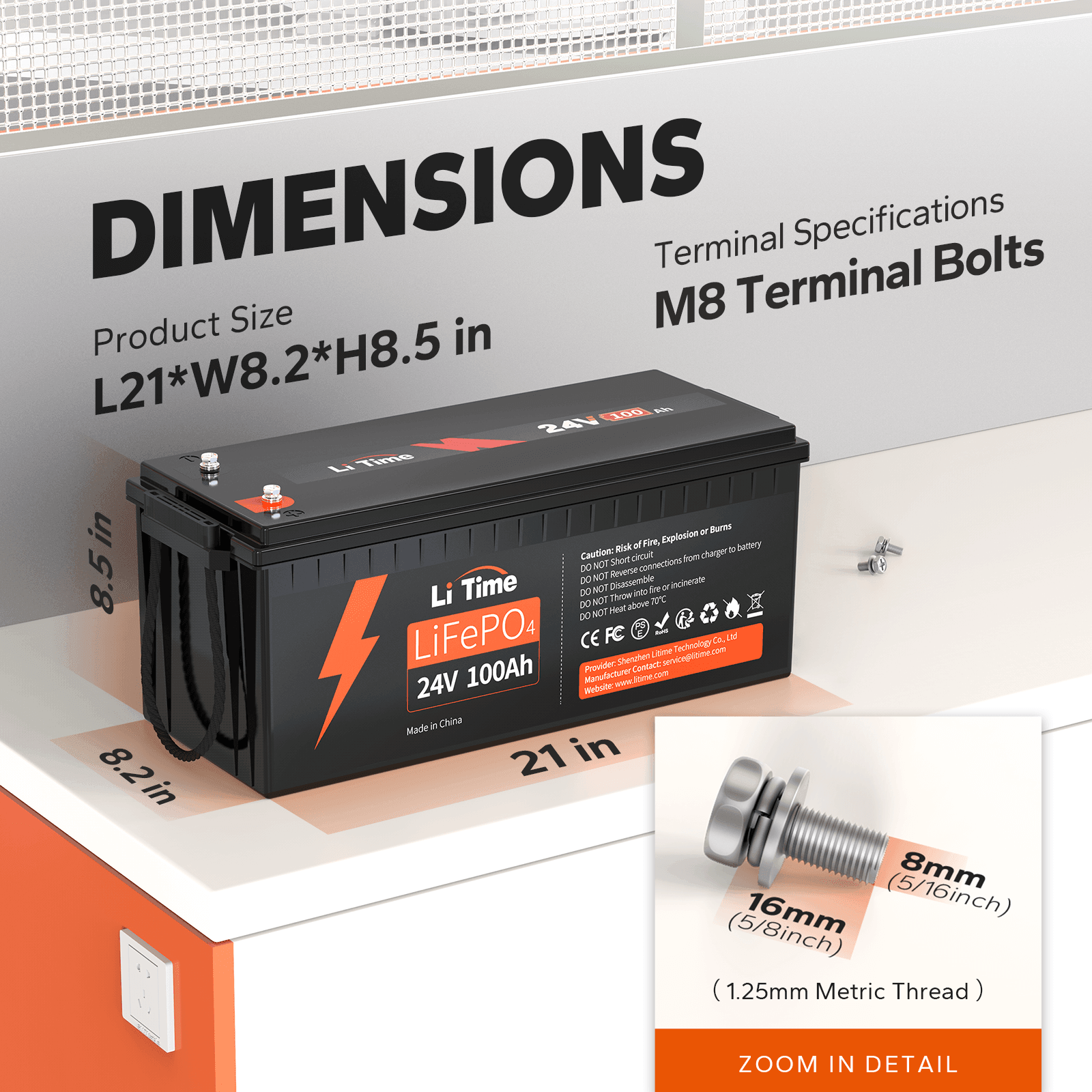

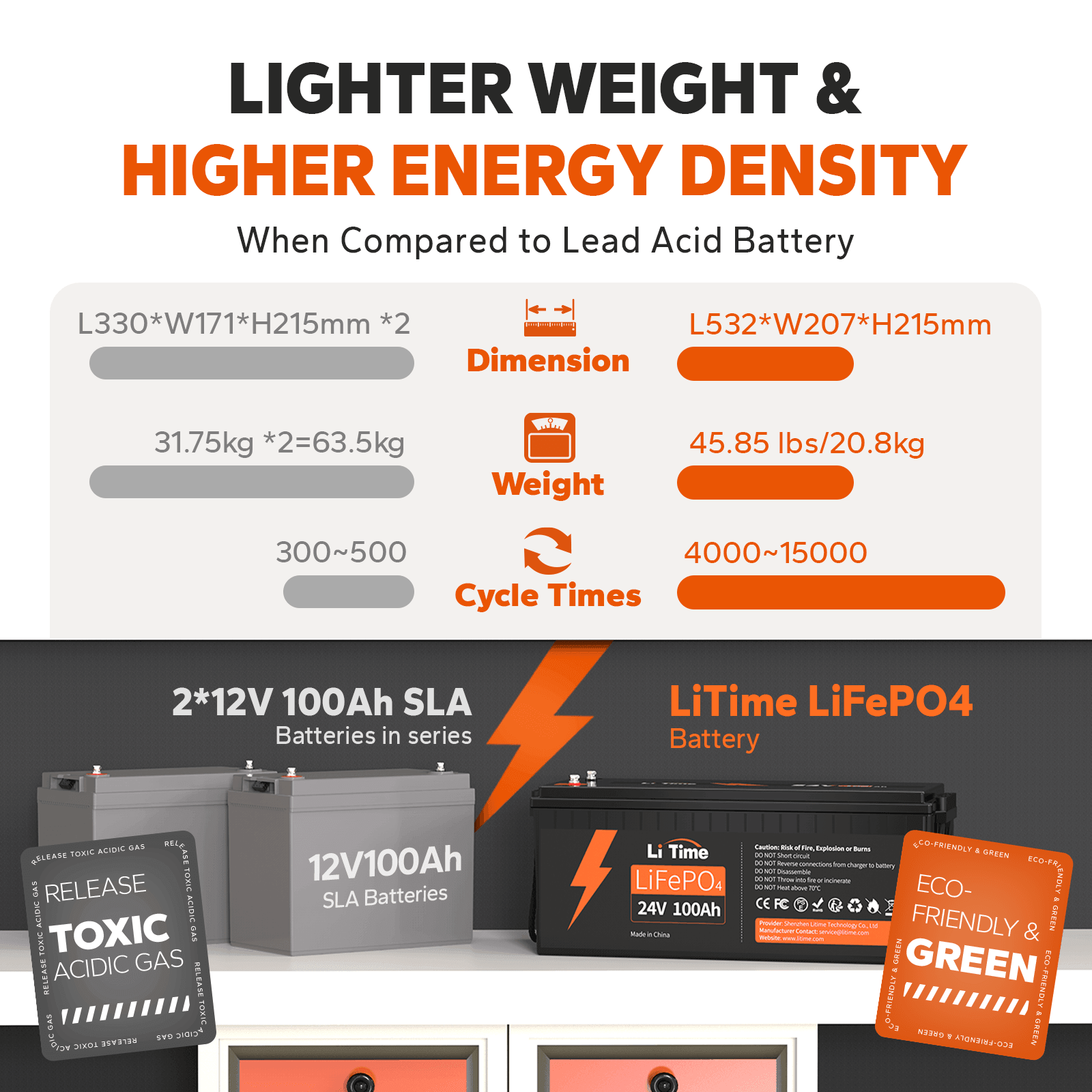

1/3 Light weight & Portable: LiTime 24V 100Ah LiFePO4 Battery weighs only 20.7kg for one unit, only 1/3 the weight of lead acid batteries, easy to install(L53.3 *W20.8 *H21.6cm). Energy density is 55.83Wh/lb (2560Wh/45.85lb=55.83Wh/lb), 3 times the energy density of lead-acid battery, which makes it a thumbs-up choice for RVs, Trolling Motors, Marine and Off-Grid Applications when mounting or mobility is in the consideration.

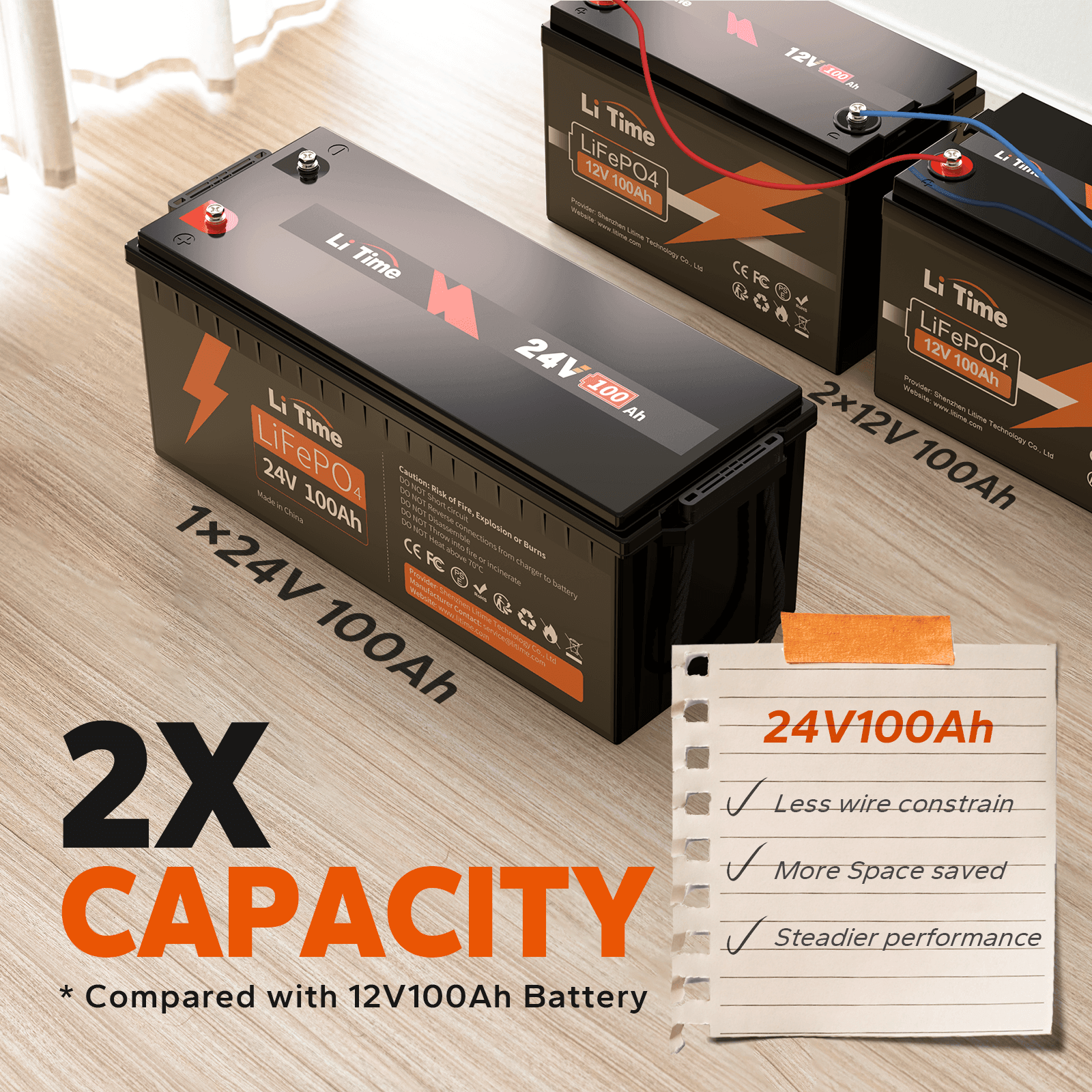

2.56kWh Higher Energy: A single LiTime 24V 100Ah lithium battery equals two 12V 100Ah lithium batteries. 24V higher voltage and 2.56kWh energy, supports up to 4P2S connection to make a 48V 400Ah battery bank of 20.48kWh energy, enabling you to build your battery system with easier operation and are perfect as backup power.

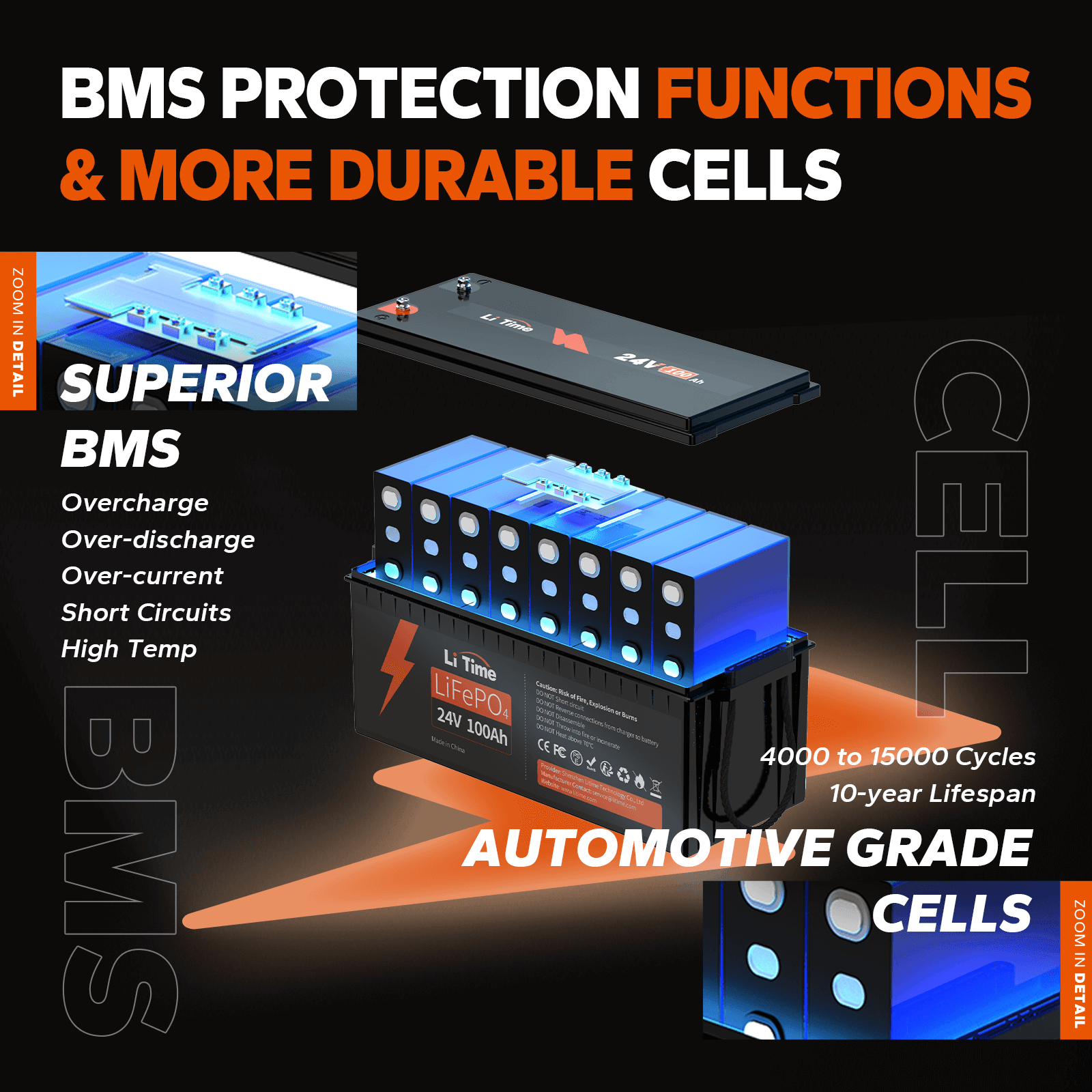

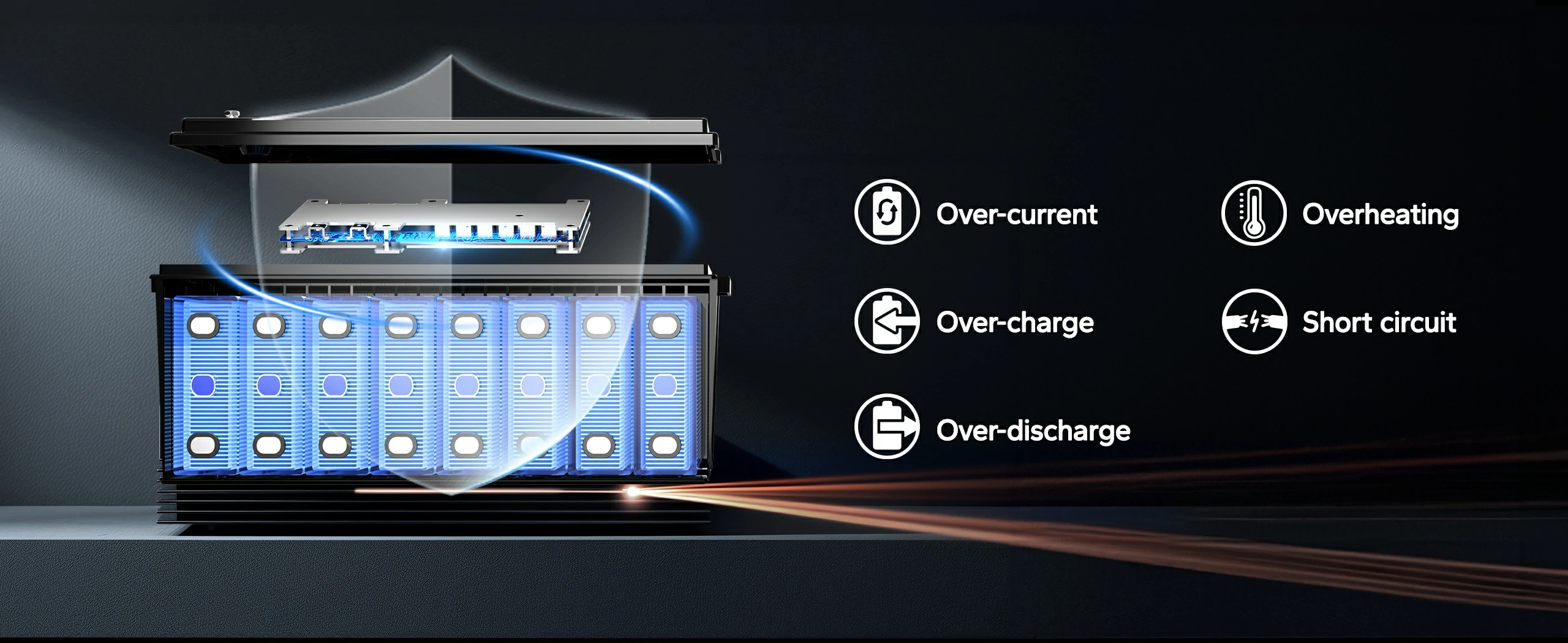

Strict Protection & Speedy Charging: LiTime LiFePO4 battery has built-in 100A BMS to protect it from overcharge, over-discharge, over-current, high temp and short circuits. Operating Temp: Charge: 0°C~50°C; Discharge: -20°C~60°C. Besides, a 29.2V 20A dedicated lithium charger is recommended, it will just cost you 5hrs to have your lithium battery fully charged.

2-5 Business Day Fast Delivery: LiTime Group is committed to providing you with satisfactory service. The 2-5 working day fast delivery for the battery will be shipped from local warehouse in NSW. (Generally, the delivery will take less than 5 days, a few distant cities will take 1-2 weeks.) Professional technical support and one on one customer service with quick feedback within 24 hours. If you have any questions, please feel free to contact us, we will do our best to help you.

Warm Tips for Battery Application: LiTime 24V 100Ah Lithium Battery is not suitable for running a golf cart, engine, or any device alike that will generate a high current the moment it is started.

Choose Products

Comparison

1 Pack

A$739.99 A$1,299.99

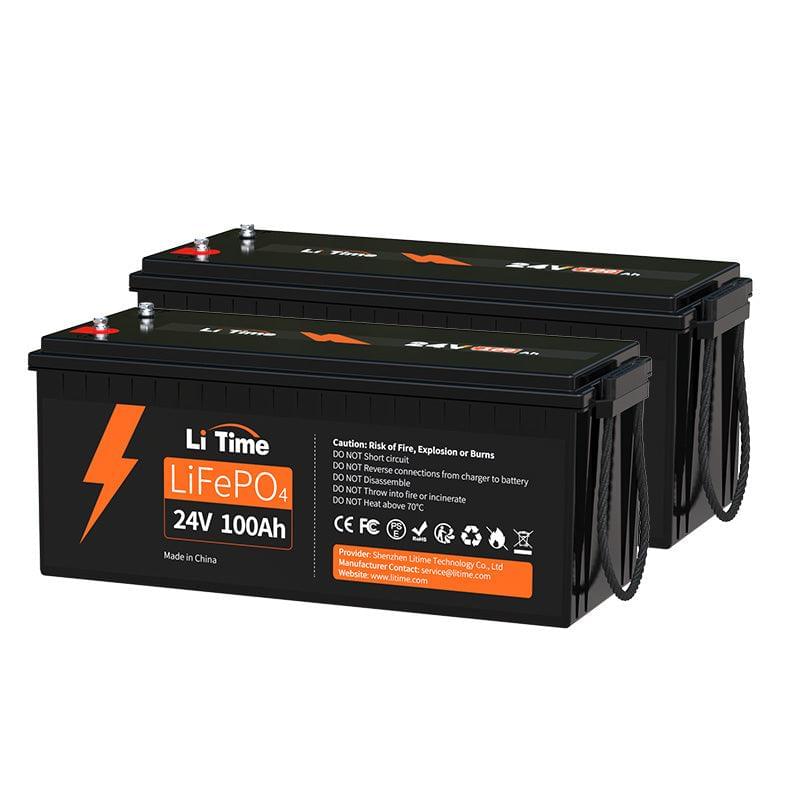

2 Pack

A$1,465.18 A$2,599.98

3 Pack

A$2,197.77 A$1,299.99

4 Pack

A$2,900.76 A$5,199.96

Quantity:

A$739.99

A$1,299.99

43% OFF

Add to Cart

5 Years Warranty

Backed up by techical support within 24hrs

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

24V 100Ah

A$739.99

A$1,299.99

Add to Cart

[{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319601942756,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery_d7542f8e-caeb-4ac5-8481-f9377686e47e.jpg?v=1723447450"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery_d7542f8e-caeb-4ac5-8481-f9377686e47e.jpg?v=1723447450","width":800},{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319602073828,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery2_cde8ad98-b76d-43d9-bce0-f52f6578e0a4.png?v=1723447450"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery2_cde8ad98-b76d-43d9-bce0-f52f6578e0a4.png?v=1723447450","width":1600},{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319602139364,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery3_d4093f4e-67d2-4bde-b009-307600295165.png?v=1723447450"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery3_d4093f4e-67d2-4bde-b009-307600295165.png?v=1723447450","width":1600},{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319602204900,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery5_079ae100-9eb8-42a2-bcc2-4b9f3debac4a.png?v=1723447450"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery5_079ae100-9eb8-42a2-bcc2-4b9f3debac4a.png?v=1723447450","width":1600},{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319602237668,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery6_5dee93c7-48d5-443a-bc77-9479ac0a165d.png?v=1723447450"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery6_5dee93c7-48d5-443a-bc77-9479ac0a165d.png?v=1723447450","width":1600},{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319602270436,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery4_bf0898d4-fc49-4a33-9c00-e8d869c9ca28.png?v=1723447450"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery4_bf0898d4-fc49-4a33-9c00-e8d869c9ca28.png?v=1723447450","width":1600},{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319602335972,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery7_6db56677-6048-41ea-81d8-e60ac716bda0.jpg?v=1723447450"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery7_6db56677-6048-41ea-81d8-e60ac716bda0.jpg?v=1723447450","width":1600},{"alt":"LiTime 24V 100Ah LiFePO4 Lithium Battery, Build-in 100A BMS, 2560Wh Energy - Litime-AU","id":54319602467044,"position":8,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery2_4183b060-bbaf-4b24-a48c-e98e6cf6335b.jpg?v=1723447450"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/au.litime.com\/cdn\/shop\/products\/LiTime24V100AhLiFePO4LithiumBattery2_4183b060-bbaf-4b24-a48c-e98e6cf6335b.jpg?v=1723447450","width":800}]

FEATURES SPECS FAQ REVIEWS

SPECS

BATTERY

Cell Type：

LiFePO4 Prismatic

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

25.6V

Rated Capacity：

100Ah

Energy：

2560Wh

Max. Expansion (Parallel & Series)：

4P2S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

100A

Max. Continuous Output Power：

2560W

Max. Continuous Charge Current：

100A

Max. Continuous Discharge Current：

100A

Max. Discharge Current 5 Seconds：

280A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

28.8V ± 0.4V

Recommend Charge Current：

20A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

Low-Temperature Protection：

N/A

Low-Temperature Charging Protection Auto Recovery：

N/A

SELF-HEATING

Heating Temperature：

N/A

Approx. Heating Time：

N/A

Required Minimum Charge Current for Heating Function：

N/A

OTHERS

Terminals：

M8 bolts

Weight Approx.：

20.6Kg

Size：

L53.2 * W20.7 * H21.5 cm

Housing Material：

ABS

Protection Class：

IP65

FAQ

Are LiTime LiFePO4 batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

Read on deep cycle vs starting batteries to learn more.

How many LiTime 24V 100Ah lithium Batteries can I connect at most?

The LiTime 24V batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 2 batteries in series, 4 in parallel, or 8 in the series-parallel connection.

What size of the trolling motor suits 24V 100Ah lithium battery?

70 ~ 100 lb

Can I charge LiTime LiFePO4 lithium batteries with solar panels?

Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 reliable ways to charge

1. Using Solar Panels

The LiTime 24V 100Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 600W solar panels. It may take more than one day to fully charge the battery by ≥600W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.

The Recommended Charging Voltage: 28.4V - 29.2V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 24V battery, it is recommended to use 29.2V battery charger.

The Recommended Charging Voltage: 28.4V - 29.2V.

The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 100Ah TM & 230Ah LiFePO4 batteries include low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

How do I store LiTime LiFePO4 lithium batteries?

It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH

REVIEWS

Been over two weeks and still waiting for battery

Great battery

24V Battery for the MinnKota in the boat. Works extremely well. Saved over 40kg in weight can’t fault it atm. Also very fast shipping
